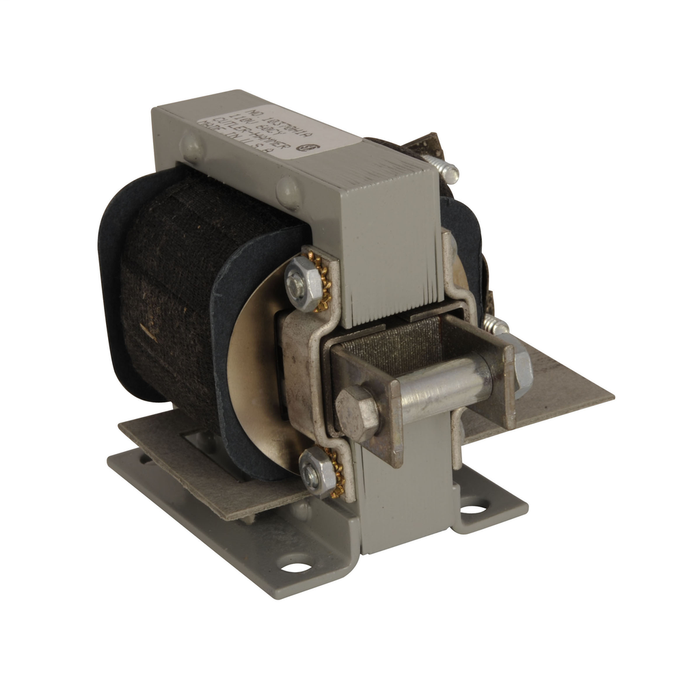

B-Line Continuous Duty AC Solenoid

B-Line Continuous Duty AC Solenoid

(No reviews yet) Write a Review

Model: 10370H256
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,027.83
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Continuous Duty AC Solenoid

10370H256 - spec sheet

Manufacturer Resources

Spec Sheet

Product Specs

Frequency Rating:
60 Hz
Full Load Current Range:
Inrush 10.4A/Sealed 1.07A
Magnetic Force Against Gravity:
6 lbs at 100% voltage, 4.25 lbs at 85% voltage
Magnetic Force Horizontal:
7 lbs at 100% voltage, 5.25 lbs at 85% voltage
Magnetic Force With Gravity:
11 lbs at 100% voltage, 6.25 lbs at 85% voltage
Notes:
Mounting of solenoids “with conduit box”—Size A are for wall mounting—Size B, C and D are for floor mounting.
Operation:
Pull type
Special Features:
With conduit box
Voltage Rating:
110V
Department:
Electrical
Product Size:
C
Product Length:
3.75 IN
Mounting Method:
Floor
Product Height:
6.13 IN
Product Width:
3.5 IN

B-LINE 10370H256 – Frequently Asked Questions

1) What voltage and frequency does the B-Line 10370H256 solenoid run on?
The 10370H256 is a 110V, 60 Hz AC solenoid. It draws 10.4A inrush and settles to 1.07A sealed, so size the branch circuit and any control contacts for that momentary inrush rather than the holding current.
2) Can I wall mount the 10370H256 solenoid, or does it have to sit on the floor?
Floor mounting. It is a Size C solenoid with a conduit box, and the conduit box versions are built so Size A is the wall mounting configuration while Sizes B, C and D are floor mounting. Turning a Size C on its side to a wall also changes which force rating applies, since the pull force differs with and against gravity.
3) Is this solenoid rated to stay energized all the time, or is it intermittent duty only?
It is a continuous duty AC solenoid, so it is intended to remain energized indefinitely at its 1.07A sealed current rather than being cycled on briefly like an intermittent duty coil. That is the right choice for hold open, clamping, or fail safe release applications where the coil is powered for the whole shift.
4) What footprint do I need to leave in the enclosure for this B-Line solenoid?
The unit measures 6.13 in height, 3.75 in length and 3.5 in width. Those figures are for the solenoid with its conduit box, so allow extra room beyond that for the conduit run and for the armature stroke.
5) Do I need a separate junction box to wire this solenoid?
No. The 10370H256 ships with a conduit box, so the coil leads terminate inside the box and you bring conduit straight to it. No extra field enclosure is needed for the connection point.
6) Will a 110V 60 Hz solenoid like this work on a 50 Hz supply?
This one is rated 60 Hz. AC solenoid impedance and holding force change with frequency, so a 60 Hz coil on a 50 Hz supply runs hotter and does not develop its rated pull. For 50 Hz work, specify a coil rated for it instead of derating this one.
7) What exact part number do I order for the B-Line Size C continuous duty AC solenoid with conduit box?
Order B-Line 10370H256. That is the single model covered, a Size C pull type continuous duty AC solenoid, 110V 60 Hz, supplied with a conduit box for floor mounting.
