Cooper Lighting SRP13WH LED Re...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$92.62

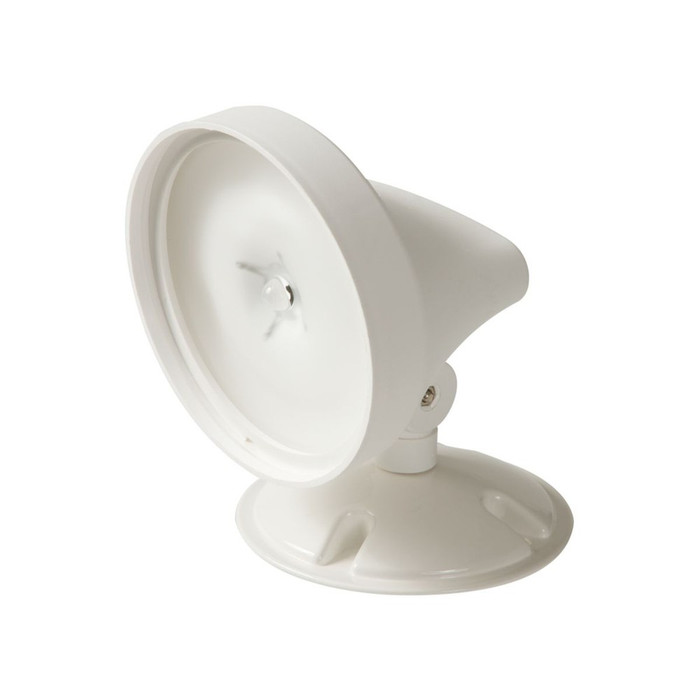

Cooper Lighting SRP13WH LED Remote Emergency Light Head, White Thermoplastic

Cooper Lighting SRP13WH LED Remote Emergency Light Head, White Thermoplastic

(No reviews yet) Write a Review

Model: SRP13WH

In Stock (leaves warehouse same day if ordered before 3pm ET)

$92.62
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Cooper Lighting SRP13WH LED Remote Emergency Light Head, White Thermoplastic

The Cooper Lighting SRP13WH is a single-head Sure-Lites SEL LED remote emergency light fixture engineered for UL924 compliant egress lighting systems. Built with flame and impact-resistant thermoplastic construction and finished in white, this remote head is designed for surface mounting on walls or ceilings and delivers 13 feet of coverage from its one LED lamp head. Universal input voltage from 4.8V through 12V lets this remote pair with compatible Sure-Lites emergency battery units, simplifying design and reducing the chance of ordering mistakes. The LED source eliminates ongoing lamp maintenance while providing the long-term reliability expected from Eaton/Cooper Lighting products.

Key Features

  • Coverage: This single-head remote is rated for 13 feet of coverage, supporting efficient egress path lighting layouts.
  • Durable Construction: SRP-series flame and impact-resistant thermoplastic housing in a white finish resists damage in commercial environments.
  • Lamp Head Adjustment: The lamp head adjusts 80 degrees from vertical with 358 degree rotation, allowing precise aiming of the emergency light beam.
  • LED Source: Long-life LED lamp technology (1.25W, 0.25A) eliminates the need for routine lamp replacement and maintenance.
  • Universal Voltage Input: Accepts 4.8V through 12V input, reducing design time and mistake-proofing the ordering process across compatible battery units.
  • Mounting: Designed for flush surface mount installation on walls or ceilings for flexible placement.
  • Temperature Rating: Rated for operation from -30C to 60C, suitable for a wide range of building environments.
  • Finish: Available in a clean white finish to blend with most ceiling and wall surfaces.

Certifications and Compliance

  • UL924 Compliant Emergency Egress System Component
  • Wet Location Rated as Standard

Technical Specifications

  • Country of Origin: CN
  • Case Quantity: 24
  • Lamp Type: LED
  • Pallet Quantity: 432
  • ARRA Compliant: No
  • Voltage Rating: 4.8 V thru 12 V
  • Amperage Rating: 0.25A
  • Wattage: 1.25W
  • Mounting: Surface Mount

Typical Applications

  • Commercial and Institutional Emergency Egress Lighting
  • Stairwells, Corridors, and Exit Pathways
  • Wet Location and Covered Outdoor Egress Routes
  • Retrofit and New Construction Life Safety Lighting Systems
  • Remote Head Expansion for Existing Sure-Lites Emergency Units

Why Cooper Lighting?

Cooper Lighting's Sure-Lites SEL LED remote series is built to reduce overall system cost and design time while meeting UL924 emergency egress requirements. With flame and impact-resistant thermoplastic construction, universal 4.8V-12V input, wet location rating as standard, and an LED source that eliminates lamp maintenance, the SRP13WH delivers the quality and reliability expected from Eaton and Cooper Lighting products in demanding life safety applications.

[{"name": "Product Type", "value": "LED Remote Emergency Light Head"}, {"name": "Product Material", "value": "Thermoplastic"}, {"name": "Product Color", "value": "White"}, {"name": "Voltage Rating", "value": "4.8V - 12V"}, {"name": "Amperage Rating", "value": "0.25A"}, {"name": "Wattage", "value": "1.25W"}, {"name": "Configuration", "value": "Surface Mount"}, {"name": "Country of Origin", "value": "China"}]

Manufacturer Resources

Spec Sheet

Product Specs

Voltage Rating:
4.8 V thru 12 V
Case Quantity:
24
Lamp Type:
LED
Pallet Quantity:
432
Mounting Method:
Surface Mount
Product Wattage:
1.25W
Arra Compliant:
No
Amperage Rating:
0.25A
list_batch:
COO-20260923
Department:
Electrical
Product Subgroup:
Emergency & Exit Lighting
Product Type:
Emergency Light Head
Product Group:
Lighting

Cooper Lighting SRP13WH – Frequently Asked Questions

1) Does the Cooper Lighting SRP13WH remote head have its own battery, or does it need a separate emergency unit?
The SRP13WH is a remote head only. It carries no battery and no transfer circuitry, so it has to be wired back to a compatible Sure-Lites emergency battery unit that supplies DC power when normal power drops. It accepts 4.8V through 12V DC input, which is why the same head works across a range of Sure-Lites units instead of forcing a voltage-specific part number. If you need a self-contained fixture with its own battery, this is the wrong item.
2) How much load does one SRP13WH add to my emergency battery unit?
Each head draws 1.25W at 0.25A. That is the figure to use when you total up remote heads against the capacity your Sure-Lites unit publishes for remote capability at its output voltage. Because the head is LED rather than incandescent, the draw per head is low enough that several typically fit on one unit, but the unit's rated remote capacity is the limit, not the head.
3) How far apart can I space SRP13WH remote heads along a corridor?
The single LED head is rated for 13 feet of coverage, so layouts are usually built around that figure per head along the egress path. Aiming helps: the lamp head tilts 80 degrees from vertical and rotates 358 degrees, so a head mounted off to one side of a corridor or at a stair landing can still be pointed down the path of travel. Final spacing still has to satisfy the footcandle levels your authority having jurisdiction enforces on the egress route.
4) Can the SRP13WH be installed outdoors under a canopy or in a damp stairwell?
Wet location rated as standard, and rated for operation from -30C to 60C, so covered outdoor egress routes, unheated stairwells, parking structures and loading areas are all within its stated range. The thermoplastic housing is flame and impact resistant, which is what keeps it serviceable in exposed commercial spots.
5) Can I add SRP13WH heads to an emergency unit that is already installed?
Yes, remote head expansion on existing Sure-Lites units is one of its stated applications. Two things govern it: the unit must have remote head capability with output in the 4.8V to 12V range, and it must have spare remote capacity left after the 1.25W, 0.25A this head draws. Wiring is low voltage DC from the unit's remote terminals out to the head.
6) Will the SRP13WH mount on a ceiling, or is it wall only?
Either. It is a flush surface mount fixture intended for walls or ceilings, so it goes onto a box or surface at the point you need light rather than requiring a recessed cavity. Ceiling mounting is where the 80 degree tilt earns its keep, since the head has to come off vertical to throw light down the corridor.
7) Does the SRP13WH need lamp replacement like the old incandescent remote heads?
No. It uses an LED source, so there is no routine lamp change in the maintenance cycle the way there was with sealed beam or wedge base incandescent remotes. For a facilities crew with dozens of remote heads, that removes the recurring lamp spend and leaves the monthly and annual function testing of the battery unit as the remaining task.
8) Is the SRP13WH a one-lamp or two-lamp remote head?
Single head, one LED lamp, covering 13 feet. If your layout calls for light thrown in two directions from one mounting point, such as a mid-corridor box or a stair landing where you need coverage up and down, you want a two-head remote from the same Sure-Lites SRP family instead of two single heads on separate boxes.
9) What exact part number and finish is this, and how does it ship for a large job?
Order it as Cooper Lighting (Eaton) Sure-Lites SRP13WH, white thermoplastic. Case quantity is 24 heads, and a full pallet is 432, which is the figure to work from when you are standardizing remote heads across a multi-building or multi-floor project. Country of origin is China, and it is not ARRA compliant, so it will not satisfy a federally funded job carrying ARRA domestic sourcing requirements.
