Corbin Russwin 1080 Grade 1 Se...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$259.55
$156.11

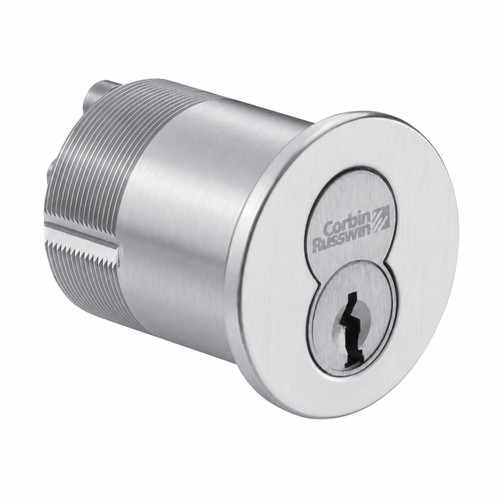

Copy of Corbin Russwin 1080 Series Mortise Cylinder, 1-1/2" LFIC Mortise Cylinder, 6-Pin, Schlage L9000 Mortise Locks, A03 Adams Rite Cam

Corbin Russwin 1080 Grade 1 Series Mortise Cylinder, 1-1/4" LFIC Mortise Cylinder, 6-Pin, Schlage L9000 Mortise Locks, A05 Adams Rite 4070 Cam

(No reviews yet) Write a Review

Model: CR1080-114-A05-6-L4-626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$259.55
$156.11
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin 114-A05 1080 Series Mortise Cylinder, 1-1/4" LFIC, 6-Pin with Adams Rite 4070 Cam

Professional-Grade Conventional Mortise Cylinder for Commercial Keying Systems

The Corbin Russwin 1080 Series Mortise Cylinder is a commercial-grade, 6-pin conventional mortise cylinder engineered to deliver precise, reliable key control across demanding access environments. Featuring a 1-1/4" (32mm) cylinder length and an A05 Adams Rite® 4070 cam configuration, this cylinder is designed for compatibility with Schlage L9000 mortise locks and all mortise locks and DL3000 deadlocks. As a non-handed replacement part, it integrates seamlessly into Corbin Russwin key systems where a properly designed master key system is essential to building security.

Professional Features & Benefits

  • Cylinder Length: 1-1/4" (32mm) cylinder length provides a precise fit for compatible mortise lock applications requiring this standard dimension.
  • A05 Adams Rite® 4070 Cam: Factory-configured with the A05 Adams Rite® 4070 cam for direct compatibility with Adams Rite 4070 series mortise lock applications.
  • 6-Pin Conventional Mortise Design: Classified as a Conventional Mortise cylinder, offering reliable pin tumbler security suitable for commercial master key systems.
  • Broad Lock Compatibility: Designed for use with all mortise locks and DL3000 deadlocks, including Schlage L9000 mortise locks, maximizing versatility across a wide range of hardware.
  • Non-Handed Configuration: Non-handed design simplifies ordering and installation, eliminating the need to specify door hand direction.
  • Keys Included: Comes with 2 keys, providing immediate operational readiness upon installation.
  • Cam Options Available: The 1080 Series platform supports a full range of cam configurations including A01 Cloverleaf, A02 Straight, A03 Adams Rite® MS, A04 DL4000 Series, A05 Adams Rite® 4070, A06 Schlage® Cloverleaf, A07 DL4100, A62 900 KRM Straight, A92, and A93 for flexible system planning.
  • Multiple Length Options in Series: The 1080 Series is available in lengths including 1-1/4" (32mm), 1-3/8" (35mm), 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm), and 2-1/2" (64mm) to accommodate varied door preparations.

Technical Specifications

  • Series: 1080
  • Product Group: Parts and Accessories
  • Product Subgroup: Cylinders
  • Product Type: Cylinders
  • Keys Included: 2
  • Commercial/Residential: Commercial
  • Subcategory: Cylinders
  • Application: All Mortise Locks and DL3000 Deadlocks
  • Parts and Accessories Type: Replacement Parts
  • Product Attribute: Parts and Accessories
  • Product Function: A05 Adams Rite 4070 Cam
  • Door Hand Direction: Non-Handed
  • Cylinder Classification: Conventional Mortise
  • Cylinder Length Specification: 1-1/4"
  • Product Category: Parts and Accessories
  • Department: Door Hardware

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties

Why Choose Corbin Russwin Quality?

Corbin Russwin 1080 Series Mortise Cylinders are built to commercial-grade standards, delivering dependable key control as part of a properly designed master key system. The variety of cam and length configurations available within the 1080 Series ensures the right balance of security, convenience, and expansion capability for every project. Engineered for demanding commercial applications, Corbin Russwin cylinders are trusted components in comprehensive building access control solutions.

Manufacturer Resources

Corbin Russwin Condensed Catalog

Product Specs

Series:
1080
Product Group:
Parts and Accessories
Product Subgroup:
Cylinders
Product Type:
Cylinders
Keys Included:
2
Commercial/Residential:
Commercial
Subcategory:
Cylinders
Application:
All Mortise Locks and DL3000 Deadlocks
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Function:
A05 Adams Rite 4070 Cam
Door Hand Direction:
Non-Handed
Cylinder Classification:
Conventional Mortise
Cylinder Length Specification:
1-1/4"
Product Category:
Parts and Accessories
Department:
Door Hardware

Corbin Russwin CR1080-114-A05-6-L4-626 – Frequently Asked Questions

1) What cylinder length is this Corbin Russwin 1080 mortise cylinder, and will it work on a thicker door prep?
This one is the 1-1/4 inch (32mm) length. Mortise cylinder length has to match the lock case and door thickness, so a deeper prep needs a longer body. The 1080 series runs 1-1/4, 1-3/8, 1-3/4, 2, 2-1/4 and 2-1/2 inches, so order up the series if 1-1/4 sits below the face of your trim.
2) Can I get this Corbin Russwin mortise cylinder cut to my building's existing key system?
Keyway is a selectable option on the 1080, and the range is wide: 27, 57, 59, 67, 77 and 98 families, the 252, 60, 70, 97, 99 keyways, AR, BL, BR, D1/D2, G, the H1 through H8 group, L1 through L4, and N1 through N28. Pick the keyway your Corbin Russwin system is already built on and the cylinder drops into the existing masterkey hierarchy.
3) What is a comparable mortise cylinder to the Corbin Russwin 1080 if I need a different keyway family?
The Corbin Russwin 1080 is a conventional mortise cylinder in a 1-1/4 inch length, supplied with 2 keys and available across Corbin Russwin keyways including 27, 57, 59, 67, 77 and the N-series. If the opening needs to key into a Schlage C system instead, the Detex MC65 is a mortise cylinder with a Schlage C keyway in a 1-1/8 inch length, 6-pin. Both are mortise-threaded cylinders; the difference is the key system they belong to and the body length, so confirm the length the lock case requires before substituting.
4) I need a cylinder for an Adams Rite MS deadlock but not in a Corbin Russwin key system - what else works?
The Corbin Russwin 1080 in the A05 configuration carries the Adams Rite 4070 cam and is intended for all mortise locks and DL3000 deadlocks. If you are not keying into a Corbin Russwin system, the Adams Rite 4036 is a five-pin mortise cylinder rated Grade 1 with a 1/2 inch minimum door thickness. The 1080 A05 is a 6-pin cylinder, so a master key system built on six pins will not carry over to the five-pin 4036.
5) We want interchangeable core so we can rekey in-house instead of the Corbin Russwin 1080 - what should we look at?
The 1080 is a conventional mortise cylinder, which means rekeying is a pinning operation rather than a core swap. For core-based key control, the BEST 1C Series standard 5-pin cylinder core or the BEST 1CB 150 Series interchangeable core cylinder let a control key pull the core, and the BEST 1CDF is a drill-resistant patented interchangeable core in 7-pin brass. Those are separate key systems from Corbin Russwin, so plan the changeover across the whole facility rather than door by door.
6) Do I have to specify a hand when ordering a Corbin Russwin 1080 mortise cylinder?
No. The 1080 mortise cylinder is non-handed, so the same part goes into a left or right hand opening. You only need to settle length, cam, keyway and finish.
7) What is the difference between this mortise cylinder and a rim cylinder like the Schlage 20-021?
A mortise cylinder threads into a mortise lock case and drives the lock through a cam, which is why the A05 Adams Rite 4070 cam matters on this one. A rim cylinder mounts through the door and drives an exit device or rim lock with a tailpiece instead. The Schlage 20-021 is a 6-pin rim cylinder with a vertical tailpiece cam and the 20-022 is the horizontal tailpiece version. If your device takes a tailpiece, a mortise cylinder will not work.
8) Can I use a rim cylinder instead of the Corbin Russwin 1080 mortise cylinder?
No - they are not interchangeable. The 1080 is a conventional mortise cylinder with a threaded body and an A05 Adams Rite 4070 cam. Rim cylinders such as the Schlage 20-021, a 6-pin rim cylinder with a vertical tailpiece cam, or the 20-022 with a horizontal tailpiece cam, mount through the door and drive a rim device by tailpiece rather than by cam in a mortise case. Choose by how the lock case is prepped, not by pin count.
9) For a glass storefront door with an Adams Rite deadlock, should I use the Corbin Russwin 1080 A05 or a cylinder pull?
They solve different problems. The 1080 A05 is a non-handed mortise cylinder with the Adams Rite 4070 cam that operates the lock. A cylinder pull adds a gripping surface plus the cylinder housing: the Adams Rite 4024 is a cylinder pull with trim plate mounting for MS1847 deadlock systems, the 4025 is a five-pin cylinder pull with through-screws for the MS1847, and the 4026 is a five-pin cylinder pull for 5017 wood door deadlocks. Use a pull when the narrow stile needs a handle at the cylinder; use the 1080 when the door already has its trim.
10) Is a key-in-knob or key-in-lever cylinder a substitute for the Corbin Russwin 1080?
No. The 1080 threads into a mortise lock case and drives it with the A05 Adams Rite 4070 cam. Key-in-knob and key-in-lever replacement cylinders such as the Kaba Ilco 1539 universal key-in-knob/lever cylinder, the Ilco 1579 for Sargent knobs and levers, or the Falcon A23161-05 G key-in-lever cylinder with a 6-pin G keyway seat inside the knob or lever assembly and use a tailpiece. They will not fit a mortise case prep.
11) Our exit devices take a full size interchangeable core - is the Corbin Russwin 1080 the right part for those?
The 1080 is a conventional mortise cylinder for mortise locks and DL3000 deadlocks, so it suits mortise-prepped openings. For rim exit devices set up for full size interchangeable core, the Schlage 20-057 is a 6-pin FSIC rim cylinder with a convertible tailpiece cam supplied with 2 keys, and the 20-057-C is a full size interchangeable core cylinder in the C keyway, 643E aged bronze. Keep the mortise openings on the 1080 and the FSIC rim openings on the matching core platform.
12) What finishes does the Corbin Russwin 1080 mortise cylinder come in for matching existing door hardware?
Seven finishes: 605 bright brass, 606 satin brass, 612 satin bronze, 613 satin bronze oil-rubbed, 619 satin nickel, 625 bright chrome and 626 satin chrome. For a building already standardized on satin chrome trim, 626 is the usual match.
13) Is the Corbin Russwin 1080 cylinder suitable for a school or hospital keying program?
It is a commercial-rated part sold as a replacement component, 6-pin, and it is intended to work inside a properly designed master key system. With 84 keyway options and seven finishes, it standardizes well across a campus where all the mortise openings need to sit under one hierarchy. Match cam and length per door and the keying stays uniform.
14) Will a residential deadbolt or handleset cylinder work in place of the Corbin Russwin 1080?
No. The 1080 is a commercial mortise cylinder supplied with 2 keys and available in finishes from 605 bright brass through 626 satin chrome. Cylinders like the Medeco 1012040, a 6-pin lazy motion rim cylinder for Kwikset single cylinder deadbolts, the Medeco 1065140 5-pin retrofit for Arrow JL interconnected locks and Emtek handlesets, or the Emtek CY4 cylinder are built for specific residential lock bodies and do not thread into a mortise case.
15) What do I use on a door that only needs a keyed appearance, not actual operation, when the 1080 is on the working doors?
The Corbin Russwin 1080 is a functioning 6-pin conventional mortise cylinder that operates the lock case. Where a door needs the look of a cylinder without a working keyway, the BEST 12E Series dummy rim cylinder with a 1-5/32 inch diameter fills a rim prep as a non-operating component. Match the finish to the working cylinders so the elevation reads consistently.
16) I need a replacement cylinder for a keyed deadbolt, not a mortise lock - what is the equivalent?
The Corbin Russwin 1080 A05 carries the Adams Rite 4070 cam for mortise lock cases. For deadbolt cylinder replacement, the Kaba Ilco 1549 Series is a key-in-deadbolt cylinder and the Ilco 1599 is a key-in-knob replacement cylinder, both listed with a deadbolt function. Those drop into the lock body they were designed around rather than a mortise case, so confirm which lock is actually on the door before ordering.
