Corbin Russwin 118F29-9 Grade 1 Exit Device Thimble Insert for Lever

Corbin Russwin 118F29-9 Exit Device Thimble Insert for Lever Trim

Commercial-Grade Replacement Insert for Exit Device Lever Trim

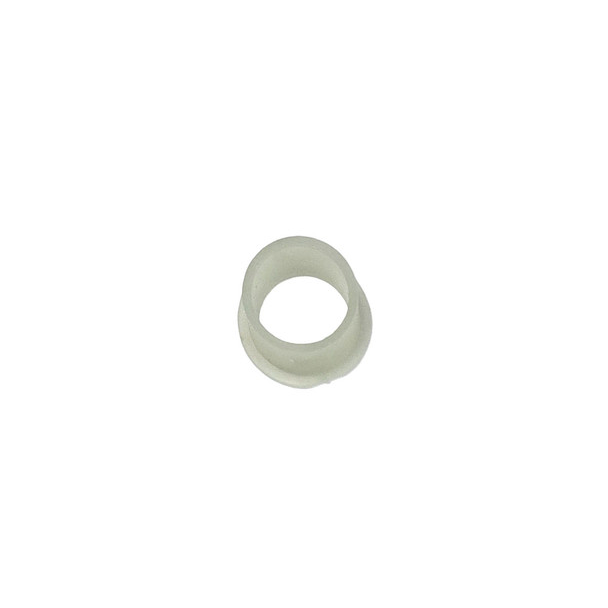

The Corbin Russwin 118F29-9 is a purpose-built Exit Device Thimble Insert designed for use with lever trim on commercial exit devices. Constructed from durable nylon, this insert is compatible with Corbin Russwin 810, 850, 855, and 859 Trim series, making it an essential replacement component for maintaining smooth and reliable lever operation in commercial door hardware applications. Designed for commercial-grade performance, this insert ensures proper fit and function within the lever trim assembly.

Professional Features & Benefits

• Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
• Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
• Non-handed device (except double cylinder and lever trim which are handed)
• Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
• Standard single-point 1/4-turn hex key dogging on panic devices
• Free Wheeling levers for vandal resistance on trim
• SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
• Electrified options including delayed egress, electric latch retraction, and electric dogging
• UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
• Full range of trim with Muséo® and Vineyard™ collections
• ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
• PathLite™ photoluminescent touchpad cover option available
• Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

• Grade: ANSI/BHMA A156.3 Grade 1
• Handing: Non-handed standard (lever trim and double cylinder devices are handed)
• Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
• Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
• Minimum Stile Width: 4-1/2" (114mm)
• Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
• Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
• Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
• Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
• Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
• Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
• Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
• Warranty: Five-year limited

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin has been a recognized leader in high-quality commercial-grade hardware for commercial and institutional facilities, offering ANSI/BHMA Grade 1 products across mortise locks, exit devices, door control, and electromechanical hardware. The 118F29-9 Thimble Insert reflects that same commitment to precision engineering, utilizing durable nylon construction to deliver consistent, reliable performance within compatible lever trim assemblies. Trust Corbin Russwin parts to maintain the integrity and dependability of your exit device hardware installations.
