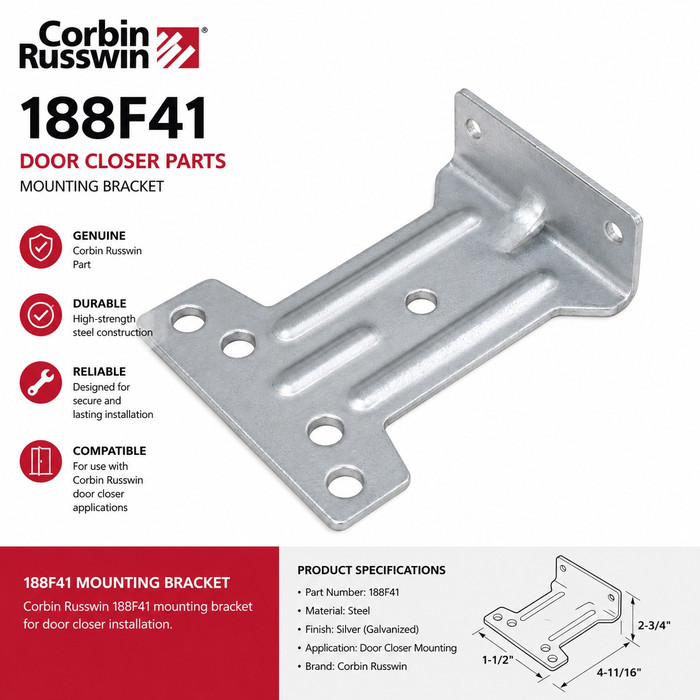

Corbin Russwin 188F41 Door Closer Parts

Corbin Russwin 188F41 Grade 1 Door Closer Parts

(No reviews yet) Write a Review

Model: 188F41-689
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$41.83
$34.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin 188F41-689 Parallel Arm Bracket for Door Closer Conversion

Commercial-Grade Door Closer Conversion Bracket with Included Hardware

The Corbin Russwin 188F41-689 is a professional-grade parallel arm bracket designed to convert a regular arm door closer to a parallel arm configuration. Standard with parallel arm mounting, this replacement part is ideal for commercial door control applications where a parallel arm installation is required. Each unit is packed with five screws and a 691F78 spacer, providing all necessary hardware for a complete conversion right out of the box.

Professional Features & Benefits

  • Cast aluminum body with Cam-Motion™ technology for easy opening and secure closing
  • Adjustable spring size 1 through 6 — accommodates door weight up to 250 lbs.
  • Non-handed — single model supports up to four mounting positions
  • Unique spline arm with multiple indexing options for standard and special applications
  • Push and pull side installation, door or frame mounted
  • Forward-facing adjustable closing and latching speed valves
  • Backcheck standard on all units
  • Hold open available: specify DC5200 x A1
  • 1/2" vertical adjustment for flexible installation
  • ANSI/BHMA A156.4 Grade 1 certified; ADA compliant; TAA compliant
  • UL10C positive pressure up to 3 hours; UL-cUL listed
  • 30-year limited warranty

Technical Specifications

  • Grade: ANSI/BHMA A156.4, Grade 1
  • Body: Cast aluminum, cam and roller design
  • Spring Power: Adjustable sizes 1 through 6
  • Door Weight: Up to 250 lbs.
  • Door Thickness: 1-3/4" (44mm) standard
  • Opening Range: Pull side: 140°; push side: 110°
  • Maximum Interior Door Width (Recommended): 54" (137mm)
  • Valves: Independent adjustable closing speed and latching speed; standard backcheck
  • Hold Open: Available (specify A1 arm); not for fire doors
  • Mounting: Pull side door or frame mounted; push side door or frame mounted
  • Certifications: ANSI/BHMA A156.4 Grade 1; ADA/ANSI A117.1; UL10C (3 hr.); UL-cUL; TAA
  • Warranty: 30-year limited

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin door closer parts and accessories are engineered to commercial-grade standards, delivering dependable performance in high-traffic environments where reliable door control is essential. The 188F41-689 parallel arm bracket is a purpose-built replacement component that includes all necessary hardware—five screws and the 691F78 spacer—for a complete and proper installation. Trusted by commercial door hardware professionals, Corbin Russwin components are designed to integrate seamlessly with existing door control systems.

Manufacturer Resources

Corbin Russwin Condensed Catalog

Product Specs

Subcategory:
Parts and Accessories
Product Group:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Brackets
Features:
Converts Regular Arm to Parallel Arm Closer
Commercial/Residential:
Commercial
Parts and Accessories Type:
Replacement Parts
Product Function:
Parallel Arm Bracket
Mounting Method:
Parallel Arm
Product Category:
Door Controls
Included Components:
(5) Screws and 691F78 Spacer
Department:
Door Hardware

Corbin Russwin 188F41-689 – Frequently Asked Questions

1) What does the Corbin Russwin 188F41 bracket actually do on a door closer?
It converts a regular arm door closer to a parallel arm installation. The regular arm mounts on the pull side with the arm projecting out from the door; the parallel arm bracket lets the closer body mount on the push side with the arm running flat along the face of the door. That is the setup most commercial jobs want where the closer would otherwise stick out into the opening or take abuse from traffic.
2) Does the Corbin Russwin 188F41 parallel arm bracket come with the mounting screws, or do I need to order those separately?
All the hardware ships with it. Each 188F41 is packed with five screws and a 691F78 spacer, so the conversion is complete out of the box. You do not need to source a separate spacer or fastener pack to finish the install.
3) Is the 188F41 a complete door closer or just a bracket?
Just the bracket. The 188F41-689 is a replacement part for a Corbin Russwin door closer, not a closer assembly. You need an existing closer body and arm on the door; this bracket plus the included spacer and screws is what changes that closer over to a parallel arm mounting.
4) Will a parallel arm conversion change how far my door opens?
Yes, and it is worth checking before you convert. On the Corbin Russwin closer this bracket serves, the pull side (regular arm) setup allows up to 140 degrees of opening, while push side parallel arm mounting allows 110 degrees. If the opening needs to swing back flat against a wall or you have a door stop set beyond 110 degrees, plan for the reduced range.
5) Can I use a parallel arm conversion on a fire rated door?
The closer platform is UL10C positive pressure listed up to 3 hours and UL-cUL listed, so parallel arm mounting itself is fine on a rated opening. What you cannot do is put a hold open arm on a fire door. Hold open is available by specifying the A1 arm, but it is not for fire doors, where the closer must self-close every time.
6) Is this closer setup ANSI Grade 1 and ADA compliant for a school or healthcare facility?
Yes on both. The closer is certified to ANSI/BHMA A156.4 Grade 1, meets ADA/ANSI A117.1, and is TAA compliant, which is what institutional and government spec writers usually need on the submittal. Grade 1 is the top commercial durability tier for door closers.
7) What door thickness and weight does the closer this bracket mounts to handle?
The Corbin Russwin closer family the 188F41 bracket is used with is built for 1-3/4 inch (44mm) doors as standard, with adjustable spring sizes 1 through 6 handling doors up to 250 lbs. Recommended maximum interior door width is 54 inches. If your opening is a heavier or wider exterior door, size the spring toward the top of that range.
8) Do I need a left-hand and right-hand version of this parallel arm bracket?
No. The closer system is non-handed, with a single model supporting up to four mounting positions, so one 188F41 bracket covers either hand. For a property manager stocking spares across a building, that means one part number instead of two.
9) After I convert to parallel arm, can I still adjust closing and latching speed?
Yes. Closing speed and latching speed are independently adjustable on forward-facing valves, and backcheck is standard on every unit. Forward-facing valves matter on a parallel arm install because the closer body sits on the push side against the door, and you want to reach the adjustments without pulling the cover off awkwardly.
10) My closer sits too low or too high relative to the frame stop. Does the parallel arm mounting give me any adjustment?
There is 1/2 inch of vertical adjustment built into the mounting, which covers most of the small misalignments you hit when reusing existing holes or working around a soffit condition. Combined with the included 691F78 spacer, that usually gets the arm sitting square without redrilling the door.
11) What finish does the Corbin Russwin 188F41 bracket come in?
689 anodized aluminum, which is the standard painted-aluminum look that matches the majority of commercial closer bodies and arms in the field. It is the single finish offered on the 188F41, so if your openings are standardized on 689 closers the bracket will blend in without repainting.
