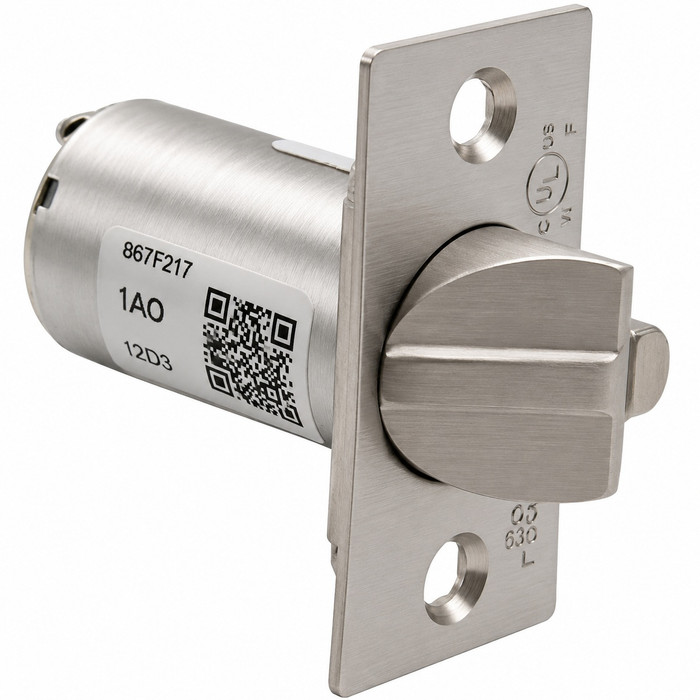

Corbin Russwin 2-3/4 Spring Latch, Plain, Square Corner 1-1/8in Front

Corbin Russwin 2-3/4 Spring Latch, Plain, Square Corner 1-1/8in Front

(No reviews yet) Write a Review

Model: 867F20-630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$123.34
$59.09
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin 867F20 Spring Latch with Square Corner Faceplate and 2-3/4" Backset

Commercial-Grade Springlatch Replacement Component for Mortise Locksets

The Corbin Russwin 867F20 is a commercial-grade springlatch designed as a precision parts and accessories component for compatible mortise lockset applications. Featuring a square corner faceplate with a 1-1/8" (29mm) front width and a 2-3/4" (70mm) backset, this springlatch delivers reliable latching performance in demanding commercial door hardware installations. Engineered to meet the exacting standards of the Corbin Russwin ML2000 Series Mortise Locksets, it is an ideal replacement or service part for facilities requiring consistent, dependable operation.

Professional Features & Benefits

  • Square Corner Faceplate: Square corner front design ensures a clean, professional fit in standard mortise door preparations for a finished appearance.
  • Precise Front Width: 1-1/8" (29mm) front width provides accurate fitment within mortise lock pockets, maintaining proper door edge clearance and alignment.
  • 2-3/4" Backset: Standard 2-3/4" (70mm) backset accommodates the most common commercial door configurations, simplifying replacement and service.
  • Springlatch Mechanism: Automatic spring-actuated latch bolt operation ensures smooth, self-latching door closure without requiring manual engagement.
  • Commercial-Grade Construction: Built to the quality standards of Corbin Russwin commercial door hardware, suitable for high-traffic institutional and commercial environments.
  • ML2000 Series Compatibility: Designed for use with Corbin Russwin ML2000 Series Mortise Locksets, ensuring proper fit and function as a genuine replacement component.
  • Parts & Accessories Classification: Catalogued as a verified parts and accessories component within the Corbin Russwin mechanical locks product line for straightforward procurement and service.

Technical Specifications

  • Product Group: Parts and Accessories
  • Product Subgroup: Parts and Accessories
  • Product Type: Latch
  • Commercial/Residential: Commercial
  • Subcategory: Parts and Accessories
  • Product Attribute: Parts and Accessories
  • Faceplate Style: Square Corner
  • Product Model: 867F20
  • Product Category: Mechanical Locks
  • Backset (Distance): 2-3/4"
  • Department: Door Hardware
  • Latchbolt Type Specification: Springlatch

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities

Why Choose Corbin Russwin Quality?

Corbin Russwin door hardware components are engineered to deliver professional-grade reliability in commercial applications, with each part manufactured to precise dimensional tolerances including the 1-1/8" (29mm) front width and 2-3/4" (70mm) backset specifications required for proper mortise lockset function. As a designated parts and accessories component within the ML2000 Series Mortise Lockset line, the 867F20 springlatch ensures seamless service and replacement compatibility. Corbin Russwin’s commitment to commercial-grade quality makes this latch a trusted choice for facility managers, locksmiths, and door hardware professionals.

Product Specs

Product Group:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Latch
Commercial/Residential:
Commercial
Subcategory:
Parts and Accessories
Product Attribute:
Parts and Accessories
Faceplate Style:
Square Corner
Product Model:
867F20
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware
Latchbolt Type Specification:
Springlatch

Corbin Russwin 867F20-630 – Frequently Asked Questions

1) What is the difference between a square corner and a beveled or radius corner latch front?
It is about the mortise pocket in the door edge. The 867F20 has a square corner front, so it drops into a pocket routed with square corners, the usual prep on a hollow metal frame door. A door prepped with radius corners will show a gap at the corners of a square front, and the fix is a matching radius front latch rather than this one. Check the corners of the front on the latch you are pulling out before you order.
2) My door is prepped at 2-3/8 backset. Can I use this latch?
No. The 867F20 is built for a 2-3/4 inch backset, which is the standard commercial mortise dimension. A 2-3/8 backset opening needs the shorter latch unit for that backset; forcing this one in will leave the bolt sitting wrong relative to the lock case and the strike.
3) Is a spring latch the right choice, or do I need a deadlatch or deadbolt?
A springlatch like the 867F20 self-latches when the door swings shut but the bolt can be depressed from the outside, so on an exterior or secured opening you want a deadlocking latch or a separate deadbolt instead. Use the plain springlatch on interior and passage openings where self-closing convenience matters more than resisting a shim. If you need a deadbolt function, the Codelocks Replacement Dual Backset Deadbolt is a deadbolt-function replacement bolt ZenSupply carries.
4) Will a Codelocks replacement dual backset deadbolt work as a substitute for the Corbin Russwin 867F20 spring latch?
No. The 867F20 is a springlatch, meaning the latchbolt is spring actuated and self-latches when the door closes, and it is a service component for Corbin Russwin ML2000 Series mortise locksets. The Codelocks replacement dual backset deadbolt is a deadbolt function part, which throws only when it is manually operated and does not self-latch on closing. If the opening needs a bolt that catches every time the door swings shut, the springlatch is the correct part; a deadbolt is a different function entirely, not a drop-in for it.
5) What finishes does the Corbin Russwin 867F20 spring latch come in?
Four: 612 Satin Bronze, 613E Dark Oxidized Satin Bronze Equivalent, 630 Satin Stainless Steel, and BSP Black Suede Powder Coat. Since only the front shows on the door edge, match it to the existing lock trim, 630 with satin stainless or 626-style hardware, 612 or 613E on bronze openings, BSP on blackened hardware.
6) Can I replace just the latch instead of the whole mortise lock body?
Yes, that is what the 867F20 is for. It is a service latch unit for ML2000 mortise locksets, so a worn or damaged latch can be swapped without pulling the lock case, the cylinder, or the trim off the door. Cheaper and faster than a full lockset, and keeps the keying untouched.
7) Will the 867F20 latch into my existing mortise strike?
In an ML2000 opening, yes. The latch keeps the same 2-3/4 inch backset and 1-1/8 inch front as the unit it replaces, so the bolt lands in the same place on the frame and the existing mortise strike stays put. No frame work is needed on a like-for-like swap.
8) I need a latch with a 2-3/4 inch backset and a square corner front for a commercial mortise lock - is the Corbin Russwin 867F20 the right choice over a deadbolt replacement part?
For that opening, yes. The 867F20 carries a 2-3/4 inch backset with a 1-1/8 inch square corner front and is built as a commercial springlatch for Corbin Russwin ML2000 Series mortise locksets, available in 612 satin bronze, 613E dark oxidized satin bronze equivalent, 630 satin stainless steel, and BSP black suede powder coat. The Codelocks replacement dual backset deadbolt is a deadbolt part rather than a springlatch, so it addresses a locking function rather than the self latching bolt a mortise lockset uses for everyday passage.
9) Is the 867F20 latch suitable for a high traffic building like a school or hospital?
It is a commercial component, and the ML2000 mortise line it serves is used in office buildings, schools, healthcare facilities, retail, government buildings, and multi-tenant residential. For a facility standardizing on ML2000 locks, stocking this latch in the building's finish covers the common latch failure without touching the lock bodies.
