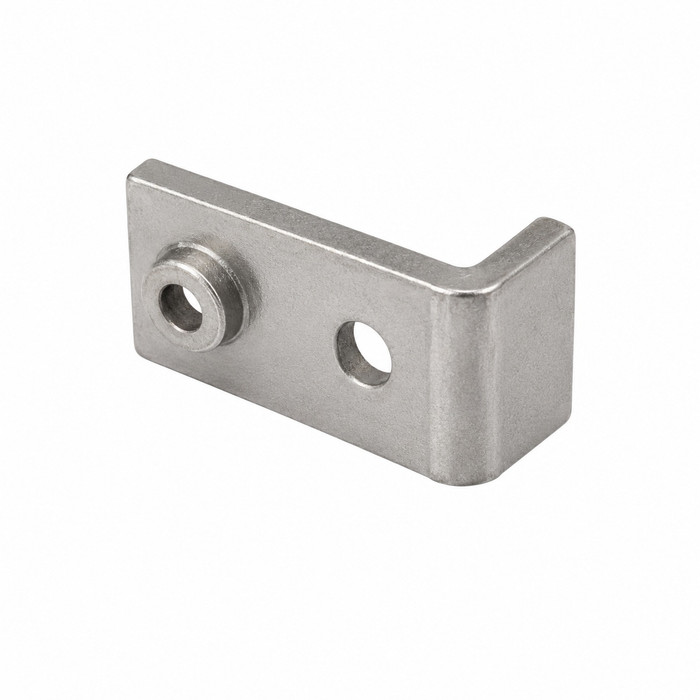

Corbin Russwin 404F86-8 ML2000 Hub Alignment Bracket

Corbin Russwin 404F86-8 Grade 1 ML2000 Hub Alignment Bracket

(No reviews yet) Write a Review

Model: 404F86-8

In Stock (leaves warehouse same day if ordered before 3pm ET)

$16.11
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin 404F86-8 ML2000 Hub Alignment Bracket for Mortise Lock

Precision Replacement Component for ML2000 Series Mortise Locksets

The Corbin Russwin 404F86-8 ML2000 Hub Alignment Bracket is a genuine replacement part designed specifically for use with the ML2000 Mortise Lock series. This commercial-grade component ensures proper hub alignment within the mortise lock assembly, supporting reliable and consistent lock operation. Sourced directly from Corbin Russwin, this bracket is engineered to meet the exact tolerances required by the ML2000 platform for dependable performance in commercial door hardware applications.

Professional Features & Benefits

  • ANSI/BHMA Grade 1 mortise lock per A156.13 Series 1000, Operational and Security Grade 1
  • UL Cycle above and beyond: 14.5 Million Cycles (Verification ID: V875753)
  • Patented Quick Reversible latchbolt — reverse handing without disassembling the lock case
  • Multi-function capability: 12 functions configurable from one ML2054 lockbody
  • Heavy-gauge steel lockcase 5-7/8" x 4" x 15/16"; 1" stainless steel deadbolt, 1" throw
  • 3/4" (19mm) throw anti-friction two-piece latchbolt requires less force to close
  • Wide variety of trim designs including Muséo®, Vineyard™, Behavioral Health (BHSS/BLSS)
  • Status indicator options for locked/unlocked visibility (sectional and escutcheon trim)
  • Motorized Electric Latch Retraction (MELR) available for ML20900 series
  • Thru-bolted trim designs for proper alignment and increased security
  • Can be used with new or existing Corbin Russwin key systems; accepts most other manufacturers' cylinders
  • UL/cUL listed, UL10C positive pressure; 3-hour fire door up to 4' x 10' single or 8' x 10' pair
  • Ten-year mechanical warranty; five-year MELR; two-year electrical

Technical Specifications

  • Grade: ANSI/BHMA A156.13 Series 1000, Operational and Security Grade 1
  • Handing: Handed; quick reversible — re-handed without disassembling the lock case
  • Door Thickness: 1-3/4" (44mm) standard; optional thicknesses available
  • Backset: 2-3/4" (70mm)
  • Lockcase: Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm)
  • Armored Front: Wrought brass, bronze, or stainless steel, 8" x 1-1/4"
  • Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" x 1" x 3/4" (19mm) throw
  • Auxiliary Latchbolt: 9/16" (14mm) effective throw; deadlocking
  • Deadbolt: One-piece stainless steel, 19/32" x 1-1/4" x 1" (25mm) throw
  • Strike: Wrought brass, bronze, or stainless steel, ANSI straight lip, 4-7/8" x 1-1/4" x 1-1/8" lip to center
  • Cylinder: Brass, 6-pin L4 keyway, 0-bitted standard
  • Spacing: C. to c. knob/lever to cylinder: 3-5/8" (92mm); knob/lever to thumbturn: 2-7/16" (62mm)
  • Certifications: ANSI/BHMA A156.13 Grade 1; UL/cUL UL10C 3-hour positive pressure; ADA A117.1; California State Fire Marshal; Windstorm/Hurricane certified
  • Warranty: Ten-year mechanical; five-year MELR; two-year electrical

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin lock parts and accessories are manufactured to precise commercial-grade standards, ensuring reliable integration with the ML2000 Mortise Lock series. The 404F86-8 Hub Alignment Bracket delivers the exact fit and function required to restore and maintain proper lock operation in demanding commercial environments. Trust Corbin Russwin genuine replacement components for professional door hardware maintenance and repair.

Product Specs

Product Group:
Lock Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Hub Alignment Bracket
Commercial/Residential:
Commercial
Subcategory:
Parts and Accessories
For Use With:
ML2000 Mortise Lock
Product Category:
Mechanical Locks
Department:
Door Hardware

Corbin Russwin 404F86-8 – Frequently Asked Questions

1) What is the Corbin Russwin 404F86-8 and which locks does it go in?
The 404F86-8 is a hub alignment bracket, an internal service part for the Corbin Russwin ML2000 Series mortise lock. It holds the hub in correct position inside the lock case so the knob or lever spindle turns true. It is not a complete lockset and it is not trim: if the whole lockbody is worn or damaged, you need an ML2000 lockbody, not this bracket.
2) My lever sags or feels sloppy on a Corbin Russwin ML2000 mortise lock. Is the hub alignment bracket what I need?
A sloppy or drooping lever on an ML2000 usually traces back to hub alignment inside the case, and the 404F86-8 bracket is the part that keeps the hub positioned for consistent operation. Before ordering, rule out the simpler causes: loose thru-bolted trim (ML2000 trim is thru-bolted specifically to hold alignment) and a worn spindle. If the trim is tight and the lever still drops, the internal bracket is the next thing to replace.
3) Will this bracket fit ML2000 locks on doors of any thickness or backset?
It is an internal case component, so the door itself does not affect fit. What matters is that the lock is an ML2000: the case is heavy-gauge steel at 5-7/8 x 4 x 15/16 inches with a 2-3/4 inch backset, standard on 1-3/4 inch doors with optional thicknesses available. If the mortise pocket in your door holds a case of other dimensions, it is not an ML2000 and this bracket is the wrong part.
4) I manage a building with a mix of Corbin Russwin mortise locks. How do I confirm mine are ML2000 before ordering this bracket?
Pull one lock and check the case and front. An ML2000 case measures 5-7/8 x 4 x 15/16 inches with an 8 x 1-1/4 inch armored front, a 3/4 inch throw two-piece anti-friction latchbolt, a 9/16 inch deadlocking auxiliary latch, and on deadbolt functions a 1 inch throw stainless deadbolt. Center to center from knob or lever to cylinder is 3-5/8 inches, and to thumbturn 2-7/16 inches. Match those and the 404F86-8 applies across the fleet.
5) Does replacing the hub bracket change the handing of an ML2000 mortise lock?
No. Handing on the ML2000 is set by its patented quick reversible latchbolt, which is re-handed without disassembling the lock case. The 404F86-8 bracket is a hub component and does not determine hand. If your problem is a wrong-hand latch, re-hand the latchbolt instead of buying parts.
6) Is this a genuine Corbin Russwin OEM part or an aftermarket bracket?
Genuine Corbin Russwin, part number 404F86-8, made to the tolerances the ML2000 platform requires. For an ANSI/BHMA A156.13 Grade 1 lock that is also UL/cUL listed for 3-hour positive pressure fire doors, OEM internals matter: substituting non-original parts inside a fire-rated lock case can compromise the listing on that opening.
7) Does this bracket work in electrified ML2000 locks such as the MELR versions?
The bracket is an ML2000 Series hub part, and the electrified ML20900 series with Motorized Electric Latch Retraction is built on the same ML2000 platform. On any electrified lock, isolate power before opening the case. Note that MELR involves motor and wiring assemblies that this mechanical bracket has nothing to do with, so a latch that will not retract on command is an electrical fault, not a hub alignment issue.
8) Can I use this part on a residential mortise lock?
No. The 404F86-8 is a commercial part for the Corbin Russwin ML2000 Grade 1 mortise lock, the type used in offices, schools, healthcare, retail, industrial buildings, multi-tenant residential common areas, and government facilities. Residential mortise locks use entirely different internals.
