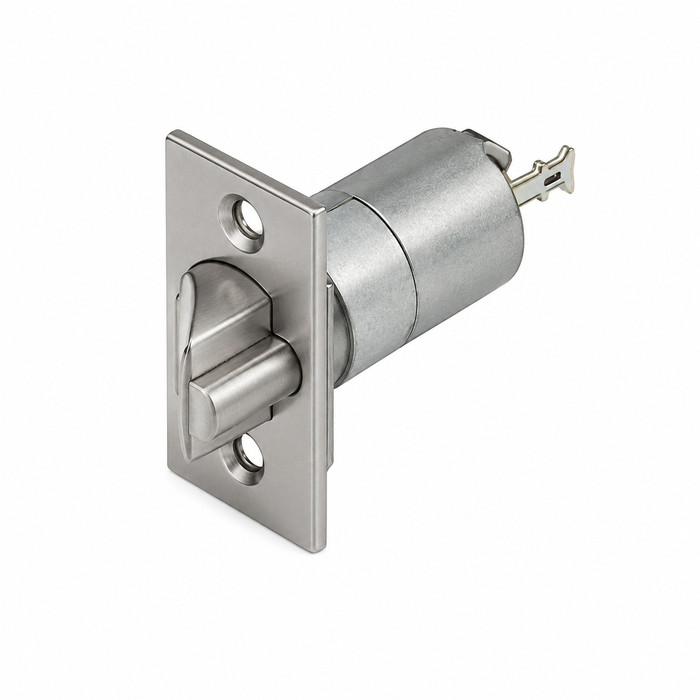

Corbin Russwin 586F18 - CL3300 2-3/4 Inch Backset Throw-Off Latch, Square Corner, 1-1/8" Width

Corbin Russwin 586F18 Grade 1 - CL3300 2-3/4 Inch Backset Throw-Off Latch, Square Corner, 1-1/8" Width

(No reviews yet) Write a Review

Model: 586F18-626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$141.57
$116.97
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin 586F18 CL3300 Throw-Off Latch Backset, 2-3/4" Backset, Square Corner, 1-1/8" Width, Field Reversible

Commercial-Grade Cylindrical Lock Replacement Backset for CL3500/CL3800 Series

The Corbin Russwin 586F18 is a precision-engineered throw-off latch backset designed for use with the CL3500/CL3800 Series cylindrical locksets. Featuring a 2-3/4" backset with a square corner faceplate and a 1-1/8" width, this replacement part delivers reliable latch performance in demanding commercial environments. The field-reversible door hand direction ensures straightforward adaptation to virtually any door configuration without the need for additional components.

Professional Features & Benefits

  • Grade 1 cylindrical lockset per ANSI/BHMA A156.2 Series 4000, Grade 1
  • Lever Release™ design for vandal resistance — outside lever rotates freely when locked
  • EZ-Install components significantly reduce installation time
  • Independent return springs prevent lever sag
  • 4 solid cast lever options (Armstrong, Newport, Princeton, Frascati)
  • Anti-rotational through-bolts at 6 and 12 o'clock positions
  • Accommodates 6 or 7-pin conventional cylinders and all keying levels
  • CL3352 Classroom Intruder function: double-cylinder lockset, always-free egress
  • Available with MicroShield® antimicrobial coating (suffix option code "C")
  • CL33900 electrified option: fail safe and fail secure, 12 or 24VAC/VDC
  • ElectroLynx® 8-pin connector on all electrified products
  • Seven-year limited warranty (two-year for electrified)

Technical Specifications

  • Grade: ANSI/BHMA A156.2 Series 4000, Grade 1
  • Handing: Non-handed (except FZD trim)
  • Door Thickness: 1-3/4" (44mm) 2" (51mm) standard; optional over 2" 2-1/4" (57mm)
  • Backset: 2-3/4" (70mm) standard; optional 3-3/4" (95mm) and 5" (127mm)
  • Latchbolt: Stainless steel, 1/2" (13mm) throw; optional 3/4" (19mm) fire latch
  • Auxiliary Latchbolt: Deadlocking — prevents manipulation when door is closed
  • Lock Chassis: Steel, zinc dichromated for corrosion resistance
  • Front: Wrought brass, bronze, or stainless steel, 2-1/4" x 1-1/8"
  • Strike: Wrought brass or stainless steel ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" lip to center
  • Cylinder: Brass, 6-pin L4 keyway, 0-bitted standard
  • Electrified Voltage: 12VAC/DC or 24VAC/DC (CL33900 Series)
  • Electrified Current: 250mA @ 12VAC/VDC; 150mA @ 24VAC/VDC, continuous duty solenoid
  • Certifications: ANSI/BHMA A156.2 Grade 1; UL-cUL listed; ANSI A117.1 Accessibility; California State Fire Marshal
  • Warranty: Seven-year limited (two-year for CL33900 electrified)

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin door hardware components are engineered to commercial-grade standards, delivering the precision fit and reliable performance that demanding institutional and commercial environments require. The 586F18 throw-off latch backset is a genuine replacement part designed specifically for the CL3500/CL3800 Series, ensuring manufacturer-specified compatibility and function. With field-reversible handing and a precise 2-3/4" backset with 1-1/8" square corner faceplate, this component supports efficient, professional installations across a wide range of commercial applications.

Manufacturer Resources

Corbin Russwin Condensed Catalog

Product Specs

Product Group:
Parts and Accessories
Series:
CL3500/CL3800 Series
Product Subgroup:
Parts and Accessories
Product Type:
Backsets
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Subcategory:
Parts and Accessories
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Door Hand Direction:
Field Reversible
Product Category:
Mechanical Locks
For Use With:
CL3500/CL3800
Department:
Door Hardware

Corbin Russwin 586F18-626 – Frequently Asked Questions

1) Will the Corbin Russwin 586F18 latch work in a door already bored for a 2-3/4 inch backset?
Yes. The 586F18 is the 2-3/4 inch backset latch, which is the standard backset on the CL3500/CL3800 cylindrical locksets. The faceplate is a square corner front measuring 2-1/4 x 1-1/8 inches. If your opening was prepped for one of the optional backsets, 3-3/4 inch or 5 inch, this is the wrong part and you need the latch matched to that backset instead.
2) Do I need to order a left hand or right hand version of the 586F18 latch?
Neither. The 586F18 latch is field reversible, so one part covers both hands and you flip it on the job rather than ordering by handing. The CL3500/CL3800 locksets themselves are non-handed as well, with the exception of FZD trim.
3) Which Corbin Russwin locks does the 586F18 latch fit?
It is a replacement latch for the CL3500 and CL3800 Series cylindrical locksets. It is not a universal latch, so don't plan on dropping it into a mortise lock or another manufacturer's cylindrical chassis.
4) Is this latch fire rated for a labeled door?
The 586F18 is the standard latch with a 1/2 inch stainless steel latchbolt throw. The CL3500/CL3800 platform offers an optional 3/4 inch fire latch, and that is the one specified for fire door applications. If your opening carries a label, order the 3/4 inch fire latch rather than this one.
5) My latch faceplate has rounded corners. Can I use the 586F18?
Not without changing the door prep. The 586F18 has a square corner front, 2-1/4 x 1-1/8 inches. Dropping a square corner plate into a mortise routed for a radius corner leaves a visible gap at the corners. Order the square corner version only if the existing pocket is square, or plan on re-routing.
6) Will a 1/2 inch throw latch still catch in my existing ANSI strike?
Yes, with a standard ANSI strike prep. The CL3500/CL3800 strike is a wrought brass or stainless steel ANSI curved lip strike, 4-7/8 x 1-1/4 inches with 1-1/4 inch lip to center, and the 1/2 inch stainless latchbolt is sized to that. The latch also carries a deadlocking auxiliary latchbolt, so the main bolt can't be manipulated once the door is closed.
7) What door thickness does the CL3500/CL3800 latch setup handle?
1-3/4 inch (44mm) and 2 inch (51mm) are standard, with an optional build for doors over 2 inches up to 2-1/4 inch (57mm). The latch itself is the same; thickness is handled by the chassis and through-bolt hardware.
8) What finishes does the 586F18 latch come in, and will it match my existing lever trim?
Five finishes: 605 bright brass, 612 satin bronze, 613 satin bronze oil-rubbed, 625 bright chrome, and 626 satin chrome. For a fleet of doors, match the number to what's stamped on the lock you're servicing. Only the faceplate shows once installed, so the finish choice is about that visible front against the edge of the door.
9) Is this a Grade 1 commercial part or something lighter duty?
Commercial. The CL3500/CL3800 cylindrical lockset it serves is certified to ANSI/BHMA A156.2 Series 4000, Grade 1, and is UL-cUL listed, meets ANSI A117.1 accessibility, and is listed by the California State Fire Marshal. That is the spec level for schools, hospitals, and municipal buildings where the lock is cycled hard.
10) Can I replace just the latch, or do I have to buy a whole new lockset?
Just the latch. The 586F18 is sold as a genuine replacement part for the CL3500/CL3800 cylindrical locks, so a worn or damaged latch unit can be swapped without pulling the chassis, levers, or cylinder. That is the usual repair when the bolt is dragging or the auxiliary latch has failed but the lock body is fine.
11) Does the 586F18 latch work on the electrified CL33900 locks too?
The CL33900 electrified option runs on the same CL3500/CL3800 cylindrical platform, at 12 or 24VAC/VDC with a continuous duty solenoid drawing 250mA at 12V or 150mA at 24V, and uses an ElectroLynx 8-pin connector. The electrification is in the chassis, not the latch, so the mechanical latch and its 2-3/4 inch backset prep are unchanged. Confirm the backset on the installed lock before ordering.
