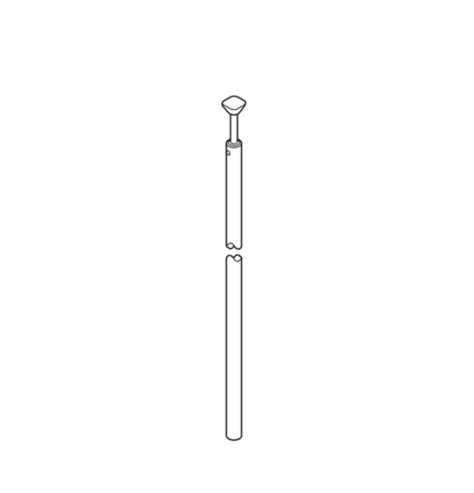

Corbin Russwin 649F99 Grade 1 - Bottom Rod and End Pin Assembly, for ED4000/ED5000 Surface Device

(No reviews yet) Write a Review

Model: 649F99 626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$261.69
$225.32
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin 649F99 Bottom Rod and End Pin Assembly for ED4000/ED5000 Series Surface Vertical Rod Exit Devices

Genuine Replacement Bottom Rod Component for ED4000 and ED5000 Series Surface Vertical Rod Exit Devices

The Corbin Russwin 649F99 Bottom Rod and End Pin Assembly is a genuine manufacturer replacement part engineered specifically for the ED4000 and ED5000 Series surface vertical rod exit devices. Designed for commercial door hardware applications, this assembly provides the critical bottom rod function required for proper vertical rod exit device operation. Compatible with ED4400, ED5400(A), ED4400M(A), and ED5470(B) Surface Vertical Rod configurations, this part ensures reliable, code-compliant performance when servicing or restoring Corbin Russwin exit device installations.

Professional Features & Benefits

  • Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
  • Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Non-handed device (except double cylinder and lever trim which are handed)
  • Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
  • Standard single-point 1/4-turn hex key dogging on panic devices
  • Free Wheeling levers for vandal resistance on trim
  • SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
  • Electrified options including delayed egress, electric latch retraction, and electric dogging
  • UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
  • Full range of trim with Muséo® and Vineyard™ collections
  • ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
  • PathLite™ photoluminescent touchpad cover option available
  • Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

  • Grade: ANSI/BHMA A156.3 Grade 1
  • Handing: Non-handed standard (lever trim and double cylinder devices are handed)
  • Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
  • Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
  • Minimum Stile Width: 4-1/2" (114mm)
  • Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
  • Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
  • Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
  • Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
  • Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
  • Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
  • Warranty: Five-year limited

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin exit device parts and accessories are manufactured to the same exacting standards as the original devices, ensuring seamless integration and sustained performance in commercial door hardware systems. The 649F99 Bottom Rod and End Pin Assembly is purpose-built for the ED4000/ED5000 Series, providing facility managers and door hardware professionals with a reliable, manufacturer-approved solution for maintaining compliant and fully functional egress systems. Engineered for demanding commercial applications where dependable performance is essential.

Manufacturer Resources

Corbin Russwin Condensed Catalog

Product Specs

Product Group:
Parts and Accessories
Series:
ED4000/ED5000 Series
Product Subgroup:
Parts and Accessories
Product Type:
Exit Devices Parts
Commercial/Residential:
Commercial
Subcategory:
Parts and Accessories
Product Category:
Parts and Accessories
Department:
Door Hardware
Product Function:
Bottom Rod

Corbin Russwin 649F99 626 – Frequently Asked Questions

1) Which Corbin Russwin exit devices does the 649F99 bottom rod assembly fit?
The 649F99 Bottom Rod and End Pin Assembly is built for Corbin Russwin ED4000 and ED5000 Series surface vertical rod devices, specifically the ED4400, ED5400(A), ED4400M(A) and ED5470(B) configurations. It is a genuine Corbin Russwin replacement part, so it drops into those devices without modification. If your device is a rim device (ED5200) or a concealed vertical rod, this is the wrong rod.
2) What does the bottom rod on a Corbin Russwin ED5400 surface vertical rod actually latch into?
On the ED5400 surface vertical rod, the bottom latch is a deadbolt-style bolt with a 5/8 inch throw that drops into a floor strike, while the top latch is a 3/4 inch throw pullman-type deadlocking latch at the head. The 649F99 assembly is the bottom rod and end pin that drives that lower bolt, so if the door is no longer securing at the threshold, this is the part in question.
3) I manage a building with pairs of doors and no center mullion. Is the surface vertical rod the right device, and does the bottom rod matter?
A surface vertical rod device latches at both the head and the floor, which is what lets a pair of doors secure without a center mullion. The bottom rod is half of that: lose it and the door only holds at the top. If you would rather remove the floor latch entirely (dirt, wet mopping, tripping), the alternative is a rim device with a removable mullion between the leaves, such as a key removable mullion like the BEST Precision KR822689.
4) Will replacing the bottom rod keep my fire door assembly compliant?
Using the genuine Corbin Russwin part is what keeps the assembly as listed. The ED4000/ED5000 Series devices are ANSI/BHMA A156.3 Grade 1, UL/cUL listed panic and 3-hour fire exit hardware, NFPA 101 and NFPA 80 compliant, ADA compliant on lever trims and pulls, and California State Fire Marshal approved. Substituting a non-original rod on a fire-rated opening puts that listing at risk.
5) We have a pair of doors with a vertical rod device on each leaf. Is a key removable mullion an alternative to replacing the bottom rod?
They solve different problems. The BEST Precision KR822689 is a 2 inch by 3 inch by 8 foot key removable mullion in an aluminum finish, used to give a pair of doors a fixed center post so each leaf can run a rim device. The Corbin Russwin 649F99 bottom rod and end pin assembly services the existing ED4000/ED5000 surface vertical rod hardware in place. Going to a mullion means changing the device type on the openings; the 649F99 keeps the current vertical rod devices working as built.
6) Does the 649F99 bottom rod have to be cut to length for my door height?
Rod and bar sizing on the ED4000/ED5000 Series is built around a 36 inch standard bar covering 30 to 36 inch doors, field cuttable, with optional 24 inch and 48 inch lengths. Measure your existing rod before ordering the replacement so the bottom rod matches the door height you are servicing.
7) Is the 649F99 bottom rod handed? Do I need to order left or right?
Handing is not a factor on the rod itself. The ED4000/ED5000 surface devices are non-handed as standard, with handing only coming into play on lever trim and double cylinder devices. The bottom rod and end pin assembly installs the same either way.
8) What door thickness and stile width do the ED4000/ED5000 devices this rod serves require?
Standard door thickness is 1-3/4 inch (44mm), with 2 inch (D200) and 2-1/4 inch (D214) options, and the minimum stile width is 4-1/2 inch (114mm). If you are working an aluminum storefront with a narrower stile than 4-1/2 inches, this device family is not the one on that opening and the 649F99 rod will not be the part you need.
9) My tenants keep propping the doors open. Can I hold the latches retracted instead of ordering a new rod every year?
The ED4000/ED5000 panic devices come standard with single-point 1/4-turn hex key dogging, with cylinder dogging and electric dogging available as options. Dogging holds the pushbar and rods retracted during business hours, which spares the bottom rod and floor strike a lot of wear. Note that dogging is not permitted on fire-rated openings.
10) Can a Design Hardware Cylinder Dogging Kit be used in place of a Corbin Russwin 649F99 bottom rod?
No. The 649F99 is a bottom rod and end pin assembly that carries the bottom latching function on ED4400, ED5400(A), ED4400M(A) and ED5470(B) surface vertical rod exit devices. The Design Hardware Cylinder Dogging Kit is built for 1000 Series exit devices and changes how the device is held dogged down, not how the bottom latch engages the floor strike. A device missing or bending a bottom rod needs the rod assembly itself; dogging hardware will not restore bottom latching.
11) What finish does the Corbin Russwin 649F99 bottom rod come in?
Satin chrome, finish code 626. That is the standard commercial finish and it matches 626 trim and devices already on most institutional openings, so a repaired leaf will not stand out from the rest of the doors on the run.
12) How far does the device project off the door face, dogged and undogged?
Projection on the ED4000/ED5000 surface devices is 3-1/4 inches (83mm) with the bar active and 2-3/4 inches (70mm) when dogged down. That matters in tight corridors and where a door swings against a wall or an adjacent leaf.
13) Will an exit alarm kit for a 1000 or 2000 Series device work with Corbin Russwin ED4000/ED5000 exit hardware?
The Design Hardware exit alarm kits are made for that brand's 1000 Series and 2000 Series exit devices respectively, so they are not a Corbin Russwin ED4000/ED5000 part. The 649F99 is the genuine manufacturer bottom rod and end pin assembly for the ED4000/ED5000 surface vertical rod devices, matched to that chassis and rod geometry. For ED-series openings, stay within the Corbin Russwin part numbers when servicing rods and latching components.
How fast can I get the Corbin Russwin 649F99 626 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Corbin Russwin 649F99 626 come with a warranty?
Absolutely. The Corbin Russwin 649F99 626 is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Corbin Russwin 649F99 626?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Corbin Russwin 649F99 626 from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
!
