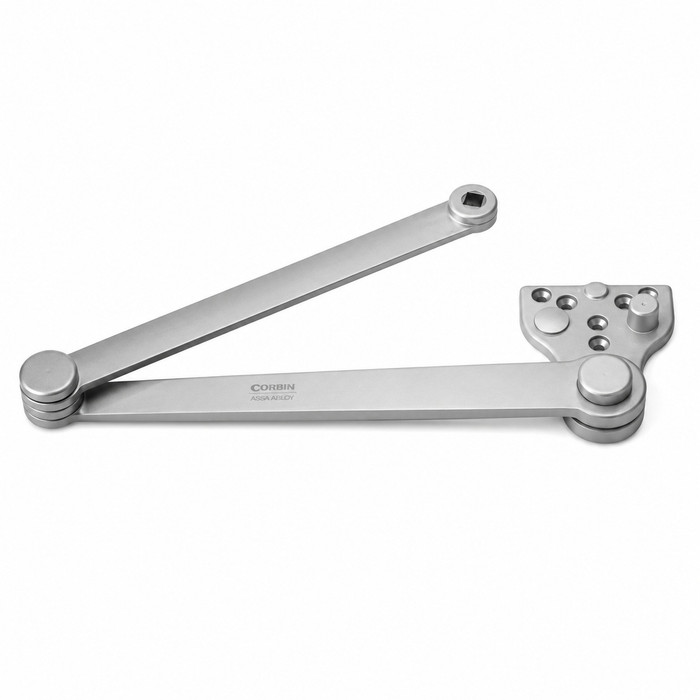

Corbin Russwin 689F01 Door Closer Part, Heavy-Duty Parallel Arm with Hold-Open

Corbin Russwin 689F01 Grade 1 Door Closer Part, Heavy-Duty Parallel Arm with Hold-Open

(No reviews yet) Write a Review

Model: 689F01 689
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$371.09
$189.09
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin 689F01 Heavy-Duty Parallel Arm Closer Replacement Part with Backstop for DC3000 and DC6000 Series

Commercial-Grade Parallel Arm Assembly for DC3000 and DC6000 Series Door Closers

The Corbin Russwin 689F01 is a heavy-duty backstop parallel arm (A4) replacement part engineered for compatibility with Corbin Russwin DC3000 and DC6000 Series door closers. Designed for pull-side mounting in commercial applications, this closer complete arm features a field-reversible steel lug that restricts the degree of opening to protect the door, wall, and surrounding hardware. Supporting door opening sizes from 85 to 110 degrees, this tamper-resistant parallel arm assembly delivers reliable, long-term performance in demanding commercial environments.

Professional Features & Benefits

  • Cast aluminum body with Cam-Motion™ technology for easy opening and secure closing
  • Adjustable spring size 1 through 6 — accommodates door weight up to 250 lbs.
  • Non-handed — single model supports up to four mounting positions
  • Unique spline arm with multiple indexing options for standard and special applications
  • Push and pull side installation, door or frame mounted
  • Forward-facing adjustable closing and latching speed valves
  • Backcheck standard on all units
  • Hold open available: specify DC5200 x A1
  • 1/2" vertical adjustment for flexible installation
  • ANSI/BHMA A156.4 Grade 1 certified; ADA compliant; TAA compliant
  • UL10C positive pressure up to 3 hours; UL-cUL listed
  • 30-year limited warranty

Technical Specifications

  • Grade: ANSI/BHMA A156.4, Grade 1
  • Body: Cast aluminum, cam and roller design
  • Spring Power: Adjustable sizes 1 through 6
  • Door Weight: Up to 250 lbs.
  • Door Thickness: 1-3/4" (44mm) standard
  • Opening Range: Pull side: 140°; push side: 110°
  • Maximum Interior Door Width (Recommended): 54" (137mm)
  • Valves: Independent adjustable closing speed and latching speed; standard backcheck
  • Hold Open: Available (specify A1 arm); not for fire doors
  • Mounting: Pull side door or frame mounted; push side door or frame mounted
  • Certifications: ANSI/BHMA A156.4 Grade 1; ADA/ANSI A117.1; UL10C (3 hr.); UL-cUL; TAA
  • Warranty: 30-year limited

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Tamper-Resistant Design

The Corbin Russwin 689F01 features tamper-resistant construction that deters unauthorized adjustment or tampering with the arm assembly. This design helps maintain consistent door closer performance and protects the integrity of the installation in high-traffic or public-access commercial environments.

Why Choose Corbin Russwin Quality?

Corbin Russwin door closer parts are manufactured to commercial-grade standards, delivering reliable performance and precise compatibility with the DC3000 and DC6000 Series closer platforms. The 689F01 parallel arm assembly is backed by a 30 Year Limited warranty, reflecting the brand's commitment to long-term durability and dependability. Engineered for demanding commercial applications, this replacement part ensures your door control system continues to operate safely and effectively.

Manufacturer Resources

Corbin Russwin Condensed Catalog

Product Specs

Application:
DC6000 Series
Product Group:
Parts and Accessories
Warranty:
30 Year Limited
Product Subgroup:
Parts and Accessories
Features:
Tamper-Resistant; Mounted on Pull Side; Field-Reversible Steel Lug Restricts Degree of Opening to Protect Door, Wall and Hardware
Commercial/Residential:
Commercial
Arm Form:
Non-Hold Open
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Type:
Door Closers Parts
Subcategory:
Parts and Accessories
Product Function:
Closer Complete Arm
Door Opening Size:
85 to 110 Degrees
Installation Category:
Parallel Arm
Product Category:
Door Controls
Department:
Door Hardware

Corbin Russwin 689F01 689 – Frequently Asked Questions

1) Will the Corbin Russwin 689F01 arm fit my DC3000 door closer?
The 689F01 parallel arm assembly is built for Corbin Russwin DC3000 and DC6000 Series closers. It is a complete arm replacement, so if you have one of those two closer bodies on the door and the arm is bent, broken, or someone has walked off with it, this is the part that goes back on. It will not adapt a closer from another series or another brand.
2) How far will a door open with the Corbin Russwin 689F01 parallel arm installed?
Between 85 and 110 degrees. The arm carries a field-reversible steel lug that acts as a built-in backstop, restricting how far the door swings so it does not drive the lever into the wall or tear up the adjacent hardware. Because the lug is reversible in the field, you set the stop where the opening needs it rather than ordering a different arm.
3) Does the 689F01 arm mount on the push side or the pull side of the door?
Pull side only. It is a parallel arm assembly mounted on the pull side, which means the closer body sits on the door face on the side the door pulls toward and the arm runs parallel to the door when closed. If your closer is set up push side with a regular arm, this is the wrong arm for that installation.
4) The parallel arm will not reach the frame soffit on my opening - do I need a different arm than the 689F01?
That is usually a mounting depth problem rather than an arm problem. A parallel arm needs enough soffit for the shoe to land on; when the stop or frame face does not give it, the fix is a parallel arm drop plate that lowers the closer body onto the door face. Design Hardware offers three, sized to the closer they serve: the 116 parallel arm drop plate in steel at 3-1/2 inch height for the 116 Series, and the 316-PA-DP and 416-PA-DP at 5 inch for the 316 and 416 Series. Those plates are matched to their own Design Hardware closer bodies, so they are the answer on a Design Hardware installation, not a way to adapt the 689F01, which is the complete parallel arm for the Corbin Russwin DC6000 Series.
5) What finishes does the Corbin Russwin 689F01 parallel arm come in?
Six: 689 anodized aluminum, 690 dark bronze, 691 light bronze, 693 black, 696 satin brass, and 600 primed for painting. If you are matching a run of existing closers in a building, order the same number that is already on the other doors. The 600 primed option is the one to take when the arm has to be painted to a specified color.
6) Do I still need a separate door stop if I install the 689F01 backstop arm?
The backstop function is in the arm itself, so the arm takes the impact instead of a wall or floor stop. That is the point of the F01: on openings where a wall bumper cannot be mounted, or where tenants keep ripping them out, the steel lug in the arm holds the door back at 85 to 110 degrees. Many specs still call for a floor or wall stop as a secondary, but the arm alone will keep the door off the wall.
7) I want the door to stay open, is there a friction hold open arm instead of this backstop arm?
Not from this part. The 689F01 is the non-hold-open backstop arm for Corbin Russwin DC3000 and DC6000 closers. If hold-open is what the job actually needs, ZenSupply carries the Design Hardware 316/116 Friction Hold Open Arm, which fits the Design Hardware 116 and 316 Series closers, not the Corbin Russwin bodies. So the choice is driven by which closer is already on the door. Either way, keep hold-open off fire-rated openings.
8) Is the 689F01 arm handed, do I need to order left and right?
One part number covers both hands. The lug that sets the stop is field-reversible, so the same arm serves a left hand and a right hand opening, and you set it on site. For a property manager buying spares for a building, that means stocking one arm per finish rather than a pair of each.
9) For a high-traffic public entrance, how does the 689F01 arm compare with the Design Hardware parallel arm accessories?
The 689F01 is a commercial parallel arm with tamper-resistant construction, which matters where the public can reach the arm and back the closer out of adjustment. The Design Hardware parallel arm parts - the 116, 316 and 416 drop plates and the 316/116 friction hold open arm - are all standard duty items. A facility standardizing one door control package across a busy lobby or corridor should match the arm to the closer body it is mounted on: the 689F01 is the arm for a Corbin Russwin DC6000 Series closer, while the Design Hardware parts belong on their matching 116, 316 or 416 Series bodies.
10) I ordered a 5 inch parallel arm drop plate and it will not work with my Corbin Russwin arm - what went wrong?
Drop plates are series-specific, not universal. The 5 inch parallel arm drop plates from Design Hardware are cut for the 316 Series and the 416 Series closer bodies, and the 3-1/2 inch steel plate is cut for the 116 Series; the hole pattern follows the closer it was made for. The 689F01 is a Corbin Russwin parallel arm for DC6000 Series closers, so a Design Hardware plate will not line up behind it. Order the drop plate from the same closer platform as the body on the door.
11) Can a tenant or the public adjust the 689F01 arm once it is installed?
The arm is tamper-resistant, which is why it turns up in schools, healthcare corridors, and multi-tenant lobbies. The stop setting is not something someone can back off by hand to swing the door further into the wall. For a facility standardizing hardware across public-access openings, that is the reason to spec the F01 arm over a plain parallel arm.
