Corbin Russwin 714F065 Grade 1...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$180.18
$145.02
Corbin Russwin 714F065 Grade 1 - CL3300 Cylindrical Lock Series Part, Lever, NZD - CL3352 Inside, 1-3/4" - 2" Doors

Corbin Russwin 714F065 Grade 1 - CL3300 Cylindrical Lock Series Part, Lever, NZD - CL3352 Inside, 1-3/4" - 2" Doors

(No reviews yet) Write a Review

Model: 714F065 626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$180.18
$145.02
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

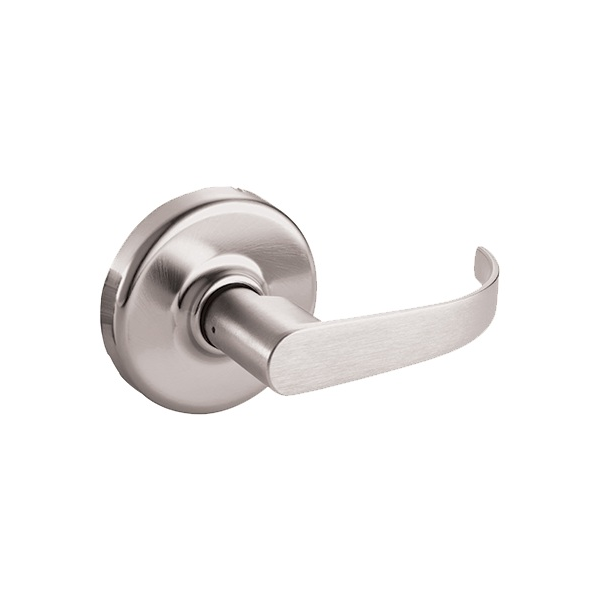

Corbin Russwin 714F065 CL3300 Cylindrical Lock Series NZD Newport Lever for CL3352 Inside on 1-3/4" to 2" Doors

Commercial-Grade Cylindrical Lock Lever Replacement Part for CL3300 Series

The Corbin Russwin 714F065 is a precision-engineered lever component designed specifically for the CL3300 Cylindrical Lock Series, serving as the inside lever for CL3352 applications. Featuring the NZD Newport lever design, this part is compatible with doors ranging from 1-3/4" to 2" in thickness, making it a versatile solution for a wide range of commercial door hardware configurations. Corbin Russwin offers a full array of lock parts to suit project needs, with several finishes available for nearly all parts to assure the correct match for your application.

Professional Features & Benefits

  • Grade 1 cylindrical lockset per ANSI/BHMA A156.2 Series 4000, Grade 1
  • Lever Release™ design for vandal resistance — outside lever rotates freely when locked
  • EZ-Install components significantly reduce installation time
  • Independent return springs prevent lever sag
  • 4 solid cast lever options (Armstrong, Newport, Princeton, Frascati)
  • Anti-rotational through-bolts at 6 and 12 o'clock positions
  • Accommodates 6 or 7-pin conventional cylinders and all keying levels
  • CL3352 Classroom Intruder function: double-cylinder lockset, always-free egress
  • Available with MicroShield® antimicrobial coating (suffix option code "C")
  • CL33900 electrified option: fail safe and fail secure, 12 or 24VAC/VDC
  • ElectroLynx® 8-pin connector on all electrified products
  • Seven-year limited warranty (two-year for electrified)

Technical Specifications

  • Grade: ANSI/BHMA A156.2 Series 4000, Grade 1
  • Handing: Non-handed (except FZD trim)
  • Door Thickness: 1-3/4" (44mm) 2" (51mm) standard; optional over 2" 2-1/4" (57mm)
  • Backset: 2-3/4" (70mm) standard; optional 3-3/4" (95mm) and 5" (127mm)
  • Latchbolt: Stainless steel, 1/2" (13mm) throw; optional 3/4" (19mm) fire latch
  • Auxiliary Latchbolt: Deadlocking — prevents manipulation when door is closed
  • Lock Chassis: Steel, zinc dichromated for corrosion resistance
  • Front: Wrought brass, bronze, or stainless steel, 2-1/4" x 1-1/8"
  • Strike: Wrought brass or stainless steel ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" lip to center
  • Cylinder: Brass, 6-pin L4 keyway, 0-bitted standard
  • Electrified Voltage: 12VAC/DC or 24VAC/DC (CL33900 Series)
  • Electrified Current: 250mA @ 12VAC/VDC; 150mA @ 24VAC/VDC, continuous duty solenoid
  • Certifications: ANSI/BHMA A156.2 Grade 1; UL-cUL listed; ANSI A117.1 Accessibility; California State Fire Marshal
  • Warranty: Seven-year limited (two-year for CL33900 electrified)

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin door hardware parts are built to commercial-grade standards, offering a full array of lock components engineered for reliable performance in demanding applications. With several finishes available for nearly all parts, Corbin Russwin ensures the correct aesthetic and functional match for virtually any project. When dependable, genuine replacement components are required for CL3300 Series cylindrical lock hardware, Corbin Russwin delivers the precision and consistency that commercial installations demand.

Manufacturer Resources

Corbin Russwin Condensed Catalog

Product Specs

Product Group:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Lever
Commercial/Residential:
Commercial
Subcategory:
Parts and Accessories
Product Attribute:
Parts and Accessories
Product Model:
714F065
Product Category:
Mechanical Locks
Department:
Door Hardware
Lever Design Name:
NZ - Newport

Corbin Russwin 714F065 626 – Frequently Asked Questions

1) Is the Corbin Russwin 714F065 a complete lockset or just the lever?
It's a lever only, not a lockset. The 714F065 is the NZD Newport inside lever for Corbin Russwin CL3300 Series cylindrical locks, specifically the CL3352 Classroom Intruder function on 1-3/4 inch to 2 inch doors. If the chassis, latch or cylinder is worn out too, you need those separately; this part replaces a damaged, mismatched or refinished lever.
2) Will the 714F065 Newport lever fit my door thickness?
The 714F065 is specified for 1-3/4 inch (44mm) to 2 inch (51mm) doors, which is the standard CL3300 range. The series can be ordered for doors over 2 inch up to 2-1/4 inch (57mm), but that is an option on the lock and not what this lever part is listed for. For a standard 1-3/4 inch commercial door, it's a direct fit.
3) Do I need to worry about handing when ordering this Newport lever?
No. The CL3300 Series is non-handed, with the sole exception of FZD trim, so the NZD Newport lever goes on a left- or right-hand door without changes. Just confirm you're replacing the inside lever, since the 714F065 is the inside half of a CL3352.
4) What is the CL3352 function, and why does the inside lever matter on it?
CL3352 is Corbin Russwin's Classroom Intruder function: a double-cylinder lockset with always-free egress. Because there's a cylinder on both sides, a teacher can lock the outside from within the room while the inside lever always retracts the latch to exit. The 714F065 is the inside lever on that arrangement, so a broken or sagging one is a life-safety egress issue, not cosmetic.
5) Is CL3300 hardware acceptable for a school or healthcare spec that calls for Grade 1 and ADA compliance?
The CL3300 cylindrical lockset is ANSI/BHMA A156.2 Series 4000, Grade 1, UL-cUL listed, compliant with ANSI A117.1 accessibility, and listed by the California State Fire Marshal. That combination is what most education and healthcare specs ask for, and the lever design itself satisfies the accessibility requirement for operation without grasping.
6) What finish does the 714F065 come in, and will it match my other CL3300 doors?
This lever is supplied in 626 Satin Chrome, the most common commercial finish on CL3300 hardware. Corbin Russwin makes most lock parts in several finishes, so if your existing openings are in a brass or bronze finish, you want the matching finish code rather than 626.
7) Will a replacement Newport lever stop the sagging and vandalism problems we keep having?
CL3300 levers use independent return springs to prevent lever sag, so a new lever restores that support if the old spring assembly has given up. The series also uses Lever Release, where the outside lever rotates freely when the lock is secured, so someone hanging on it doesn't damage the chassis. Note that Lever Release protects the outside lever; the 714F065 is the inside one.
8) What other lever styles can I get instead of the NZD Newport on a CL3300 lock?
Four solid cast lever designs are offered across the CL3300 Series: Armstrong, Newport, Princeton and Frascati. The 714F065 is the Newport (NZ) design. If your building standard is one of the other three, order that design code instead, since the lever shape is what changes, not the chassis.
9) What backset and latch throw does the CL3300 lock this lever belongs to use?
Standard backset is 2-3/4 inch (70mm), with 3-3/4 inch (95mm) and 5 inch (127mm) available as options. The stainless steel latchbolt has a 1/2 inch (13mm) throw, or 3/4 inch (19mm) on the fire latch version, and the auxiliary latchbolt deadlocks to block manipulation when the door is shut. Those figures matter for the chassis and latch, not the lever itself, but they tell you whether the existing prep is CL3300.
10) Will my existing strike work if I'm rebuilding a CL3300 opening?
The CL3300 ships with a wrought brass or stainless steel ANSI curved lip strike, 4-7/8 x 1-1/4 inches with a 1-1/4 inch lip to center, and the lock front measures 2-1/4 x 1-1/8 inches. If your frame is already prepped to the ANSI 4-7/8 strike cutout, the lock drops in; a non-ANSI or T-strike frame needs the frame modified or a matching strike ordered.
11) Can I key a CL3300 classroom intruder lock into our existing master key system?
Yes. CL3300 locks accept 6 or 7-pin conventional cylinders and all keying levels. Cylinders ship as brass, 6-pin L4 keyway, 0-bitted as standard, so a locksmith can pin them to your system. On a CL3352 there are two cylinders to key, one each side.
12) Is there an antimicrobial or electrified version of this CL3300 hardware?
Both exist as options on the series. MicroShield antimicrobial coating is ordered with suffix option code C. For access control, the CL33900 electrified option comes fail safe or fail secure at 12 or 24VAC/VDC, drawing 250mA at 12V or 150mA at 24V on a continuous duty solenoid, and all electrified products use the ElectroLynx 8-pin connector for plug-together wiring.
13) How is a CL3300 lever held on, and will swapping it chew up my door?
CL3300 locks use anti-rotational through-bolts at the 6 and 12 o'clock positions plus EZ-Install components that cut install time. The through-bolts land in the existing prep, so replacing the inside lever on a door already carrying a CL3352 is a straight swap with no new boring.
