Corbin Russwin Armstrong Grade 1 Inside Lever for CLX3352 LFIC 6-Pin Lever

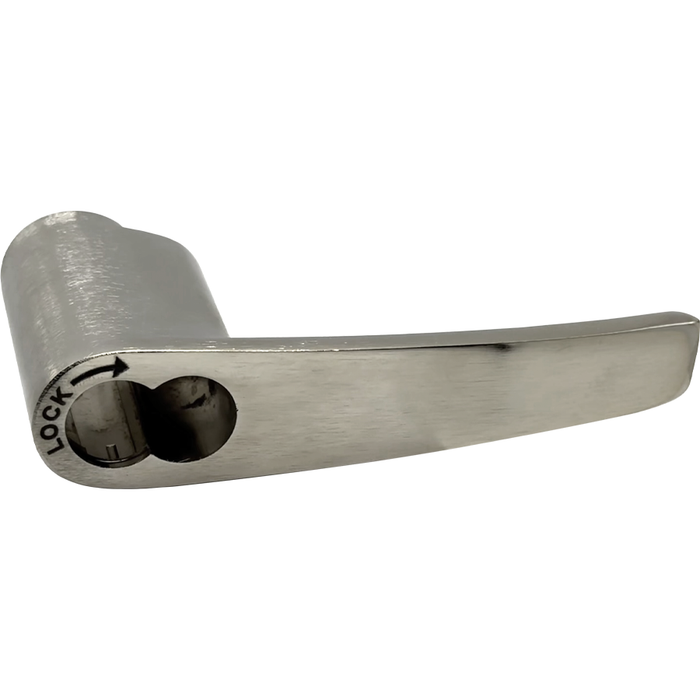

Corbin Russwin 860F075-AZD Armstrong Inside Lever for CLX3352 LFIC 6-Pin Cylindrical Lockset

Commercial-Grade Replacement Lever for CLX3352 Series Cylindrical Locksets

The Corbin Russwin 860F075-AZD is an Armstrong-style inside lever designed specifically for use with the CLX3352 cylindrical lockset series. This commercial-grade lever is factory-prepped for Large Format Interchangeable Core (LFIC) 6-pin cylinder integration, making it a precise replacement or upgrade component for CLX3352 LFIC applications. Engineered to Corbin Russwin's professional standards, this lever is intended for commercial door hardware installations where reliable, compatible parts are essential.

Professional Features & Benefits

• ANSI/BHMA Grade 1 cylindrical lock per A156.2 (2022) Series 4000
• UL Cycle above and beyond: 20 Million Cycles (Verification ID: V875753)
• Exceeds 3,100 in-lb abusive locked lever torque — 2.6× ANSI requirements
• Exceeds 1,600 lbs offset lever pull — 8× ANSI requirements
• Innovative Lever Release™ freewheeling design for vandal resistance
• Lock chassis design supports all cylinder formats (fixed core to interchangeable core)
• Patented adjustable push/turn button for easy door thickness adjustment
• Available with BHSS behavioral health trim and VSL visual status indicators
• EcoFlex® technology on CLX33900: up to 92% energy reduction (GreenCircle certified)
• Available with 27 mechanical and 2 electrified functions
• CLX3352 Classroom Intruder: locking from either side, always-free egress
• ElectroLynx® 8-pin molex connector on electrified units
• Ten-year limited mechanical warranty (two-year limited electrical)

Technical Specifications

• Grade: ANSI/BHMA A156.2 (2022) Series 4000, Grade 1
• Door Prep: ANSI/SDI A250.14
• Handing: Non-handed
• Door Thickness: 1-3/4" 2" (44–51mm) standard; optional 1-3/8" (D138) or over 2" up to 2-1/4" (D214)
• Backset: 2-3/4" (70mm) standard; optional 2-3/8", 3-3/4", 5"
• Minimum Stile: 4-1/2" (114mm)
• Latchbolt: Stainless steel, 1/2" (13mm) throw; optional 3/4" (19mm) deadlocking fire latch
• Front: Wrought brass, bronze, or stainless steel, 2-1/4" x 1-1/8" standard
• Strike: Wrought brass or stainless steel, ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" lip to center
• Cylinder: Brass, 6-pin L4 keyway, 0-bitted standard
• Electrified Voltage: 12VDC or 24VDC; range 10.2–26.4VDC (CLX33900)
• Electrified Current: 10mA continuous; 500mA peak @ 12VDC or 24VDC
• Operating Temperature: -13°F (-25°C) to 151°F (66°C) (electrified)
• Certifications: ANSI/BHMA A156.2 Grade 1; UL/cUL 3-hour; UL294 (electrified); NFPA 80; ADA A117.1; Windstorm/Hurricane certified
• Warranty: Ten-year limited mechanical; two-year limited electrical

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Government and Municipal Buildings
• Multi-Tenant Residential Properties
• Industrial and Warehouse Facilities

Why Choose Corbin Russwin Quality?

Corbin Russwin door hardware parts and accessories are manufactured to precise commercial-grade standards, ensuring reliable fit and function within their respective lockset platforms. The 860F075-AZD Armstrong Inside Lever is purpose-built for the CLX3352 LFIC 6-pin series, delivering the exact compatibility and performance that professional installers and facility managers depend on. For demanding commercial environments where hardware integrity is critical, Corbin Russwin replacement components provide the trusted quality expected from a professional-grade mechanical lock manufacturer.
