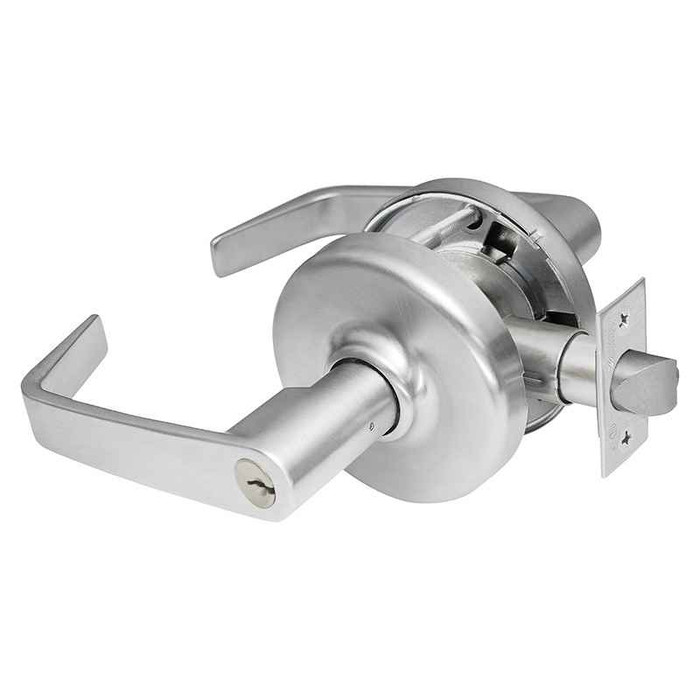

CORBIN RUSSWIN CL3582 STORE DOOR KEYED LOCK OVERVIEW
- ANSI function F91 (Store Door)
- Keyed cylindrical lever lock.
- Deadlocking latchbolt by lever either side, except when key either side
locks both levers. - Keyed alike unless otherwise specified.
Standard features
- Door thickness: 1-3/8" to 1-3/4" doors
- Backset: 2-3/4"
- Strike: ANSI curved lip 4-7/8" x 1-1/4" x 1-1/4" lip to center
- Cylinder: Brass, 6-pin, L4 keyway, 0-bitted standard.
- Keys: Two nickel silver keys
Most common configuration:
- NZD Newport lever
- 626 Satin Chrome finish
3500 SERIES OVERVIEW
A heavy-duty Grade 1 lever lockset, the CL3500 series is ideal for commercial, institutional and multi-family applications. Designed to continue the look of the cylindrical lockset family, the CL3500 lock- set complements the CL3300 Series Extra Heavy-Duty Grade 1 and CL3800 Series Standard-Duty Grade 2 Locksets. Best of all, when you combine the cylindrical lockset series throughout your facility, the overall cost of your project is reduced without compromising functionality and durability.
Durability for years
500 employees x 2 times per day x 260 workdays per year = greater than 57 years of operation
Example for illustrative purposes only.
Typical applications include:
- Interior offices
- Apartment complexes
- Convalescent and elderly care facilities
- Hotels
- Restaurants
- Retail centers
Key Advantages
- Non-handed
- Solid cast levers
- Independent return springs to prevent lever sag
- Through-bolted cylindrical chassis prevents rotation and ensures proper alignment
- ANSI/BHMA Grade 1 Certification
- Trim and keying compatible with other Corbin Russwin locksets
DOWNLOADS and RESOURCES
CL3500 Series Promotional Sheet
Manufacturer Resources
Product Specs
- Category:
- Mechanical Locks
- Subcategory:
- Cylindrical Locks
- Product Group:
- Mechanical Locks
- Series:
- CL3500 Series
- Grade:
- Grade 1
- Duty Level:
- Heavy Duty
- Keyed Function:
- Double Cylinder
- Lock Function Description:
- Deadlocking latchbolt by lever either side, except when key either side locks both levers. Keyed alike unless otherwise specified.
- Standard Cylinder:
- Conventional 6-pin Cylinder, L4 Keyway
- Standard Latch:
- Deadlatch - Square corner front, 2-1/4" x 1-1/8", 2-3/4" backset
- Standard Strike:
- ANSI Curved Lip 1-1/4" Lip Length
- Warranty:
- 7 Year Limited
- Fire Rated:
- Yes
- Backset:
- 2-3/4"
- Door Thickness:
- 1-3/8" to 1-3/4"
- Handing:
- Non-Handed
- ANSI/BHMA:
- F91
- Product Subgroup:
- Bored Locksets
- Product Type:
- Leversets
- Keyed:
- Yes
- Model:
- CL3582
- Substrate:
- Steel, Zinc dichromated for corrosion resistance
- Function:
- Storeroom
- Commercial/Residential:
- Commercial
- Lock Type:
- Cylindrical
- Handle Type:
- Lever
- Lock Function:
- Storeroom
- Product Attribute:
- Cylindrical Locks
