Corbin Russwin Cylinders Grade 1 2000-044 for CLX3300 and CL3400 Series

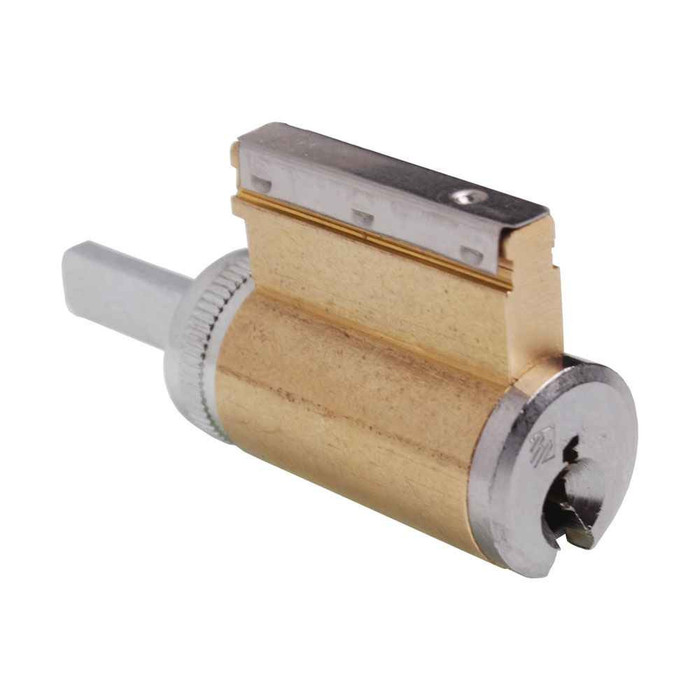

Corbin Russwin 044 2000 Series Conventional Key-In-Lever Cylinder for CLX3300 and CL3400 Series

Commercial-Grade Replacement Cylinder for CLX3300 and CL3400 Series Locksets

The Corbin Russwin 044 is a 2000 Series Conventional Key-In-Lever replacement cylinder engineered specifically for compatibility with CLX3300 and CL3400 Series cylindrical lever locksets. Designed for commercial door hardware applications, this non-handed cylinder integrates seamlessly into a properly designed master key system, transforming each hardware product into a reliable access control device. Supplied with 2 keys included, it delivers the right balance of security, convenience, and expansion capability required for professional keying system installations.

Professional Features & Benefits

• ANSI/BHMA Grade 1 cylindrical lock per A156.2 (2022) Series 4000
• UL Cycle above and beyond: 20 Million Cycles (Verification ID: V875753)
• Exceeds 3,100 in-lb abusive locked lever torque — 2.6× ANSI requirements
• Exceeds 1,600 lbs offset lever pull — 8× ANSI requirements
• Innovative Lever Release™ freewheeling design for vandal resistance
• Lock chassis design supports all cylinder formats (fixed core to interchangeable core)
• Patented adjustable push/turn button for easy door thickness adjustment
• Available with BHSS behavioral health trim and VSL visual status indicators
• EcoFlex® technology on CLX33900: up to 92% energy reduction (GreenCircle certified)
• Available with 27 mechanical and 2 electrified functions
• CLX3352 Classroom Intruder: locking from either side, always-free egress
• ElectroLynx® 8-pin molex connector on electrified units
• Ten-year limited mechanical warranty (two-year limited electrical)

Technical Specifications

• Grade: ANSI/BHMA A156.2 (2022) Series 4000, Grade 1
• Door Prep: ANSI/SDI A250.14
• Handing: Non-handed
• Door Thickness: 1-3/4" 2" (44–51mm) standard; optional 1-3/8" (D138) or over 2" up to 2-1/4" (D214)
• Backset: 2-3/4" (70mm) standard; optional 2-3/8", 3-3/4", 5"
• Minimum Stile: 4-1/2" (114mm)
• Latchbolt: Stainless steel, 1/2" (13mm) throw; optional 3/4" (19mm) deadlocking fire latch
• Front: Wrought brass, bronze, or stainless steel, 2-1/4" x 1-1/8" standard
• Strike: Wrought brass or stainless steel, ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" lip to center
• Cylinder: Brass, 6-pin L4 keyway, 0-bitted standard
• Electrified Voltage: 12VDC or 24VDC; range 10.2–26.4VDC (CLX33900)
• Electrified Current: 10mA continuous; 500mA peak @ 12VDC or 24VDC
• Operating Temperature: -13°F (-25°C) to 151°F (66°C) (electrified)
• Certifications: ANSI/BHMA A156.2 Grade 1; UL/cUL 3-hour; UL294 (electrified); NFPA 80; ADA A117.1; Windstorm/Hurricane certified
• Warranty: Ten-year limited mechanical; two-year limited electrical

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin cylinder products are engineered to deliver professional-grade security and reliability for commercial door hardware applications. The 2000 Series Conventional Key-In-Lever cylinder offers the right balance of security, convenience, and expansion capability to support even the most complex master key system requirements. As a direct replacement part for CLX3300 and CL3400 Series locksets, it ensures continued performance and system integrity in demanding commercial environments.
