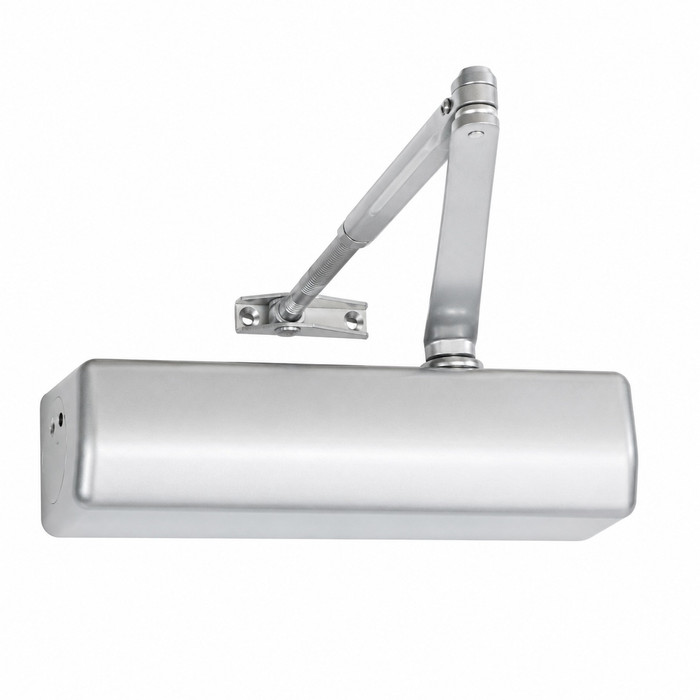

Corbin Russwin DC6200 Series - Grade 1 Surface Door Closer, Double Lever Regular Arm, Pull Side Mounting

Corbin Russwin DC6200 Grade 1 Surface Door Closer with Double Lever Regular Arm, Pull Side Mounting

Commercial-Grade Surface Mounted Door Closer for High-Use and ADA-Compliant Openings

The Corbin Russwin DC6200 is a Grade 1 surface mounted door closer from the DC6000 Series, engineered for high-use openings and applications that must meet ADA requirements. Featuring a double lever regular arm with pull side mounting, this closer is built with a cast iron body and heavy-duty forged arm for exceptional durability. It meets UL and UL10C positive pressure requirements for fire door openings and is rated for an outstanding 25,000,000 endurance cycles. Designed for 1-3/4" door thickness and a full 180-degree door opening range, the DC6200 delivers consistent, reliable performance in demanding commercial environments.

Professional Features & Benefits

• Cast aluminum body with Cam-Motion™ technology for easy opening and secure closing
• Adjustable spring size 1 through 6 — accommodates door weight up to 250 lbs.
• Non-handed — single model supports up to four mounting positions
• Unique spline arm with multiple indexing options for standard and special applications
• Push and pull side installation, door or frame mounted
• Forward-facing adjustable closing and latching speed valves
• Backcheck standard on all units
• Hold open available: specify DC5200 x A1
• 1/2" vertical adjustment for flexible installation
• ANSI/BHMA A156.4 Grade 1 certified; ADA compliant; TAA compliant
• UL10C positive pressure up to 3 hours; UL-cUL listed
• 30-year limited warranty

Technical Specifications

• Grade: ANSI/BHMA A156.4, Grade 1
• Body: Cast aluminum, cam and roller design
• Spring Power: Adjustable sizes 1 through 6
• Door Weight: Up to 250 lbs.
• Door Thickness: 1-3/4" (44mm) standard
• Opening Range: Pull side: 140°; push side: 110°
• Maximum Interior Door Width (Recommended): 54" (137mm)
• Valves: Independent adjustable closing speed and latching speed; standard backcheck
• Hold Open: Available (specify A1 arm); not for fire doors
• Mounting: Pull side door or frame mounted; push side door or frame mounted
• Certifications: ANSI/BHMA A156.4 Grade 1; ADA/ANSI A117.1; UL10C (3 hr.); UL-cUL; TAA
• Warranty: 30-year limited

Professional Applications

• Commercial Office Buildings
• Educational Facilities and Schools
• Healthcare Institutions and Medical Facilities
• Retail Establishments and Shopping Complexes
• Industrial and Warehouse Facilities
• Government and Municipal Buildings
• Multi-Tenant Residential and Mixed-Use Properties

Tamper-Resistant Design

The Corbin Russwin DC6200 incorporates captured valves and supports optional Torx® security screws to resist unauthorized adjustment and tampering. This security-focused design is ideal for high-abuse environments such as schools, healthcare facilities, and public buildings where closer integrity must be maintained over time.

Why Choose Corbin Russwin Quality?

Corbin Russwin DC6000 Series door closers are built to the highest commercial standards, featuring a cast iron body, heavy-duty forged arm, double O-rings, and a robust spring tube design rated for an exceptional 25,000,000 endurance cycles. The DC6200 meets UL and UL10C positive pressure requirements for fire-rated openings and carries a 30 Year Limited warranty, reflecting the brand's commitment to long-term reliability. Engineered for demanding commercial applications where consistent, code-compliant performance is essential.
