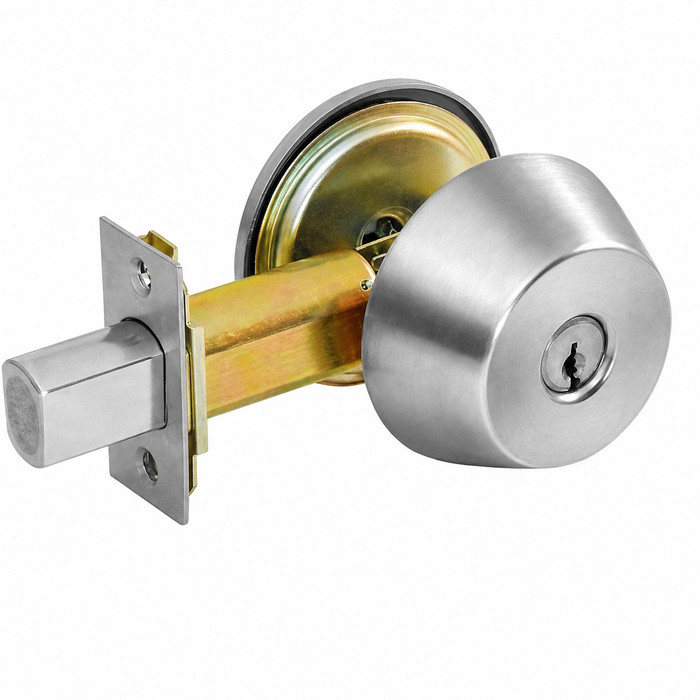

Corbin Russwin DL2213 Grade 1 Cylindrical Deadlock, Single Cylinder

Corbin Russwin DL2213 Grade 1 Cylindrical Deadlock, Single Cylinder

(No reviews yet) Write a Review

Model: DL2213 626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$175.89
$116.94
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin DL2213-KEYED Cylindrical Deadlock Single Cylinder with 1" Steel Deadbolt

Commercial-Grade Single Cylinder Cylindrical Deadlock for Secure Door Applications

The Corbin Russwin DL2213-KEYED is a professional-grade cylindrical deadlock from the DL2200 Series, designed for commercial applications requiring dependable deadbolt security. Operated by key outside and thumbturn inside, this single cylinder deadlock features a 1" throw solid steel deadbolt with a hardened, free spinning steel pin insert for superior forced-entry resistance. Engineered for standard 1-3/4" (44mm) door thickness with a standard 2-3/4" (70mm) backset — also available in optional 2-3/8" (60mm) backset — and a non-handed design for universal installation flexibility. The brass 6-pin cylinder with L4 keyway and two included nickel silver keys supports a full range of keying options including master keying, construction master keying, and visual and concealed key control.

Professional Features & Benefits

  • 1" Throw Solid Steel Deadbolt: Features a hardened, free spinning steel pin insert for exceptional resistance to cutting and forced-entry attacks in commercial environments.
  • Standard Door Thickness & Backset Compatibility: Designed for 1-3/4" (44mm) door thickness with a standard 2-3/4" (70mm) backset; optional 2-3/8" (60mm) backset available for flexible installation.
  • Non-Handed Design: Universal non-handed configuration simplifies ordering and installation across left- and right-hand door applications without additional parts.
  • Wrought Brass or Bronze Front: Standard front measures 2-1/4" (57mm) x 1-1/8" (29mm) in wrought brass or bronze for a professional, durable finish.
  • Standard Strike Included: Standard strike measures 2-3/4" (70mm) x 1-1/8" (29mm); optional strikes and wrought boxes are also available for varied frame conditions.
  • Brass 6-Pin Cylinder with L4 Keyway: Conventional 6-pin cylinder, 0-bitted, with two nickel silver keys included; security cylinders available as an option via Quick Codes.
  • Advanced Keying Options: Supports master keying, construction master keying, security keying, visual key control, and concealed key control for comprehensive access management.
  • Manufacturer Warranty: Backed by a 1 Year Limited warranty for added confidence and protection.

Technical Specifications

  • Subcategory: Deadlocks
  • Product Group: Mechanical Locks
  • Series: DL2200 Series
  • Keyed Function: Single Cylinder
  • Standard Cylinder: Conventional 6-pin Cylinder, L4 Keyway
  • Standard Latch: Deadbolt: 1" Throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
  • Standard Strike: 2-3/4" x 1-1/8"
  • Warranty: 1 Year Limited
  • ANSI/BHMA: E0150 Series
  • Product Subgroup: Bored Locksets
  • Product Type: Deadbolts
  • Keyed: Yes
  • Commercial/Residential: Commercial
  • Function Description: By key outside and by thumbturn inside.
  • Lock Type: Cylindrical
  • Lock Function: Deadbolt
  • Product Model: DL2213
  • Product Function: Deadbolt
  • Door Hand Direction: Non-Handed
  • Door Thickness Range: 1-3/4"
  • Product Category: Mechanical Locks
  • Backset (Distance): 2-3/4"
  • Department: Door Hardware

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin DL2200 Series cylindrical deadlocks deliver professional-grade reliability with a solid steel deadbolt featuring a hardened, free spinning steel pin insert and a conventional 6-pin brass cylinder rated to ANSI/BHMA E0150 Series standards. Backed by a 1 Year Limited warranty, these commercial-grade deadlocks are engineered for demanding applications where dependable access control and forced-entry resistance are essential.

Manufacturer Resources

Corbin Russwin Condensed Catalog

Product Specs

Subcategory:
Deadlocks
Product Group:
Mechanical Locks
Series:
DL2200 Series
Keyed Function:
Single Cylinder
Standard Cylinder:
Conventional 6-pin Cylinder, L4 Keyway
Standard Latch:
Deadbolt: 1" Throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
Standard Strike:
2-3/4" x 1-1/8"
Warranty:
1 Year Limited
ANSI/BHMA:
E0150 Series
Product Subgroup:
Bored Locksets
Product Type:
Deadbolts
Keyed:
Yes
Commercial/Residential:
Commercial
Function Description:
By key outside and by thumbturn inside.
Lock Type:
Cylindrical
Lock Function:
Deadbolt
Product Model:
DL2213
Product Function:
Deadbolt
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4"
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

Corbin Russwin DL2213 626 – Frequently Asked Questions

1) Will the Corbin Russwin DL2213 deadlock fit a 1-3/8 inch door?
No. The DL2213 cylindrical deadlock is built for 1-3/4 inch doors only. If your openings are 1-3/8 inch, or you have a mix of thicknesses across a building, look at a deadbolt with a range: the Dexter DB2000 single cylinder covers 1-3/8 to 1-3/4 inch, and the Accentra D111 Grade 1 covers the same range.
2) What backset does the DL2213 deadlock use, and will it drop into an existing 2-3/8 inch prep?
Standard backset on the DL2213 is 2-3/4 inches, which is the usual commercial bored prep. A 2-3/8 inch backset is offered as an option, so if your doors are already bored at 2-3/8 you need to specify that when ordering rather than assume the standard unit will reach the edge.
3) How does the DL2213 operate from each side of the door?
Key outside, thumbturn inside. It is a single cylinder deadlock, so anyone on the inside can throw or retract the bolt without a key. That matters for egress: if your code official requires no key on the egress side, this is the function you want rather than a double cylinder like the Callan 210S or the Design Hardware D1 double cylinder.
4) Will the DL2213 deadbolt reach into my existing strike?
The bolt throws a full 1 inch, solid steel with a hardened free spinning pin insert to resist sawing. The strike supplied measures 2-3/4 by 1-1/8 inches. If your frame is prepped for a different strike size, optional strikes and wrought boxes are available for other frame conditions.
5) Can I get the DL2213 to take my existing interchangeable core?
Yes. Besides the standard conventional 6-pin cylinder in the L4 keyway, the DL2213 is orderable as CL6 (less core, Corbin Russwin LFIC 6-pin) or CL7 (7-pin IC less core). Order the less-core version and drop in the cores you already key for the building. The conventional cylinder version ships 0-bitted with two nickel silver keys.
6) What is the closest cross-brand equivalent to the Corbin Russwin DL2213 single cylinder deadlock?
The DL2213 is a key outside, thumbturn inside deadbolt on a 2-3/4 inch backset for 1-3/4 inch doors. The closest cross-brand matches on function and grade are the Falcon D111, a Grade 1 cylinder x thumbturn deadbolt in the D100 Series, and the Hager 3118, a Grade 1 deadbolt with a Schlage C keyway and 6-pin cylinder for 1-3/8 to 1-3/4 inch doors. The Delaney LM Series 301702 is also a Grade 1 cylinder x thumbturn deadbolt. The DL2213 differs from all three in keyway: it ships with a conventional 6-pin brass cylinder in the Corbin Russwin L4 keyway.
7) I need an interchangeable core deadbolt instead of a conventional cylinder - what are my options?
The DL2213 itself is orderable less core in two IC preps: CL6 for a Corbin Russwin 6-pin LFIC, and CL7 for a 7-pin interchangeable core. If you key to a Best-style SFIC system instead, the Arrow E61 26D IC is a Grade 2 single cylinder deadlock with SFIC prep supplied less core for 1-3/8 to 1-3/4 inch doors, and the Deltana CL200LAIC is a Grade 2 single cylinder interchangeable core deadbolt on a 2-3/4 inch backset. The Delaney LM Series 301702 is a Grade 1 less core deadbolt in dull chrome US26D.
8) The DL2213 has a thumbturn inside - what do I order if the opening needs key operation on both sides?
The DL2213 is single cylinder: key outside and thumbturn inside. For key-both-sides openings, the Design Hardware D1 Series double cylinder deadbolt is Grade 1 extra heavy duty for 1-3/4 inch doors, matching the DL2213 door thickness. The Dexter DB1000 Series double cylinder is Grade 1 for 1-3/8 to 1-7/8 inch, and the Hager 3214 is a Grade 2 double cylinder with a Schlage C keyway. Confirm your local code allows a double cylinder on the opening before specifying one.
9) I need a fire rated deadbolt - does the DL2213 line up with anything that publishes a fire rating?
For openings where the deadbolt itself must carry a fire rating, the Hager 3115, 3118, 3214 and 3215 all list a fire rating and cover 1-3/8 to 1-3/4 inch doors, and the Cal-Royal CRB800 is a Grade 1 heavy duty single cylinder deadbolt with a UL 3-hour fire rated latch. The Hager 3118 is closest to the DL2213 in operation, being Grade 1 with a 6-pin cylinder and key outside, thumbturn inside.
10) Do I have to specify handing on a Corbin Russwin DL2213?
No handing to call out. The DL2213 is non-handed, so the same part goes on a left-hand or right-hand door with no extra kit and no field conversion. For a property manager stocking spares across a building, that means one part number covers every swing.
11) Can the DL2213 be master keyed into an existing Corbin Russwin system?
The keying options cover master keying, construction master keying, security keying, plus visual and concealed key control. Standard cylinder is the L4 keyway; security cylinders are available as an option. Locksmiths matching an existing system should confirm their keyway before ordering, since the stock unit is L4.
12) What ANSI/BHMA designation does the Corbin Russwin DL2213 carry?
It is an ANSI/BHMA E0150 Series auxiliary deadlock, and it is a commercial-rated product rather than a residential one. That is the designation to put on a submittal for an office, school, or healthcare opening where the spec calls out an E-series auxiliary lock.
13) Is a cylindrical deadlock like the DL2213 the right choice, or should I use a mortise deadbolt?
The DL2213 is a bored cylindrical deadlock, so it installs in a standard cross-bore and edge bore rather than a routed mortise pocket. That makes it the straightforward pick for retrofitting an existing bored door or adding a deadbolt above a cylindrical lockset. If the door is already mortise-prepped, a mortise deadbolt such as the Dormakaba D900 small case mortise deadbolt suits that pocket instead.
14) I need a Grade 1 commercial deadbolt but the DL2213 is not the right keyway for my building. What else is comparable?
Grade 1 single cylinder deadbolts from other lines include the Accentra D111 (D Series, cylinder x thumbturn, 1-3/8 to 1-3/4 inch doors), the Dexter DB1000 single cylinder (1-3/8 to 1-7/8 inch), the Falcon D111 heavy duty classroom deadbolt, and the Deltana CL200LM. The Hager 3118 Grade 1 comes with a Schlage C keyway and 6-pin cylinder if that is the system you are matching.
15) What is a lighter-duty alternative to the Corbin Russwin DL2213 for interior or lower-traffic openings?
The DL2213 is a commercial Grade-level cylindrical deadlock rated to ANSI/BHMA E0150. Where the opening does not call for that level, Grade 2 single cylinder deadbolts with the same key-outside, thumbturn-inside operation include the Arrow DBX61, the Dexter DB2000 Series single cylinder, the Cal-Royal CB160 with a tamper-resistant cylinder guard, and the Deltana CL200LA on a 2-3/4 inch backset. At Grade 3, the Cal-Royal ED500 and LSD both offer an adjustable backset for 1-3/8 to 1-3/4 inch doors.
16) Is there a non-keyed version of a deadlock like the DL2213 for an exit-only door?
The DL2213 is keyed, with a cylinder outside and a thumbturn inside. For an exit-only opening where no outside key is wanted, the Arrow E60 is a Grade 2 non-keyed exit deadlock with a blank plate outside and a thumbturn inside, for 1-3/8 to 1-3/4 inch doors. The Callan 205S is a Grade 3 one-sided half-bore deadbolt, which does not require a through-bore for outside trim.
17) Which deadbolts look like substitutes for the DL2213 but are not bored cylindrical locks?
The DL2213 is a cylindrical deadlock, installed in a bored door prep. Several deadbolts are mortise or surface products and need different door preparation: the Dormakaba D900 small case mortise deadbolt and the Emtek 2050 and 2051 European mortise deadbolts with integrated roller latch are mortise cases, the DynaLock 1300 Series is a mortise electric deadbolt, and the Codelocks CL200 is a surface-mounted deadbolt with key override. The Arrow 460 is a mortise lock strike, not a lock at all.
18) We want to move to credential or keypad access on the doors currently using DL2213 deadlocks - what replaces it?
The DL2213 is a mechanical key-and-thumbturn deadlock. If the opening is moving to electronic credentials, the Dormakaba Saffire LX-D is an RFID electronic deadbolt with BLE and electronic lock override, the Dormakaba Nova-D is an RFID multihousing smart electronic deadbolt, and the Delaney KP400 is a Grade 2 electronic deadbolt with a programmable remote. Codelocks offers the CL2200 electronic surface deadbolt and the CL2210 electronic mortise deadbolt, both of which change the door prep from the DL2213 bored prep.
19) The DL2213 is a deadbolt only - what if the opening needs latching as well?
The DL2213 provides a deadbolt function alone, with a 1 inch throw solid steel bolt, so the opening needs a separate latching device. The Falcon H2101 is a Grade 2 entrance interconnected lock that combines a latch with a single cylinder deadbolt in one assembly. Alternatives that latch rather than deadbolt include the International Door Closers DL-4511 deadlatch and the DT-1851 long throw deadlatch, and the IDC DH-1821 hook bolt deadlock for sliding or narrow-stile conditions.
20) What finishes does the DL2213 deadlock come in?
Six: 605 bright brass, 606 satin brass, 612 satin bronze, 613 oil-rubbed satin bronze, 625 bright chrome, 626 satin chrome, and BSP black suede powder coat. Each of those pairs with any of the three cylinder choices. The front is wrought brass or bronze and measures 2-1/4 by 1-1/8 inches.
21) We are matching decorative deadbolts on a residential-style entry - is the DL2213 the right family?
The DL2213 is a commercial deadlock with a wrought brass or bronze front and a plain cylindrical trim. For decorative entry doors, the Baldwin Estates 8011 contemporary double cylinder deadbolt, the Baldwin Reserve contemporary round and square double cylinder deadbolts, the Emtek #11 Tuscany lost wax cast bronze deadbolt, and the Emtek 8323 Modern Disc brass double cylinder are styled trims. Bravura also offers Grade 2 single cylinder deadbolts in traditional round, contemporary round and contemporary square trims.
