Corbin Russwin ED3000 Grade 1 36" Series Crossbar Rim Exit Device, Panic Device Only

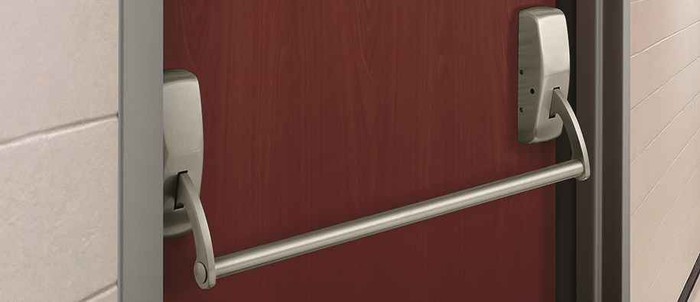

Corbin Russwin ED3210 ED3000 Series 36" Crossbar Rim Exit Device, Wide Stile, Grade 1

Commercial-Grade Crossbar Rim Exit Device for High-Use, High-Abuse Applications

The Corbin Russwin ED3210 is a heavy-duty crossbar rim exit device from the ED3000 Series, engineered for demanding commercial environments where reliable, fast egress is essential. Featuring a standard 36" (914mm) bar that fits doors up to 36" (914mm) wide and a minimum stile width of 4-1/8" (105mm), this wide stile device accommodates a door thickness of 1-3/4" (44mm) and delivers Grade 1 performance. Constructed with base metals including brass, bronze, and stainless steel, the ED3210 is built to withstand the rigors of high-traffic facilities such as schools, healthcare institutions, and government buildings.

Professional Features & Benefits

• Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
• Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
• Non-handed device (except double cylinder and lever trim which are handed)
• Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
• Standard single-point 1/4-turn hex key dogging on panic devices
• Free Wheeling levers for vandal resistance on trim
• SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
• Electrified options including delayed egress, electric latch retraction, and electric dogging
• UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
• Full range of trim with Muséo® and Vineyard™ collections
• ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
• PathLite™ photoluminescent touchpad cover option available
• Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

• Grade: ANSI/BHMA A156.3 Grade 1
• Handing: Non-handed standard (lever trim and double cylinder devices are handed)
• Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
• Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
• Minimum Stile Width: 4-1/2" (114mm)
• Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
• Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
• Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
• Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
• Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
• Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
• Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
• Warranty: Five-year limited

Professional Applications

• Schools and Universities
• Healthcare Facilities
• Government and Municipal Buildings
• Commercial and Industrial Facilities
• Office and Retail Complexes
• Transportation Facilities
• Hotels and Conference Centers

Why Choose Corbin Russwin Quality?

Corbin Russwin ED3000 Series exit devices deliver professional-grade reliability through heavy-duty construction using base metals — brass, bronze, and stainless steel — engineered for high-use, high-abuse commercial environments. The ED3210 meets Grade 1 performance standards and is available in configurations to satisfy both panic and fire opening requirements, ensuring code-compliant installations across a wide range of facilities. Backed by a 1 Year Limited warranty, Corbin Russwin exit devices are a trusted choice for architects, contractors, and facility managers who demand dependable performance.
