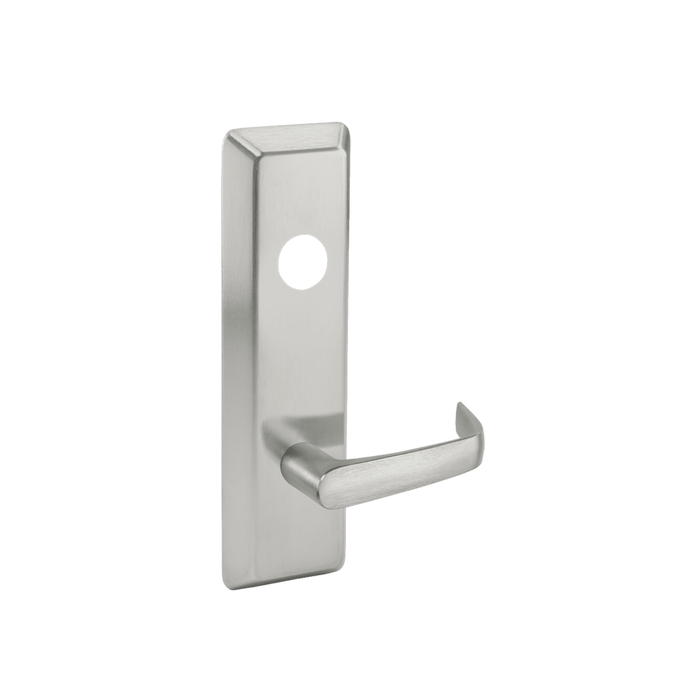

Corbin Russwin x859ET ED4000 Series Storeroom Function SecureBolt Exit Device Trim for Rim, Surface, and Concealed V.R. Applications

Commercial-Grade Storeroom Exit Device Trim with Key-Controlled Entry

The Corbin Russwin ED4000 Series x859ET Exit Device Trim delivers professional-grade storeroom function security for commercial and institutional facilities. Designed for rim, surface vertical rod, and concealed vertical rod exit device configurations, this trim provides ANSI Function 09 storeroom operation — allowing entrance by knob or lever only when released by key, with the key removable only when locked. Available in fourteen architectural finishes and featuring lever designs that maintain a seamless design continuum with the broader Corbin Russwin hardware line, this ADA-compliant trim is engineered for demanding commercial applications.

Professional Features & Benefits

• Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
• Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
• Non-handed device (except double cylinder and lever trim which are handed)
• Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
• Standard single-point 1/4-turn hex key dogging on panic devices
• Free Wheeling levers for vandal resistance on trim
• SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
• Electrified options including delayed egress, electric latch retraction, and electric dogging
• UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
• Full range of trim with Muséo® and Vineyard™ collections
• ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
• PathLite™ photoluminescent touchpad cover option available
• Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

• Grade: ANSI/BHMA A156.3 Grade 1
• Handing: Non-handed standard (lever trim and double cylinder devices are handed)
• Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
• Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
• Minimum Stile Width: 4-1/2" (114mm)
• Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
• Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
• Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
• Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
• Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
• Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
• Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
• Warranty: Five-year limited

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments and Stockrooms
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin exit device trim products deliver professional-grade reliability with lever designs engineered for design continuity across the full Corbin Russwin hardware line. The ED4000 Series trim is ADA compliant and available in fourteen architectural finishes, backed by a 1-year limited warranty. As an ASSA ABLOY Group brand, Corbin Russwin is engineered for demanding commercial and institutional applications where dependable, code-compliant performance is essential.
