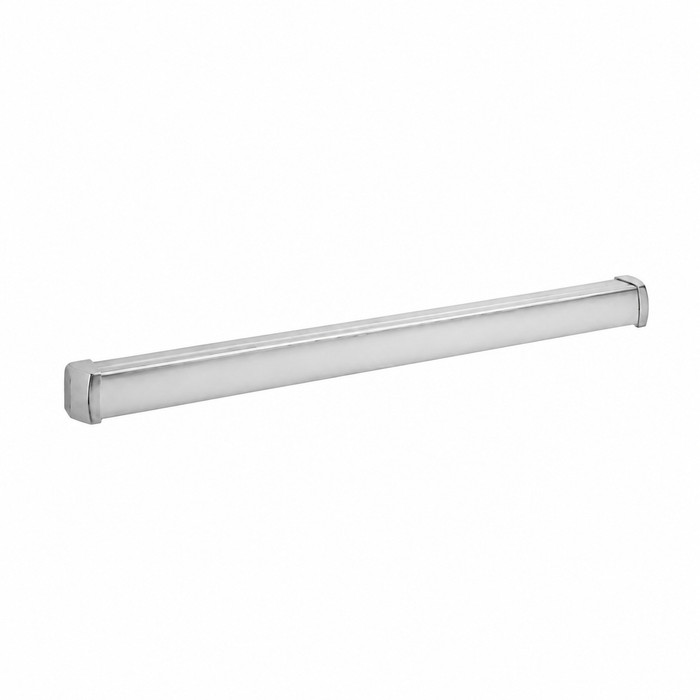

Corbin Russwin ED5000DB 36" Inactive Dummy Bar

Corbin Russwin ED5000DB Grade 1 36" Inactive Dummy Bar

(No reviews yet) Write a Review

Model: ED5000DB 630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,238.74
$729.12
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin ED5000DB 36" Inactive Dummy Bar | Wide Stile Concealed Vertical Rod Exit Device

Grade 1 Commercial Dummy Bar for Wide Stile Concealed Vertical Rod Applications

The Corbin Russwin ED5000DB is a 36" inactive dummy bar engineered for wide stile concealed vertical rod exit device applications in demanding commercial environments. Part of the renowned ED5000 Series, this reversible dummy bar delivers the smooth lines and professional aesthetics that Corbin Russwin is known for, while meeting the rigorous life-safety and security requirements of Grade 1 commercial door hardware. Designed for frequent-use applications including schools, factories, hotels, theaters, office buildings, retail complexes, and government facilities, the ED5000 Series is built to perform where dependability matters most.

Professional Features & Benefits

  • Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
  • Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Non-handed device (except double cylinder and lever trim which are handed)
  • Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
  • Standard single-point 1/4-turn hex key dogging on panic devices
  • Free Wheeling levers for vandal resistance on trim
  • SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
  • Electrified options including delayed egress, electric latch retraction, and electric dogging
  • UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
  • Full range of trim with Muséo® and Vineyard™ collections
  • ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
  • PathLite™ photoluminescent touchpad cover option available
  • Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

  • Grade: ANSI/BHMA A156.3 Grade 1
  • Handing: Non-handed standard (lever trim and double cylinder devices are handed)
  • Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
  • Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
  • Minimum Stile Width: 4-1/2" (114mm)
  • Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
  • Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
  • Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
  • Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
  • Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
  • Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
  • Warranty: Five-year limited

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities and Schools
  • Healthcare Institutions
  • Hotels and Hospitality Properties
  • Retail Establishments and Shopping Complexes
  • Industrial Facilities and Factories
  • Government and Municipal Buildings
  • Theaters and Assembly Occupancies

Why Choose Corbin Russwin Quality?

Corbin Russwin ED5000 Series exit devices and accessories deliver professional-grade reliability backed by testing that exceeds industry standards — including certification of the ED5800 concealed vertical rod exit device to 3.25 million successful cycles, more than 6 times the required threshold. The entire ED5000 Series is supported by a 5-year warranty, reflecting Corbin Russwin's commitment to durability and life-safety performance. Engineered for demanding commercial applications where dependable, code-compliant performance is essential.

Manufacturer Resources

ED5000 Series Exit Devices

Product Specs

Series:
ED5000 Series
Grade:
Grade 1
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Inactive Dummy Bar
Product Type:
Exit Devices - Inactive Dummy Bar
Subcategory:
Concealed Vertical Rod
Commercial/Residential:
Commercial
Stile Type:
Wide Stile
Lock Function:
Dummy
Product Model:
ED5000DB
Product Function:
Dummy
Door Hand Direction:
Reversible
Product Length:
36"
Dogging Configuration:
Less Dogging
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Corbin Russwin ED5000DB 630 – Frequently Asked Questions

1) What does the Corbin Russwin ED5000DB dummy bar actually do on the inactive leaf?
It is a dummy push bar, not a working exit device. The ED5000DB gives the inactive leaf of a pair the same look and push-bar height as the active leaf, but there is no latching function behind it and nothing retracts. Function is listed as Dummy. Use it where the inactive leaf is held by flush bolts or a constant-latching arrangement and you only need the matching bar face.
2) Will a 36 inch dummy bar fit my 3 foot door, and can it be cut down?
The 36 inch bar covers doors from 30 to 36 inches wide and can be field cut for anything in that range, so a standard 3-0 leaf takes it as supplied. For doors outside that band, the ED5000 Series bar is also offered in 24 inch and 48 inch lengths.
3) What is the minimum stile width for the Corbin Russwin ED5000 dummy bar?
4-1/2 inches (114mm). This is wide stile hardware, so aluminum storefront leaves with narrow 2 to 3 inch stiles will not take it. On a narrow stile opening you need a narrow stile device family instead.
4) What thickness of door does ED5000 Series hardware mount on?
1-3/4 inch (44mm) is the standard, which is the usual commercial door thickness. The series also offers 2 inch with the D200 option and 2-1/4 inch with the D214 option, so a thicker custom or acoustic leaf can be handled by calling out that suffix on the order.
5) Will this dummy bar match the concealed vertical rod devices already on my other doors?
It is built for wide stile concealed vertical rod applications in the ED5000 Series, so on a pair where the active leaf carries an ED5000 CVR device the inactive leaf gets the same bar profile and line. It is supplied in 630 satin stainless steel, so confirm your existing devices are the same finish if appearance across the opening is the point of adding it.
6) Does the ED5000DB dummy bar have to be ordered left or right hand?
No handing to specify. The bar is reversible and non-handed, so one part number covers either leaf of a pair. Within the ED5000 Series, only lever trim and double cylinder devices are handed, and neither applies to a dummy bar.
7) Does this dummy bar come with dogging?
No. It ships less dogging, which is consistent with the function: there is nothing to hold retracted on a dummy bar. Hex key dogging is a feature of the live ED5000 panic devices, not of the dummy.
8) How far does the ED5000 bar stick out from the door face?
Projection is 3-1/4 inches (83mm) in the active position and 2-3/4 inches (70mm) when dogged. That matters for corridor clearance and for door-to-wall swing on a tight vestibule, and it is the dimension to use when checking that the inactive leaf bar will not foul a return wall or an adjacent leaf.
9) Is the ED5000DB rated for commercial traffic or is it light duty trim?
Grade 1, the heaviest commercial rating, and it is a commercial-only product rather than residential trim. Schools, hotels, theaters and government buildings are the typical applications for the series, and the dummy bar is built to the same standard as the live devices it sits alongside.
