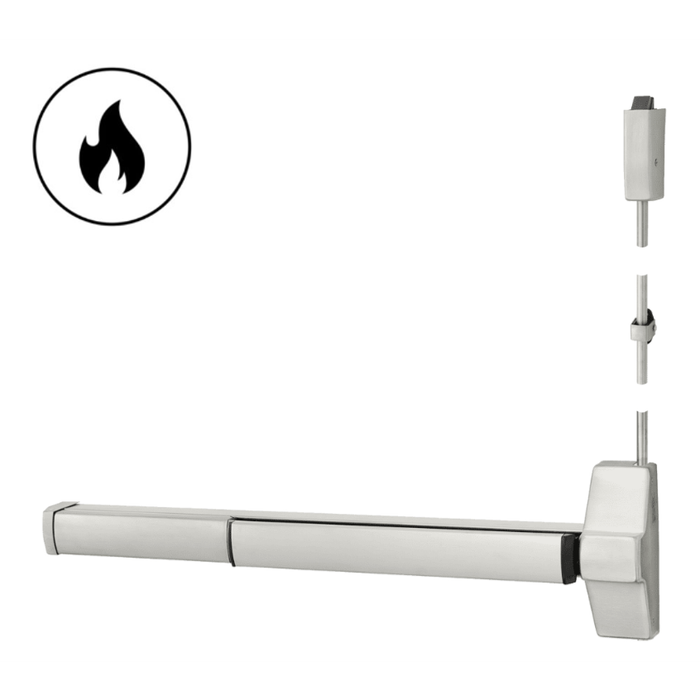

Corbin Russwin ED5470B Grade 1 36" 1-1/2 Hour Fire Rated Surface Vertical Less Bottom Rod Exit Device

Corbin Russwin ED5470B Grade 1 36" 1-1/2 Hour Fire Rated Surface Vertical Less Bottom Rod Exit Device

(No reviews yet) Write a Review

Model: ED5470B-630
$3,468.77
$2,112.55
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,468.77
$2,112.55
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin ED5470B 36" Surface Vertical Rod Exit Device, 1-1/2 Hour Fire Rated, Wide Stile, Less Bottom Rod

ED5000 Series Commercial-Grade Surface Vertical Rod Exit Device with Fire Rating and Flexible Bar Length Options

The Corbin Russwin ED5470B is a Grade 1, 1-1/2 Hour Fire Rated surface vertical rod exit device from the trusted ED5000 Series, engineered for wide stile doors with a minimum stile width of 4-1/2" (114mm). The standard 36" (914mm) push bar accommodates doors from 30" to 36" (762mm–914mm), with optional 24" (610mm) and 48" (1219mm) bar lengths available for broader door width coverage up to 48" (1219mm). Designed for the Less Bottom Rod (M55) configuration, this fire-rated device includes a standard Heat Activated Door Bolt (Popper) and features a 3/4" (19mm) throw stainless steel pullman-type top latchbolt with automatic deadlatching, plus a 5/8" (16mm) throw bottom deadbolt held retracted during door swing, making it ideal for demanding commercial life-safety applications.

Professional Features & Benefits

  • Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
  • Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Non-handed device (except double cylinder and lever trim which are handed)
  • Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
  • Standard single-point 1/4-turn hex key dogging on panic devices
  • Free Wheeling levers for vandal resistance on trim
  • SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
  • Electrified options including delayed egress, electric latch retraction, and electric dogging
  • UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
  • Full range of trim with Muséo® and Vineyard™ collections
  • ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
  • PathLite™ photoluminescent touchpad cover option available
  • Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

  • Grade: ANSI/BHMA A156.3 Grade 1
  • Handing: Non-handed standard (lever trim and double cylinder devices are handed)
  • Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
  • Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
  • Minimum Stile Width: 4-1/2" (114mm)
  • Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
  • Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
  • Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
  • Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
  • Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
  • Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
  • Warranty: Five-year limited

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities and Schools
  • Healthcare Institutions
  • Hotels and Hospitality Properties
  • Retail and Commercial Complexes
  • Industrial Facilities and Factories
  • Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin ED5000 Series exit devices are engineered to meet rigorous life-safety and security requirements, with all devices undergoing extensive lab and field testing that goes beyond industry standards. The ED5000 Series is backed by a 5 Year Limited warranty and is Grade 1 rated, delivering dependable performance in high-traffic commercial applications such as schools, factories, hotels, theaters, office complexes, and government buildings. The ED5470B surface vertical rod exit device combines fire-rated compliance, flexible field configuration, and durable stainless steel and tubular brass construction for installations where reliability and code compliance are essential.

Manufacturer Resources

Corbin Russwin Condensed Catalog

Product Specs

Series:
ED5000 Series
Grade:
Grade 1
Warranty:
5 Year Limited
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Vertical Rod
Product Type:
Exit Devices - Surface Vertical Rod
Subcategory:
Surface Vertical Rod
Stile Width:
4-1/2"
Commercial/Residential:
Commercial
UL Listing Type:
1-1/2 Hour Fire Rated
Stile Type:
Wide Stile
Lock Function:
Exit Only, Accepts Trim
Product Model:
ED5470B
Product Function:
Exit Only, Accepts Trim
Door Hand Direction:
Reversible
Door Thickness Range:
1-3/4"
Product Length:
36"
Dogging Configuration:
Hex Key Dogging
Door Dimension Height:
84"
Fire Rating:
Yes
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Corbin Russwin ED5470B-630 – Frequently Asked Questions

1) What does less bottom rod mean on the ED5470B, and will the door still latch?
Less bottom rod (M55) strips out the bottom rod and floor strike, so nothing runs to the threshold and there is no bottom latch to collect dirt or catch a mop. The device latches at the top only, using a 3/4 inch throw stainless pullman latchbolt with a deadlocking auxiliary latch. Because the ED5470B is fire rated, it ships with a heat activated door bolt (popper) that drops into the floor under fire conditions to hold the leaf. If you want a rod and latch at the floor for normal daily security, order the full bottom rod configuration instead.
2) Is the Corbin Russwin ED5470B approved for a fire rated door opening?
Yes. The ED5470B is UL listed 1-1/2 hour fire rated fire exit hardware, and the ED5000 Series carries UL/cUL panic and 3 hour fire exit hardware listings along with NFPA 101 and NFPA 80 compliance, ANSI/BHMA A156.3 Grade 1, ADA compliance on lever trims and pulls, and California State Fire Marshal approval. Note that fire exit hardware cannot be dogged down: on a fire door, order the M51 less dogging option rather than the standard hex key dogging.
3) Which dogging option should I order on a Corbin Russwin ED5470B exit device?
Three choices. Standard is single point 1/4 turn hex key dogging, which lets you hold the latch retracted during business hours on a non-fire opening. M52 is cylinder dogging, dogged with a key rather than a hex wrench, and ships less cylinder so you supply a mortise cylinder in your own keyway. M51 is less dogging, which is what you use on a fire rated opening where holding the latch retracted is not permitted. All three are offered in every finish.
4) Will a surface vertical rod device secure a pair of doors without a mullion?
Yes, that is the reason to pick one. A vertical rod device latches into the head frame rather than into a strike on the adjacent leaf, so a pair of doors is secured with no center mullion in the way, which keeps the full clear opening for gurneys, carts and furniture. A rim device needs either a mullion between the leaves or a strike on the inactive leaf. On the ED5470B, the top latch is a 3/4 inch throw pullman into a surface mounted 3/8 inch roller strike with a positive locking plate and shims for alignment.
5) What is the closest fire rated alternative to the Corbin Russwin ED5470B from another brand?
For a like for like wide stile fire rated surface vertical rod, the Sargent 2727 and the TownSteel EF9727 are the closest matches, both Grade 1, fire rated, wide stile exit only devices; the TownSteel is heavy duty and rated for wood doors. The Adams Rite 3100 Series is a Grade 1 fire rated wide stile device for 1-3/4 inch doors. If your stile is narrow, the Arrow S1150 is fire rated and covers narrow or wide stile. Watch out for lookalikes: the Adams Rite 8100, Von Duprin 2227, Falcon 20 and 25, and TownSteel ED8927 are all wide stile Grade 1 devices but are not fire rated, so they cannot go on a fire door.
6) The door is not a fire door - what surface vertical rod exit device can I use instead of the Corbin Russwin ED5470B?
On a non-rated opening the fire rating stops being a requirement and the field opens up considerably. In wide stile Grade 1, the Von Duprin 2227-3FT is a 36 inch non-handed surface vertical rod device for 1-3/4 inch doors, the Falcon 20 Series 36 inch and the Falcon 25-V-EO 3 foot are both wide stile Grade 1 exit only devices for 1-3/4 inch doors, and the TownSteel ED8927 is a Grade 1 wide stile device sized 36 by 84 inches. All four are listed as not fire rated, so they belong only on openings with no rating requirement, unlike the ED5470B, which is a 1-1/2 hour fire rated device.
7) Which vertical rod exit devices look like a substitute for the Corbin Russwin ED5470B but will not work on a fire rated opening?
Several devices match the ED5470B on width, stile and grade but carry no fire rating, so they cannot go on a rated opening. The TownSteel ED8927 at 36 by 84 inches is Grade 1 wide stile and not fire rated. The BEST Precision 2201 Series 36 inch wide stile and the BEST Precision 5201 Series 36 inch reversible device are both listed as not fire rated. The Von Duprin 7827 3 foot Grade 1 device with hex key dogging matches the ED5470B's hex key dogging but is also not fire rated. The Arrow 3700 Series 30 inch Grade 1 wide stile pushpad and the Adams Rite 8100 Series 30 inch Grade 1 wide stile life-safety device are likewise not fire rated. The ED5470B is a 1-1/2 hour fire rated device, which is what separates it from all of them.
8) I have a pair of doors and only need a pull on the inactive leaf - is the Corbin Russwin ED5470B the right device for that leaf?
No. The ED5470B is an exit only device that accepts trim, meaning it latches and operates. For a leaf that needs the appearance of an exit device without the latching function, the Sargent 12-8710 is a fire rated surface vertical rod device with a wide stile design and a dummy function, Grade 1 in the 8700 Series. Use the ED5470B on the leaf that has to unlatch and egress, and the dummy device where only the matching push bar appearance is wanted.
9) Is the ED5470B handed, or can I use the same device on left and right hand doors?
Non-handed. The ED5470B is field reversible, so one device covers both hands and you can stock a single part across a building. The exceptions are lever trim and double cylinder devices, which are handed and have to be specified for the swing.
10) How much does the ED5470B stick out into the corridor?
Projection is 3-1/4 inches (83mm) with the bar active and 2-3/4 inches (70mm) when dogged. That is the number to check against your required clear egress width in a tight corridor or against a wall the door swings back to.
11) Can I put a lever or a pull on the outside of an ED5470B, or is it exit only?
The ED5470B is exit only as supplied but accepts trim, so outside lever or pull trim can be added from the Corbin Russwin range, including the Museo and Vineyard collections. Levers are free wheeling for vandal resistance, and lever trims and pulls comply with ADA. Remember that lever trim is handed, so specify the hand when you add it.
12) Is there a lighter duty or Grade 2 alternative to the Corbin Russwin ED5470B for a low traffic non-rated door?
The ED5470B is a Grade 1 device built for demanding commercial life-safety applications. Where the opening is not rated and the traffic is lighter, the TownSteel TS5100 Series at 36 by 84 inches is a Grade 2 wide stile surface vertical rod device and the Dexter ED2000 Series is a Grade 2 surface vertical rod panic device, both listed as not fire rated. The Design Hardware 2000V at 33 inches is a standard duty surface vertical rod device and the Design Hardware 1000V at 33 inches is the heavy duty version of the same family; neither is fire rated. The Orca Hardware OED56 Series 36 inch is a standard duty exit only vertical rod device configured less bottom rod, the same rod configuration as the ED5470B, and it is not fire rated.
13) I need a Grade 1 vertical rod exit device on a wood door - does the Corbin Russwin ED5470B suit, or is there another option?
Three devices in the surface vertical rod class carry an explicit wood door compatible listing. The TownSteel EF9727 at 36 by 84 inches is fire rated, Grade 1 certified, heavy duty, wide stile and wood door compatible. The TownSteel ED8927 at 36 by 84 inches is Grade 1 wide stile and wood door compatible but not fire rated, and the TownSteel ED3727 at 36 by 84 inches is Grade 1 narrow stile, wood door compatible and not fire rated. By contrast the Von Duprin 7527 and 7827 3 foot Grade 1 devices are both listed as not wood door compatible. If the wood door is a rated assembly, the EF9727 is the one of those that carries a fire rating, the same as the ED5470B.
14) What are the differences between the Sargent 2727 and the Sargent 3727 surface vertical rod exit devices as alternatives to the Corbin Russwin ED5470B?
Both are Grade 1 wide stile surface vertical rod exit devices with an exit only function, matching the ED5470B on grade, stile type and function. The 2727 is in the Sargent 20 Series, is reversible, and is fire rated. The 3727 is in the Sargent 30 Series and is described with a standard push bar. Reversibility on the 2727 lines up with the ED5470B, which is a reversible, non-handed device in its standard form.
15) What finishes does the Corbin Russwin ED5470B come in, and can I match the other door hardware in the building?
Eleven finishes: 605 bright brass, 606 satin brass, 611 bright bronze, 612 satin bronze, 613 satin bronze oil rubbed, 619 satin nickel, 625 bright chrome, 629 bright stainless, 630 satin stainless, and BSP black suede powder coat. Every one is available with any of the three dogging configurations. 630 satin stainless is the usual commercial standard, so it is the safest match if the rest of your openings were specified generically.
16) Is the ED5470B tough enough for a school or hospital exit that gets hit all day?
It is built for it. The chassis is heavy duty cold forged steel with electroplated corrosion resistance, latching is stainless steel, and the device is ANSI/BHMA A156.3 Grade 1, the highest durability grade for exit devices. The ED5000 Series is used in schools, hospitals, hotels, factories, theaters, offices and government buildings, and it is a commercial device, not a light residential one.
17) Are the Dexter ED1000 and ED1500 vertical rod devices equivalent to the Corbin Russwin ED5470B?
The Dexter ED1000 Series and ED1500 Series are both Grade 1 surface vertical rod exit devices, matching the ED5470B on grade, and the ED1000 is configured exit only, the same function class. The ED1500 is listed as not fire rated, so it does not carry the 1-1/2 hour fire rating the ED5470B holds and should not be specified for a rated opening.
How fast can I get the Corbin Russwin ED5470B-630 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Corbin Russwin ED5470B-630 come with a warranty?
Absolutely. The Corbin Russwin ED5470B-630 is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Corbin Russwin ED5470B-630?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Corbin Russwin ED5470B-630 from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
