Corbin Russwin ML197 Grade 1 V...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$280.00
$120.97

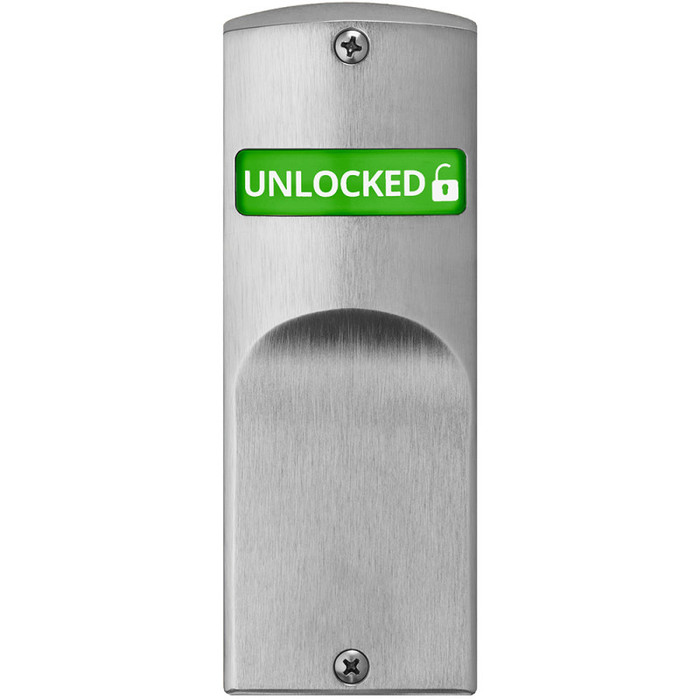

Corbin Russwin ML197 V01 Indicator for Sectional Trim without Input (Blank), Interior displays "Unlocked / Locked" in Green & Red

Corbin Russwin ML197 Grade 1 V01 Indicator for Sectional Trim without Input (Blank), Interior displays "Unlocked / Locked" in Green & Red

(No reviews yet) Write a Review

Model: ML197-RH-626-V01
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$280.00
$120.97
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin ML197-V01 Mortise Lock Status Indicator for Sectional Trim, Interior "Unlocked/Locked" Green & Red, Field Reversible

ML2000 Series Single Indicator for Interior Sectional Mortise Trim

The Corbin Russwin ML197-V01 is a single status indicator designed for use with Interior Sectional Mortise Trim in the ML2000 Series. This indicator displays "Unlocked/Locked" wording in Green and Red on the interior side, with no indicator on the outside, making it ideal for identifying occupancy or communicating the locked/unlocked status of a room. The V01 configuration functions as an Indicator without Input (Blank) and is field reversible for flexible installation. Compatible with ML2000 Series functions including ML2003, ML2011, ML2040, ML2059, ML2073, and ML20609 x NAC x PHR.

Professional Features & Benefits

  • Single Indicator Configuration (V01): Provides clear interior "Unlocked/Locked" status display in Green and Red with no outside indicator, ideal for room occupancy and access status communication.
  • Field Reversible Design: Can be reversed in the field to accommodate varying door handing requirements, reducing installation complexity and inventory needs.
  • Blank (No Input) Function: Operates as an indicator without input, providing a clean, unobtrusive exterior appearance while delivering clear interior status information.
  • Surface Mounted Sectional Trim: Surface-mounted construction simplifies installation on interior sectional mortise trim without requiring extensive door preparation.
  • Torx Security Screws Included: Torx security screws are provided with the unit, enhancing tamper resistance and maintaining a secure, professional installation.
  • Optional Directional Arrow Engraving: Available with optional directional arrow engraving for enhanced wayfinding and user guidance in commercial environments.
  • Broad ML2000 Series Compatibility: Compatible with ML2003, ML2011, ML2040, ML2059, ML2073, and ML20609 x NAC x PHR functions for versatile application across the ML2000 Series mortise lockset platform.
  • Manufacturer Warranty: Backed by a 10 Year Limited warranty for added confidence and long-term protection.

Technical Specifications

  • Product Group: Mechanical Locks
  • Warranty: 10 Year Limited
  • Product Subgroup: Status Indicators
  • Product Type: Indicators
  • Commercial/Residential: Commercial
  • Lock Type: Mortise
  • Parts and Accessories Type: Replacement Parts
  • Product Attribute: Parts and Accessories
  • Product Model: ML197
  • Department: Door Hardware

Installation & Operation

This indicator component is designed for use with compatible Interior Sectional Mortise Trim in the ML2000 Series mortise lockset platform. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing ML2000 Series hardware and confirm the correct function (ML2003, ML2011, ML2040, ML2059, ML2073, or ML20609 x NAC x PHR) before installation. Note: this component is not compatible with master ring cylinders.

Professional Applications

  • Commercial Office Buildings
  • Healthcare Institutions and Medical Offices
  • Educational Facilities
  • Government and Municipal Buildings
  • Hospitality and Hotel Properties
  • Multi-Tenant Residential and Mixed-Use Properties
  • Retail and Commercial Establishments

Why Choose Corbin Russwin Quality?

Corbin Russwin ML2000 Series status indicator products are engineered for demanding commercial applications where clear, reliable room status communication is essential. The ML197-V01 features surface-mounted sectional trim construction with Torx security screws and a field-reversible design for professional-grade flexibility. Backed by a 10 Year Limited warranty, this indicator delivers the dependable performance and long-term value that commercial door hardware professionals expect from Corbin Russwin.

Product Specs

Product Group:
Mechanical Locks
Warranty:
10 Year Limited
Product Subgroup:
Status Indicators
Product Type:
Indicator
Commercial/Residential:
Commercial
Lock Type:
Mortise
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Model:
ML197
Department:
Door Hardware

Corbin Russwin ML197-RH-626-V01 – Frequently Asked Questions

1) Which Corbin Russwin mortise lock functions does the ML197-V01 indicator work with?
The ML197-V01 indicator is built for ML2000 Series mortise locksets using Interior Sectional Trim, and works with the ML2003, ML2011, ML2040, ML2059, ML2073, and ML20609 x NAC x PHR functions. Confirm which function is stamped on your existing lock before ordering, since the indicator is matched to the lock function, not just the series. One thing it will not work with: master ring cylinders.
2) Does the ML197-V01 indicator show the locked status on both sides of the door?
No. Interior side only. The ML197-V01 displays Unlocked in green and Locked in red on the room side, with no indicator on the outside of the door. If you need the status visible from the corridor, this is the wrong configuration.
3) What does "without input (Blank)" mean on the Corbin Russwin ML197-V01?
V01 is the indicator with no cylinder or turn prep through it. The exterior face stays blank, so nothing is keyed or operated through the indicator itself, it only reports the status the lock is already in. If your opening needs a cylinder or thumbturn running through the indicator trim, you need a different V configuration.
4) Do I need to order the ML197-V01 indicator left hand or right hand?
Both LH and RH are offered, but the unit is field reversible, so handing can be corrected on site if the wrong one arrives. Order to match the door handing where you can to save a step at install.
5) Can I add the ML197-V01 indicator to a mortise lock that already has escutcheon trim?
No. It is made for Interior Sectional Trim, which is the separate rose-and-lever style trim, not a full-length escutcheon plate. On a sectional opening it surface mounts to the interior trim, so there is no extra door machining beyond what the ML2000 lock already requires.
6) What is the Schlage equivalent of the Corbin Russwin ML197-V01 indicator?
The closest Schlage counterpart is the 47804351 L Series Retrofit Indicator Kit for Sectional Lock with Cylinder, which carries a LOCKED/UNLOCKED message and is an occupancy indicator. The two differ in how they mount to the lock: the ML197-V01 is a surface-mounted indicator for Interior Sectional Mortise Trim on the Corbin Russwin ML2000 Series, with the interior face reading Unlocked/Locked in green and red and no indicator on the outside. The Schlage kit is built for L Series sectional trim with a cylinder. Match the indicator to the lock family already in the door rather than crossing brands on trim.
7) Our hotel guest rooms need a DO NOT DISTURB indicator. Is the ML197-V01 the right part?
No. The ML197-V01 displays Unlocked/Locked wording in green and red and nothing else. For do-not-disturb messaging, the Schlage 47804353 sectional indicator uses rose trim with interior or exterior cylinder prep and carries a DO NOT DISTURB message. If the wording needs to be language-neutral across an international guest base, the Schlage 47804354 is the same rose-trim sectional indicator with symbols only instead of text.
8) The opening needs a cylinder through the indicator. Does the ML197-V01 work?
The ML197-V01 is the V01 configuration, an indicator without input, so it is blank with no cylinder prep and presents a clean exterior with no indicator on the outside. If the opening requires a cylinder in the same trim position, look at the Schlage 47804351 or 47804352 retrofit indicator kits, which are built for sectional locks with a cylinder, or the 47804353 and 47804354 sectional rose-trim indicators, which offer interior or exterior cylinder prep. Those are Schlage L Series parts, so the lock body has to match.
9) Can I use a Schlage sectional indicator kit on a Corbin Russwin ML2000 mortise lock?
Plan on no. The ML197-V01 is engineered as a replacement part for Corbin Russwin Interior Sectional Mortise Trim and is listed as compatible with ML2000 Series functions including ML2003, ML2011, ML2040, ML2059, ML2073, and ML20609 x NAC x PHR. The Schlage 47804351 and 47804352 kits are described as L Series retrofit indicator kits, a different lock platform. Indicator trim is keyed to the lock chassis and spindle arrangement it was designed around, so stay within the family on the door.
10) What finishes does the Corbin Russwin ML197 indicator come in to match existing trim?
Fourteen finishes, each available in both handings: 605 bright brass, 606 satin brass, 611 bright bronze, 612 satin bronze, 613 satin bronze oil-rubbed, 613E dark oxidized satin bronze equivalent, 618 bright nickel, 619 satin nickel, 625 bright chrome, 626 satin chrome, 629 bright stainless, 630 satin stainless, 722 black oxidized bronze oil-rubbed, and BSP black suede powder coat. For a building already standardized on 626 or 630, match the code on the existing lever rose.
11) Which indicator suits a rose trim instead of sectional trim?
The ML197-V01 is made for sectional trim, specifically Interior Sectional Mortise Trim in the ML2000 Series, so it is not the part for a rose-trim opening. The Schlage 47804353 and 47804354 are sectional indicators supplied with rose trim and interior or exterior cylinder prep, one with DO NOT DISTURB wording and one with symbols only. Confirm the lock family before substituting.
12) We standardize on one indicator across left and right hand doors. Which option keeps the stock count lowest?
The ML197-V01 is field reversible, so a single part can be adapted to varying door handing and it ships in left hand and right hand configurations across finishes from 605 bright brass and 606 satin brass through 626 satin chrome, 630 satin stainless steel, 722 black oxidized bronze oil-rubbed, and BSP black suede powder coat. The Schlage comparables, the 47804351 and 47804352 retrofit indicator kits and the 47804353 and 47804354 sectional rose-trim indicators, are differentiated by message rather than by handing. For a Corbin Russwin ML2000 facility, carrying the reversible ML197-V01 in the house finish is the tightest way to cover both hands.
13) Does the ML197-V01 come with mounting screws?
Torx security screws ship with the indicator. That keeps the face tamper resistant in a restroom, exam room, or dorm application, but plan on having the correct Torx driver on the truck at install.
14) Can I get directional arrow engraving on the Corbin Russwin ML197 indicator?
Yes, optional directional arrow engraving is available on the ML197, which helps in corridors and wayfinding-heavy layouts like healthcare and education buildings. Specify it at the time of order, since it is an engraving option and not something you add later.
