Corbin Russwin ML2000/ML2000HS...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$58.99
$52.74

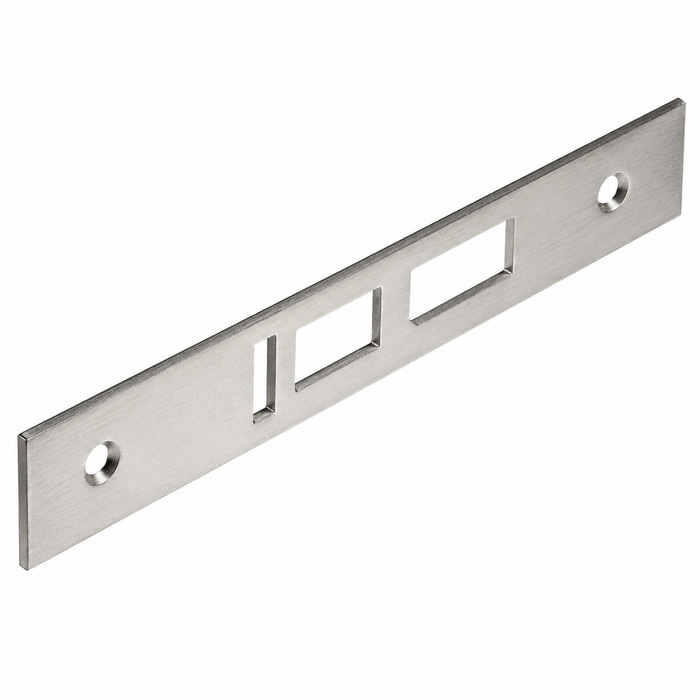

Corbin Russwin Corbin Russwin ML2000/ML2000HS Mortise Lock Series Part, 1-1/4" Standard Armored Front, Deadbolt, Latchbolt, Auxiliary Latch 402F30

Corbin Russwin ML2000/ML2000HS Grade 1 Mortise Lock Series Part, 1-1/4" Standard Armored Front, Deadbolt, Latchbolt, Auxiliary Latch

(No reviews yet) Write a Review

Model: 402F30 626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$58.99
$52.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin 402F30 1-1/4" Standard Armored Front for ML2000 Mortise Lock Series Deadbolt, Latchbolt & Auxiliary Latch Replacement Part

Commercial-Grade Mortise Lock Replacement Component for ML2000 Series

The Corbin Russwin 402F30 is a 1-1/4" Standard Armored Front replacement part engineered specifically for the Corbin Russwin ML2000 and ML2000HS Mortise Lock Series. Designed for commercial door hardware applications, this non-handed component provides a precise-fit armored front plate compatible with deadbolt, latchbolt, and auxiliary latch configurations. Its 1-1/4" product width ensures direct compatibility with ML2000 Series mortise lock assemblies, making it an ideal replacement part for maintaining the integrity and performance of installed hardware.

Professional Features & Benefits

  • ANSI/BHMA Grade 1 mortise lock per A156.13 Series 1000, Operational and Security Grade 1
  • UL Cycle above and beyond: 14.5 Million Cycles (Verification ID: V875753)
  • Patented Quick Reversible latchbolt — reverse handing without disassembling the lock case
  • Multi-function capability: 12 functions configurable from one ML2054 lockbody
  • Heavy-gauge steel lockcase 5-7/8" x 4" x 15/16"; 1" stainless steel deadbolt, 1" throw
  • 3/4" (19mm) throw anti-friction two-piece latchbolt requires less force to close
  • Wide variety of trim designs including Muséo®, Vineyard™, Behavioral Health (BHSS/BLSS)
  • Status indicator options for locked/unlocked visibility (sectional and escutcheon trim)
  • Motorized Electric Latch Retraction (MELR) available for ML20900 series
  • Thru-bolted trim designs for proper alignment and increased security
  • Can be used with new or existing Corbin Russwin key systems; accepts most other manufacturers' cylinders
  • UL/cUL listed, UL10C positive pressure; 3-hour fire door up to 4' x 10' single or 8' x 10' pair
  • Ten-year mechanical warranty; five-year MELR; two-year electrical

Technical Specifications

  • Grade: ANSI/BHMA A156.13 Series 1000, Operational and Security Grade 1
  • Handing: Handed; quick reversible — re-handed without disassembling the lock case
  • Door Thickness: 1-3/4" (44mm) standard; optional thicknesses available
  • Backset: 2-3/4" (70mm)
  • Lockcase: Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm)
  • Armored Front: Wrought brass, bronze, or stainless steel, 8" x 1-1/4"
  • Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" x 1" x 3/4" (19mm) throw
  • Auxiliary Latchbolt: 9/16" (14mm) effective throw; deadlocking
  • Deadbolt: One-piece stainless steel, 19/32" x 1-1/4" x 1" (25mm) throw
  • Strike: Wrought brass, bronze, or stainless steel, ANSI straight lip, 4-7/8" x 1-1/4" x 1-1/8" lip to center
  • Cylinder: Brass, 6-pin L4 keyway, 0-bitted standard
  • Spacing: C. to c. knob/lever to cylinder: 3-5/8" (92mm); knob/lever to thumbturn: 2-7/16" (62mm)
  • Certifications: ANSI/BHMA A156.13 Grade 1; UL/cUL UL10C 3-hour positive pressure; ADA A117.1; California State Fire Marshal; Windstorm/Hurricane certified
  • Warranty: Ten-year mechanical; five-year MELR; two-year electrical

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin mortise lock components are engineered to commercial-grade standards, delivering the precise fit and reliable performance required for demanding door hardware applications. The ML2000 Series is a trusted platform in commercial security, and genuine replacement parts like the 402F30 Armored Front ensure that installed hardware continues to perform to its original specifications. Designed for non-handed installation and compatibility across deadbolt, latchbolt, and auxiliary latch functions, this component supports the long-term serviceability of Corbin Russwin ML2000 Series mortise lock systems.

Product Specs

Product Group:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Armored Front
Commercial/Residential:
Commercial
Application:
ML2000Mortise Lock; Deadbolt; Latchbolt; Auxiliary Latch
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Door Hand Direction:
Non-Handed
Product Category:
Parts and Accessories
Product Width:
1-1/4"
Department:
Door Hardware

Corbin Russwin 402F30 626 – Frequently Asked Questions

1) Will the Corbin Russwin 402F30 armored front fit my ML2000 mortise lock?
The 402F30 is the 1-1/4 inch standard armored front for the Corbin Russwin ML2000 and ML2000HS mortise lock series, and it covers deadbolt, latchbolt and auxiliary latch configurations. Check the width of the front currently on your lock: this one is 1-1/4 inches, so it suits an ML2000 case prepped for the standard front rather than a narrower or wider front. It is the faceplate assembly that shows on the door edge, not the lock body itself.
2) Do I need to order a left hand or right hand armored front for the ML2000?
No handing to specify. The 402F30 armored front is non-handed, so one part serves left and right hand openings. Handing on the ML2000 lives in the lock case, and that case uses a quick reversible latchbolt that re-hands without disassembly, so a swing change on the door does not mean a different front.
3) Will the 402F30 armored front line up with my existing ANSI strike and 2-3/4 inch backset prep?
Yes, on standard ML2000 prep. The series runs a 2-3/4 inch (70mm) backset with an ANSI straight lip strike at 4-7/8 x 1-1/4 x 1-1/8 inch lip to center. Bolt projections through the front are 3/4 inch (19mm) on the latchbolt, 9/16 inch (14mm) effective on the deadlocking auxiliary latch, and 1 inch (25mm) on the stainless deadbolt. Replacing the front does not change any of those, so the door and frame prep you already have stays good.
4) Is the ML2000 lock still fire rated after I change the armored front?
The ML2000 series is UL/cUL listed to UL10C positive pressure and carries a 3-hour fire door rating up to 4 x 10 feet single or 8 x 10 feet pair. Using the correct genuine ML2000 front keeps the assembly as listed, which is the reason to fit the series part rather than a generic faceplate on a rated opening. The series is also ANSI/BHMA A156.13 Series 1000 Grade 1 for operational and security, and meets ADA A117.1.
5) What size is the ML2000 standard armored front and how much door edge does it cover?
It measures 8 x 1-1/4 inches. That length runs the full ML2000 mortise pocket on the door edge, covering the latchbolt, auxiliary latch and deadbolt openings in one plate. The lock case behind it is 5-7/8 x 4 x 15/16 inches, so the front is longer than the case to bridge the prep.
6) What door thickness does the ML2000 armored front work on?
1-3/4 inch (44mm) is the standard door thickness for the ML2000 series, which is the usual commercial door. Optional thicknesses are available in the series, so on a thicker door confirm the lock was built for it before ordering front parts.
7) What finishes does the Corbin Russwin 402F30 armored front come in, and how do I match the other doors in my building?
Nine finishes: 605 bright brass, 606 satin brass, 612 satin bronze, 613 satin bronze oil-rubbed, 619 satin nickel, 625 bright chrome, 626 satin chrome, 629 bright stainless steel and 630 satin stainless steel. Those are BHMA finish codes, so match the number stamped or specified on the trim already installed rather than matching by eye. 626 and 630 are the two you will find most often on commercial openings.
8) Does this armored front work on an ML2000 with a deadbolt as well as one with just a latch?
One front covers all three. The 402F30 is cut for deadbolt, latchbolt and auxiliary latch, so it fits ML2000 functions with a deadbolt (an entrance or classroom-with-deadbolt setup) and those without. Center-to-center spacing on the series is 3-5/8 inches (92mm) knob or lever to cylinder, and 2-7/16 inches (62mm) knob or lever to thumbturn, so the trim layout above the door edge is unchanged.
9) Is the Corbin Russwin 402F30 armored front suitable for a high-traffic commercial opening?
It is a commercial part. The ML2000 platform is verified to 14.5 million cycles by UL (Verification ID V875753) and rated ANSI/BHMA Grade 1 for both operation and security, which is the tier specified for school, healthcare, office and multi-tenant corridor doors. The armored front itself is wrought brass, bronze or stainless steel depending on finish.
