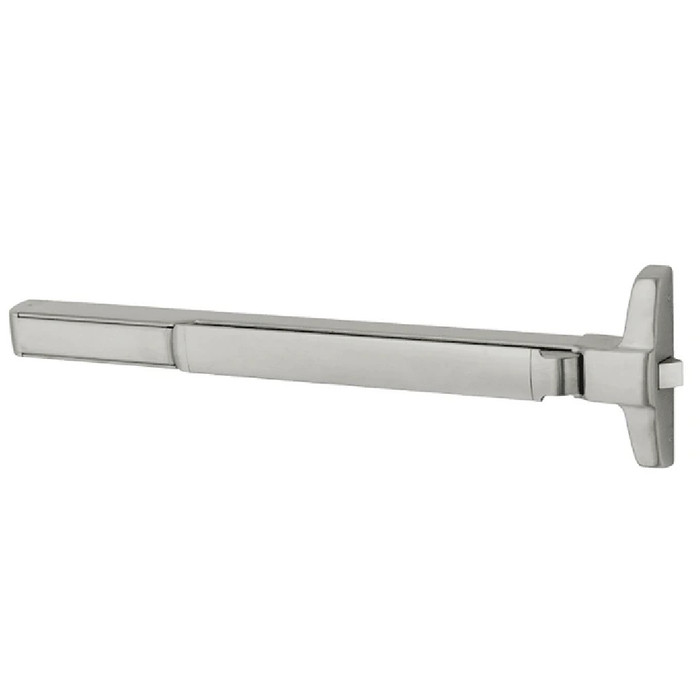

Corbin Russwin PED4201 - 48" Narrow Stile Grade 1 Pushpad Exit Device

Corbin Russwin PED4201 - 48" Narrow Stile Grade 1 Pushpad Exit Device

(No reviews yet) Write a Review

Model: PED4201 613E WO48
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,085.00
$2,167.03
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin PED42041 WO48 48" Narrow Stile Rim Exit Device Grade 1 Pushpad

PED4000 Series Commercial-Grade Rim Exit Device for Narrow Stile Applications

The Corbin Russwin PED42041 WO48 is a 48" Narrow Stile Rim Exit Device from the innovative PED4000 Series, engineered to deliver exceptional elegance, strength, and durability in demanding commercial environments. Designed for doors up to 48" wide with a standard door thickness of 1-3/4" and a maximum door height of 120", this pushpad exit device meets the stringent ANSI/BHMA A156.3 Grade 1 requirements across all configurations. Certified to UL-cUL Fire-Rated standards up to 3 hours and compliant with ADA, NFPA 101, and NFPA 80, it is a trusted solution for code-compliant commercial door openings.

Professional Features & Benefits

  • Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
  • Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Non-handed device (except double cylinder and lever trim which are handed)
  • Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
  • Standard single-point 1/4-turn hex key dogging on panic devices
  • Free Wheeling levers for vandal resistance on trim
  • SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
  • Electrified options including delayed egress, electric latch retraction, and electric dogging
  • UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
  • Full range of trim with Muséo® and Vineyard™ collections
  • ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
  • PathLite™ photoluminescent touchpad cover option available
  • Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles

Technical Specifications

  • Grade: ANSI/BHMA A156.3 Grade 1
  • Handing: Non-handed standard (lever trim and double cylinder devices are handed)
  • Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
  • Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
  • Minimum Stile Width: 4-1/2" (114mm)
  • Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
  • Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
  • Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
  • Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
  • Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
  • Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
  • Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
  • Warranty: Five-year limited

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin PED4000 Series exit devices deliver professional-grade reliability through independently-verified cycle testing that proves an extended product life, backed by a 5 Year Limited warranty. With heavy-duty mounting construction, a robust end cap design for high-impact environments, and a comprehensive certification portfolio including ANSI/BHMA A156.3 Grade 1, UL-cUL Fire-Rated Up to 3 Hours, ADA compliance, and NFPA 101 and NFPA 80 compliance, these devices are engineered for the most demanding commercial applications. The PED4000 Series combines cutting-edge design with proven durability, making it the definitive choice for sophisticated, code-compliant commercial door openings.

Product Specs

Series:
PED4000 Series
Grade:
Grade 1
Warranty:
5 Year Limited
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Rim Exit Devices
Commercial/Residential:
Commercial
Stile Type:
Narrow Stile
Lock Function:
Dummy
Wood Door Compatible:
No
Product Model:
PED4200
Product Function:
Dummy
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4"
Product Size:
48"
Fire Rating:
No
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Corbin Russwin PED4201 613E WO48 – Frequently Asked Questions

1) Is the Corbin Russwin PED4201 48-inch device an active latching exit device or a dummy push pad?
It is a dummy. The PED4200 model on the PED4000 Series is built as a dummy function push pad, so it gives the push-pad look and feel and a place to push, but it does not latch or retract a bolt. On a pair of doors it is the usual way to match the inactive leaf to the active leaf that carries the real panic device. If you need a latching device, order a panic-function rim device instead.
2) What size door does the 48-inch Corbin Russwin PED4000 narrow stile push pad cover?
The 48 inch bar length is the long option in the PED4000 Series, sized for wide leaves; the series standard 36 inch bar covers 30 to 36 inch doors, with 24 inch and 48 inch as the other choices. Maximum door height on the series is 120 inches. Bars can be field cut, so the 48 inch is the one to take for anything above the 36 inch range.
3) Will a narrow stile exit device fit my aluminum storefront stile?
Minimum stile width on the PED4000 Series is 4-1/2 inches (114mm), so the stile face has to be at least that wide. Standard door thickness is 1-3/4 inches, with 2 inch (D200) and 2-1/4 inch (D214) options. It is not rated for wood doors, so plan on aluminum or hollow metal.
4) What other narrow stile Grade 1 rim exit devices work on a 48 inch wide aluminum door besides the Corbin Russwin PED4200?
The Corbin Russwin PED4200 is a narrow stile, Grade 1 rim exit device sized at 48 inches for 1-3/4 inch doors. Narrow stile Grade 1 rim alternatives include the TownSteel ED8900 and ED3700, both narrow stile Grade 1 heavy duty rim devices offered at 36 inches, the Falcon 1590EO and 1790EO narrow stile Grade 1 exit-only devices at 42 inches for 1-3/4 inch doors, and the Detex 40 Advantex, an extra heavy duty narrow stile Grade 1 rim device. Confirm the bar length covers your 48 inch leaf before substituting.
5) I need a fire rated rim exit device for a 48 inch opening - is the Corbin Russwin PED4200 the right pick?
The Corbin Russwin PED4200 48 inch narrow stile rim device is a dummy function device and is not carried as fire rated. For a labeled opening at that width, the Marks USA M9900F 48 inch rim panic device is fire rated and exit only. Narrower fire rated rim options include the Adams Rite 3700 Series 30 inch narrow stile fire rated device, the Orca OED85 36 inch fire rated rim device, and the Dexter ED1000 Series Grade 1 fire rated rim device.
6) The stile on my door is too wide for a narrow stile device - what should I use instead of the Corbin Russwin PED4200?
The Corbin Russwin PED4200 is built for narrow stile aluminum-type doors. On a wide stile door, wide stile Grade 1 rim devices include the Von Duprin 22 Series 36 inch non-handed pushpad rim device for 1-3/4 inch doors, the DORMA 9300 Series 48 inch wide stile panic rim device covering 1-3/4 inch to 2-1/4 inch doors, the TownSteel ED9700 36 inch and ED1100 36 inch wide stile Grade 1 devices, and the Detex 10 Advantex 36 inch wide stile extra heavy duty device.
7) My door is thicker than 1-3/4 inches - which rim exit devices cover that if the Corbin Russwin PED4200 is set up for 1-3/4?
The Corbin Russwin PED4200 is catalogued for 1-3/4 inch doors. For thicker leaves, the Adams Rite 8800 Series narrow stile rim device covers 1-3/4 inch to 2-1/4 inch, the DORMA 9300 Series 48 inch wide stile device covers 1-3/4 inch to 2-1/4 inch, the SDC S6136 Spectra covers 1-3/4 inch to 2 inch, and the Securitron EMB electromechanical exit bar is listed at 2-1/4 inch.
8) How much does a PED4000 rim push pad stick out from the door face?
Projection is 3-1/4 inches (83mm) with the pad at rest and 2-3/4 inches (70mm) when dogged down. That matters where the door swings past a jamb return, a side wall, or into a vestibule with tight clearance, and it is the number to check against traffic flow in a corridor.
9) Is this device handed, or can I use one part number on both leaves?
Non-handed as standard, so the same device works on a left or right hand opening. Handing only comes into play on double cylinder devices and lever trim in the PED4000 Series, which are handed. For a dummy push pad with no trim, you do not need to specify hand.
10) Is the PED4000 Series a Grade 1 device?
Yes, ANSI/BHMA A156.3 Grade 1, which is the heavy-duty commercial grade specifiers call for on high-traffic openings in schools, hospitals, and office towers. That is the same grade level as the Von Duprin 22 Series and the TownSteel ED3700 narrow stile rim device we carry.
11) I need a locking or nightlatch function rather than the dummy Corbin Russwin PED4200 - what are my options?
The Corbin Russwin PED4200 is a dummy function device. For a keyed narrow stile rim device, the Sargent 8504 is a narrow stile rim exit device with a nightlatch function. The Detex V4003A/03AN is a wide stile Grade 1 rim device supplied with night latch trim. For exit-only with no outside trim, the Falcon 19-R Series 36 inch narrow stile Grade 1 device is listed exit only for 1-3/4 inch doors.
12) Is there a lighter-duty or Grade 2 alternative to the Corbin Russwin PED4200 for a 48 inch door?
The Corbin Russwin PED4200 is a Grade 1 device. If the opening does not require Grade 1, the Cal-Royal 5500 is a 48 inch rim exit device with a push bar rated Grade 2 heavy duty, and the Cal-Royal A9820 Series is a 48 inch exit-only rim device also listed Grade 2 heavy duty. Neither is wood door compatible.
13) Is the SDC PSB560 pressure sense bar a substitute for the Corbin Russwin PED4200 rim exit device?
No. The Corbin Russwin PED4200 is a mechanical Grade 1 rim exit device with a latch that secures the door. The SDC SureExit PSB560 is a 36 inch pressure sense bar with tri-failsafe technology, and the SDC MSB550 is a 36 inch mechanical switch bar that releases an electromagnetic lock - both are switch bars that signal a separate locking device rather than latching the door themselves. They do fit narrow or wide stile doors, but they are not drop-in replacements for a latching rim device.
14) If I need concealed vertical rod instead of a rim device, what replaces the Corbin Russwin PED4200?
The Corbin Russwin PED4200 is a surface rim device that latches into a surface-mounted strike. For a concealed vertical rod opening, the Hager 4601 Series 36 inch is a Grade 1 narrow stile concealed vertical rod exit device, and the Hager 4501 Series 36 inch is a Grade 1 concealed vertical rod device with a wide stile pushpad. CVR devices require door prep for the rods, so they are not a swap for rim mounting.
15) What finishes does the Corbin Russwin PED4201 48-inch push pad come in?
Twelve finishes: 605 bright brass, 606 satin brass, 611 bright bronze, 612 satin bronze, 613 satin bronze oil-rubbed, 613E dark oxidized satin bronze equivalent, 619 satin nickel, 625 bright chrome, 629 bright stainless, 630 satin stainless, plus BSP black suede and WSP white suede powder coat. The powder coats are the ones to match dark or white storefront framing; 630 is the usual pick where the rest of the building hardware is satin stainless.
16) Can I dog the push pad down so the door pushes free during business hours?
Dogging on the PED4000 Series is single-point 1/4-turn hex key as standard, with cylinder dogging or electric dogging as options. Dogged down, projection drops from 3-1/4 inches to 2-3/4 inches. Order the cylinder dogging option if you would rather staff use a key than carry a hex wrench.
17) Will this match the other PED4000 openings in my building?
It shares the PED4000 Series push pad look and the same twelve finish range, so a dummy leaf finishes out identically to an adjacent active PED4000 device. Trim across the series includes the Museo and Vineyard collections, and lever trims and pulls are ADA compliant, so a mixed set of openings can be standardized on one appearance.
