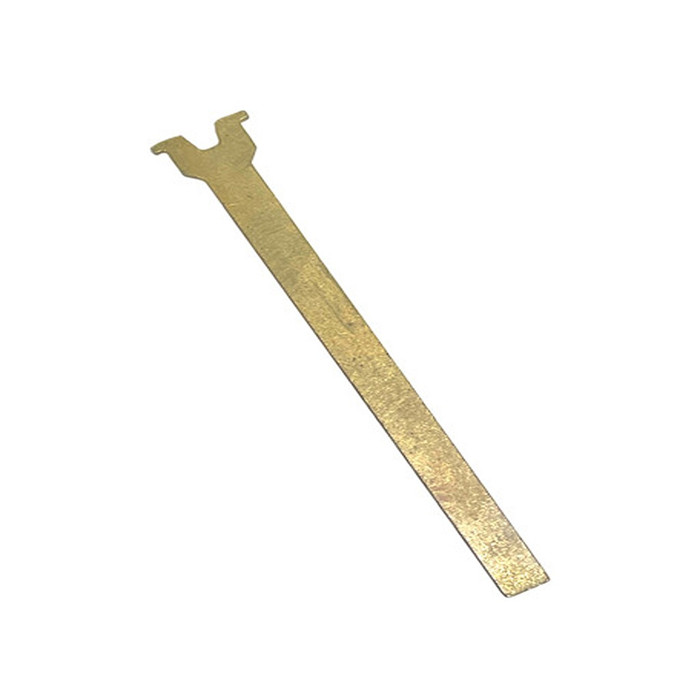

Corbin Russwin Rim Cylinder Tailpiece

Corbin Russwin Rim Cylinder Tailpiece

(No reviews yet) Write a Review

Model: 253F76-8

In Stock (leaves warehouse same day if ordered before 3pm ET)

$10.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Corbin Russwin 253F Rim Cylinder Tailpiece with Stamped Collar

Commercial-Grade Cylinder Replacement Component for Mechanical Lock Systems

The Corbin Russwin 253F Rim Cylinder Tailpiece with Stamped Collar is a precision-engineered replacement part designed for use with compatible Corbin Russwin mechanical lock cylinders. Classified as a Mortise Cylinder Part, this tailpiece serves the critical function of transmitting rotational force from the cylinder to the locking mechanism. It is compatible with Corbin Russwin components 3000200, 3000312, and 3080178, making it a reliable solution for maintaining and servicing commercial-grade door hardware installations.

Professional Features & Benefits

  • Stamped Collar Construction: Features a precision stamped collar design that ensures accurate fitment and consistent performance within compatible cylinder assemblies.
  • Cylinder Function: Engineered specifically to perform the cylinder tailpiece function, transmitting rotational motion from the cylinder plug to the locking mechanism for reliable operation.
  • Mortise Cylinder Part Classification: Designed and classified as a Mortise Cylinder Part, ensuring proper integration with Corbin Russwin mortise cylinder configurations.
  • Compatible Components: Verified for use with Corbin Russwin parts 3000200, 3000312, and 3080178 for targeted, accurate replacement and servicing.
  • Commercial-Grade Quality: Rated for commercial applications, this tailpiece meets the performance demands of high-use door hardware environments including offices, institutions, and multi-tenant facilities.
  • Simplified Maintenance: Designed as a direct replacement part, this tailpiece streamlines cylinder servicing and reduces downtime during lock maintenance or repair operations.

Technical Specifications

  • Product Group: Parts and Accessories
  • Product Subgroup: Parts and Accessories
  • Product Type: Cylinder Tailpiece
  • Commercial/Residential: Commercial
  • Subcategory: Parts and Accessories
  • Product Category: Mechanical Locks
  • For Use With: 3000200, 3000312, 3080178
  • Department: Door Hardware

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Corbin Russwin Quality?

Corbin Russwin door hardware components are engineered to commercial-grade standards, delivering consistent performance and reliable fitment in demanding institutional and commercial environments. The 253F Rim Cylinder Tailpiece is a precision replacement part compatible with verified Corbin Russwin cylinder assemblies including components 3000200, 3000312, and 3080178, ensuring accurate servicing of existing installations. Trust Corbin Russwin parts to maintain the integrity and performance of your mechanical lock systems.

Product Specs

Product Group:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Cylinder Tailpiece
Commercial/Residential:
Commercial
Subcategory:
Parts and Accessories
Product Category:
Mechanical Locks
For Use With:
3000200, 3000312, 3080178
Department:
Door Hardware

Corbin Russwin 253F76-8 – Frequently Asked Questions

1) Which Corbin Russwin 253F tailpiece length do I order for a 3000200 rim cylinder?
Match the tailpiece to the cylinder part number. For the 3000200, order the 253F76-8, which is the 2 inch tailpiece. The 3000-312 takes the 253F77-8 at 3-1/2 inches, and the 3000-178 takes the 253F85-8 at 1-7/8 inches. Interchangeable core cylinder 3080318 uses a different tailpiece, the 284F13-8 at 3-1/8 inches. Pull the cylinder part number off the existing hardware first, because the lengths are close enough that the wrong one either bottoms out or fails to reach the lock mechanism.
2) What does a rim cylinder tailpiece actually do, and why does mine need replacing?
The tailpiece is the flat bar that carries the turning motion of the cylinder plug back into the lock or exit device mechanism. Nothing about the keying lives in it. When a key turns freely but the latch or exit device does not retract, the tailpiece is usually the failed or wrong-length part, not the cylinder. Replacing just the tailpiece keeps the existing cylinder and keying in service.
3) Do I have to rekey anything when I replace a Corbin Russwin tailpiece?
No. The tailpiece is a mechanical drive bar on the back of the cylinder, so swapping it leaves the pinning and the keyway untouched. Keys that worked before still work after. That is what makes it the cheap fix on a master keyed building: the cylinder and its key stay in the system, and only the drive component changes.
4) What comes with the Corbin Russwin 253F, and do I need anything else to complete the repair?
The 253F is the tailpiece with its stamped collar, sold as a cylinder replacement component. It is not a cylinder and it does not include one, so if the plug itself is worn or the keying has to change, you are ordering a cylinder, not this. For a straight drive failure on a cylinder that is otherwise sound, the tailpiece is the whole repair.
5) Is the Corbin Russwin 253F tailpiece rated for commercial door hardware or is it a residential part?
Commercial. The 253F is a Corbin Russwin cylinder component for commercial mechanical lock installations, the kind of hardware carried on office, school, healthcare and multi tenant openings. If you are standardizing spare parts for a facility, stocking the tailpiece length that matches your standard cylinder part number is what keeps a service call to one trip.
