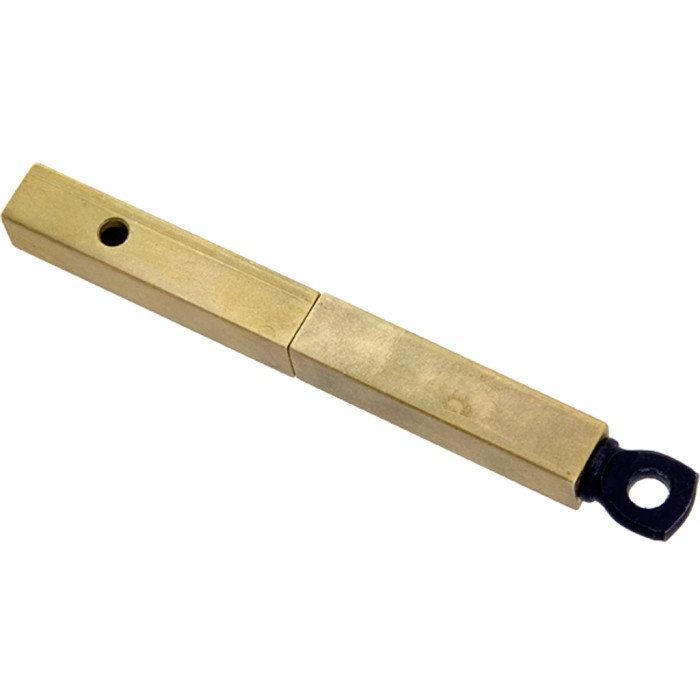

Corbin Russwin 499F838 Swivel Spindle Pin with Set Screw for 1-3/4" Door Lever Applications
Commercial-Grade Replacement Spindle Component for Lever Hardware
The Corbin Russwin 499F838 Swivel Spindle Pin with Set Screw is a precision-engineered replacement part designed to restore and maintain the reliable operation of Corbin Russwin lever hardware. Configured as a 33L (lever x lever) spindle, this component is specifically designed for use with 1-3/4" doors, ensuring a proper fit within compatible Corbin Russwin lockset assemblies. As a genuine manufacturer part, it delivers the exact tolerances and construction quality required for dependable commercial door hardware performance.
Professional Features & Benefits
- Precise Door Thickness Compatibility: Engineered specifically for 1-3/4" door applications, ensuring correct fitment and smooth lever operation in standard commercial door configurations.
- 33L Lever x Lever Configuration: Designed for lever x lever spindle applications, making it the correct replacement component for double-lever lockset assemblies requiring this specific spindle type.
- Swivel Spindle Design: The swivel spindle construction allows for proper lever articulation and smooth mechanical operation throughout the full range of lever movement.
- Set Screw Included: Comes complete with the set screw necessary for secure spindle retention, providing everything needed for a complete and properly secured installation.
- Genuine Manufacturer Part: Sourced directly from Corbin Russwin, this replacement component meets original factory specifications for reliable integration with compatible hardware assemblies.
- Commercial-Grade Construction: Built to the quality standards expected of Corbin Russwin commercial door hardware, ensuring long-term durability in demanding institutional and commercial environments.
Technical Specifications
- Product Group: Parts and Accessories
- Product Subgroup: Parts and Accessories
- Product Type: Rings, Spindles and Springs
- Commercial/Residential: Commercial
- Subcategory: Parts and Accessories
- Product Attribute: Parts and Accessories
- Door Thickness Range: 1-3/4"
- Department: Door Hardware
Professional Applications
- Commercial Office Buildings
- Educational Facilities
- Healthcare Institutions
- Retail Establishments
- Industrial and Warehouse Facilities
- Multi-Tenant Residential Properties
- Government and Municipal Buildings
Why Choose Corbin Russwin Quality?
Corbin Russwin parts and accessories are manufactured to precise factory specifications, ensuring seamless compatibility and reliable performance when used with Corbin Russwin door hardware assemblies. This commercial-grade swivel spindle pin is built to withstand the demands of high-traffic institutional environments where consistent, dependable hardware operation is essential. Trust genuine Corbin Russwin replacement components to maintain the integrity and performance of your installed hardware.
Manufacturer Resources
Corbin Russwin Condensed Catalog
Product Specs
- Product Group:
- Parts and Accessories
- Product Subgroup:
- Parts and Accessories
- Product Type:
- Rings, Spindles and Springs
- Commercial/Residential:
- Commercial
- Subcategory:
- Parts and Accessories
- Product Attribute:
- Parts and Accessories
- Door Thickness Range:
- 1-3/4"
- Department:
- Door Hardware
Corbin Russwin 499F838 – Frequently Asked Questions
1) What is the Corbin Russwin 499F838 swivel spindle pin and when do I need one?
It's the internal spindle that connects the two levers through a Corbin Russwin lockset, supplied with its set screw. If a lever has gone loose, spins without retracting the latch, or the spindle sheared, this is the part that restores the connection between lever and lock body. It's a genuine Corbin Russwin replacement component, not a whole lockset, so the existing chassis, trim and cylinder stay in the door.
2) Is this spindle right for a lever on both sides, or a lever with a knob or thumbturn outside?
Lever x lever only. The 499F838 is a 33L spindle, which is the lever-by-lever configuration, so it suits a double-lever lockset where both sides operate. If the opening has a lever inside and a knob, cylinder plate or blank plate outside, that's a different spindle configuration and this one is the wrong part.
3) Does the Corbin Russwin 499F838 come with the set screw or do I have to order that separately?
The set screw ships with it. That's the screw that retains the spindle once it's set in the lever hub, so nothing else has to be sourced to get the lever secured. Anything else the job needs, spring cages, roses, or a full lever, is separate hardware.
4) Can I use this spindle to fix loose levers across a building's Corbin Russwin openings?
Yes, provided the doors are 1-3/4 inch and the locksets are lever x lever. It's a commercial-grade part built for high-traffic institutional use, so for a property manager or MRO buyer standardizing repairs across offices, schools, healthcare or multi-tenant residential, one part number covers every matching opening. Openings with a different thickness or a knob/plate outside need a different spindle.
5) What does the swivel design on this Corbin Russwin spindle actually do?
A swivel spindle lets each lever rotate through its full travel independently rather than driving the opposite lever with it. That's what keeps operation smooth on a lever x lever set and stops one side dragging the other. If a lever feels stiff at the end of its swing or the two sides fight each other, a worn spindle is a common cause.
