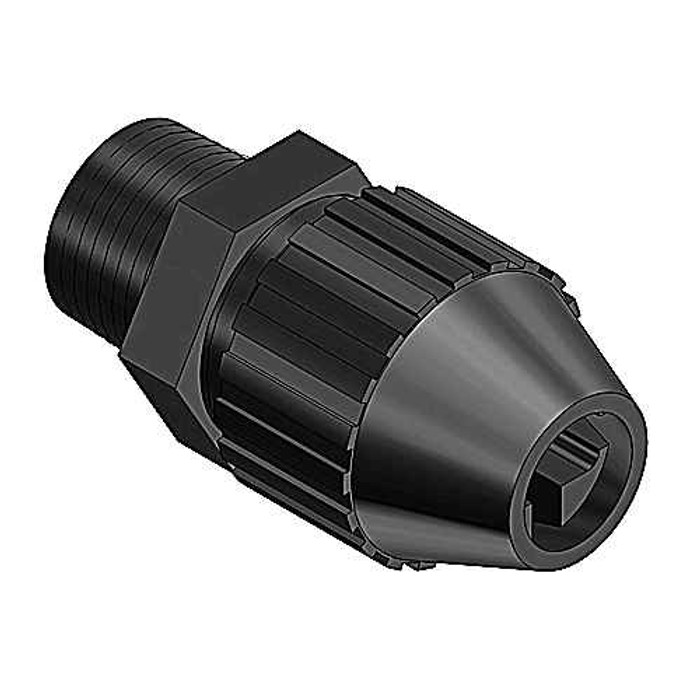

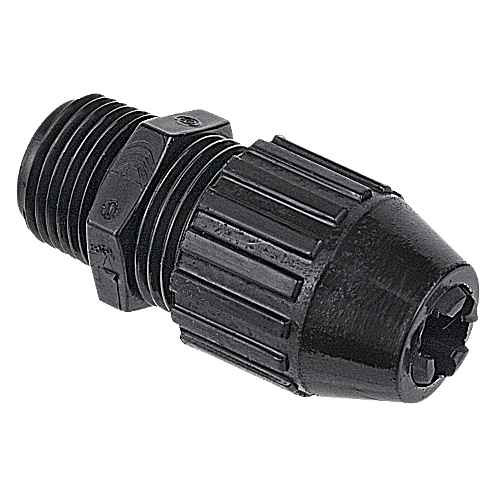

Thomas & Betts Hazardous Location Cord Connector 1/2 inch NPT Straight Cable Gland

Thomas & Betts Hazardous Location Cord Connector 1/2 inch NPT Straight Cable Gland

Professional hazardous location electrical connectivity solution

The Thomas & Betts hazardous location cord connector delivers reliable electrical connections in demanding environments. This straight cable gland features 1/2 inch NPT threading and polyamide construction, designed for Class I Division 2, Class II Divisions 1 & 2, and Class III Divisions 1 & 2 applications. The segmented chuck design provides superior mechanical pullout performance while protecting cord jackets from damage.

Professional Features & Benefits

• Hazardous Location Rated: Approved for Class I, II, and III hazardous locations per NEC requirements, ensuring safe operation in challenging industrial environments.
• 1/2 inch NPT Threading: Standard pipe thread connection provides secure, industry-standard mounting and sealing performance.
• Segmented Chuck Design: Advanced chuck technology delivers high mechanical pullout strength while preventing cord jacket cutting or damage.
• Polyamide Construction: Durable plastic material withstands operating temperatures from -34�C to +105�C for reliable long-term performance.
• Coast Guard CG293 Compliance: Meets marine industry standards for critical maritime electrical applications.
• UL and CSA Listed: Third-party safety certifications ensure compliance with North American electrical codes and standards.
• Conductor Range Compatibility: Accommodates conductors from 0.560 to 0.680 inch diameter for versatile installation options.

Technical Specifications

• Color: Black
• Colour: Black
• Conductor Range: 0.560 to 0.680 Inch
• Department: Electrical
• Etim: EC000441 Cable screw gland
• Inner Dimensions Inches : 6x4x4
• Inner Quantity: 10
• Material: Plastic
• Material Quality: Polyamide (PA)
• Nominal Thread Size Inch Gas Pipe Thread: 1/2 inch
• Operating Temperature: -34-+105�C
• Outer Dimensions Inches : 12.75x11x9
• Outer Quantity: 100
• Product Details: Cord Connectors-Straight
• Product Group: Connectors
• Product Model: Straight
• Product Subgroup: Electrical Connectors
• Product Type: Cord Connectors-Straight
• Standard: UL E13938, CSA
• Suitable For Cable Diameter: 14.224-17.272mm
• Temperature Rating: -34 to +105 Degrees C
• Thread Length: 15.08mm
• Thread Type: NPT
• Unspsc: 39121431 Cable gland connector
• Weight Uom: 11 lbs. per 100

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Hazardous Location Industrial Facilities
• Marine and Maritime Installations
• Chemical Processing Plants
• Oil and Gas Operations
• Pharmaceutical Manufacturing
• Food Processing Facilities
• Grain Handling Operations

Why Choose Thomas & Betts Quality?

Thomas & Betts cord connectors deliver proven reliability with UL and CSA safety certifications and Coast Guard CG293 compliance. The polyamide construction and wide operating temperature range from -34�C to +105�C ensure dependable performance in the most demanding industrial environments.
