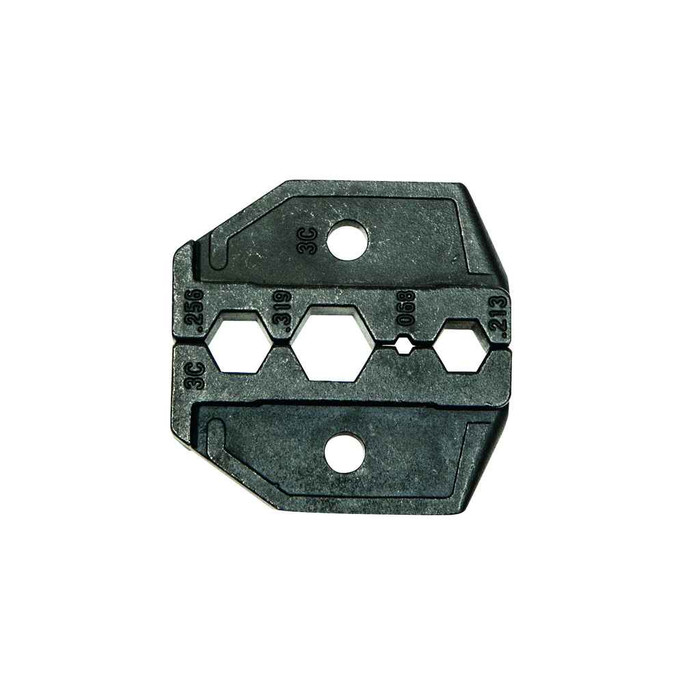

Crimp Die Set, RG58, RG59, RG6, RG62
VDV211-037 - spec sheet
Features
- Weight - 3.2 ounces
- Additional, optional die sets include - VDV212-034 (CATV F-Connector RG59/6); VDV205-035 (Insulated Terminal AWG10-22); VDV205-036 (Non-Insulated Terminal or Open Barrel Terminal AWG10-20)
- Hex Crimp Connectors - RG6/58/59/62 Coaxial Cable
- Durable construction
- Die Set only
- Precise dimensions ensure accurate terminations that meet or exceed common standards
VDV211-037 - spec sheet
Manufacturer Resources
Spec Sheet
Product Specs
- Die Set:
- RG58, RG59, RG6/62
- Nest Dimension:
- 0.256"/ 0.319"/ 0.068"/ 0.213" 6.50/ 8.10/1.73/5.41 mm
- Department:
- Electrical
- Product Group:
- Hand Tools
- Product Subgroup:
- Wire Strippers & Crimpers
- Product Type:
- Crimp Die Set
- Product Details:
- Crimper Die Set
- Product Height:
- 0.4500 in
- Product Weight:
- 0.1260 lbs
- Product Width:
- 1.5750 in
- Product Depth:
- 1.3500 in
Klein Tools VDV211-037 – Frequently Asked Questions
1) Which coax cables does the Klein VDV211-037 die set crimp?
The VDV211-037 die handles hex crimp connectors on RG58, RG59, RG6 and RG62 coaxial cable. That covers the common CCTV, satellite, and CATV drop cable a low-voltage installer runs, using a hex crimp (not a compression) connector.
2) Does the VDV211-037 come with the crimping tool, or is it the die only?
Die set only. The VDV211-037 is a replacement or add-on die for a Klein VDV multi-tool crimper frame, so you need the tool body already in hand. If you are buying it to crimp hex coax ends, budget for the frame separately.
3) What are the hex nest sizes on the Klein VDV211-037 coax die?
Four nests: 0.256 in (6.50 mm), 0.319 in (8.10 mm), 0.068 in (1.73 mm) and 0.213 in (5.41 mm). Match the hex size on your connector's crimp ferrule and center pin to one of those four before you crimp; if your connector calls for a hex outside that range, this die will not form it correctly.
4) I need to crimp F-connectors on RG59 and RG6 for cable TV. Is this the right die?
For CATV F-connectors, the die you want is Klein's VDV212-034, which is specified for CATV F-connector RG59/6. The VDV211-037 is the hex crimp coax die for RG58, RG59, RG6 and RG62. Both fit the same VDV crimper family, so the fix is to swap dies rather than change tools.
5) What other Klein die sets fit the same crimper frame as the VDV211-037?
Three others are listed as optional dies for the same tool: VDV212-034 for CATV F-connectors on RG59/6, VDV205-035 for insulated terminals AWG 10-22, and VDV205-036 for non-insulated or open barrel terminals AWG 10-20. An electrician doing both coax and terminal work can keep one frame and carry the dies.
6) Will a hex crimp die like this work on compression F-connectors?
No. The VDV211-037 forms hex crimps on RG58/59/6/62 ferrules. Compression connectors are seated by axial force in a compression tool, not by a hex die, so a different tool is required for those. Check which connector style the job spec calls out before ordering.
7) How big is the VDV211-037 die and how much does it weigh in a tool pouch?
Small enough to live in a pouch pocket: 1.575 in wide by 1.35 in deep by 0.45 in high, at 0.126 lbs (the spec sheet also lists it as 3.2 ounces as packaged). Techs who carry two or three dies for the same frame are not adding meaningful weight to the bag.
8) What is the correct Klein part number to reorder this coax crimp die?
Order it as Klein Tools VDV211-037. That is the manufacturer part number for the RG58/RG59/RG6/RG62 hex crimp die, and it is sold as a single die set with no size or finish choices to specify.
