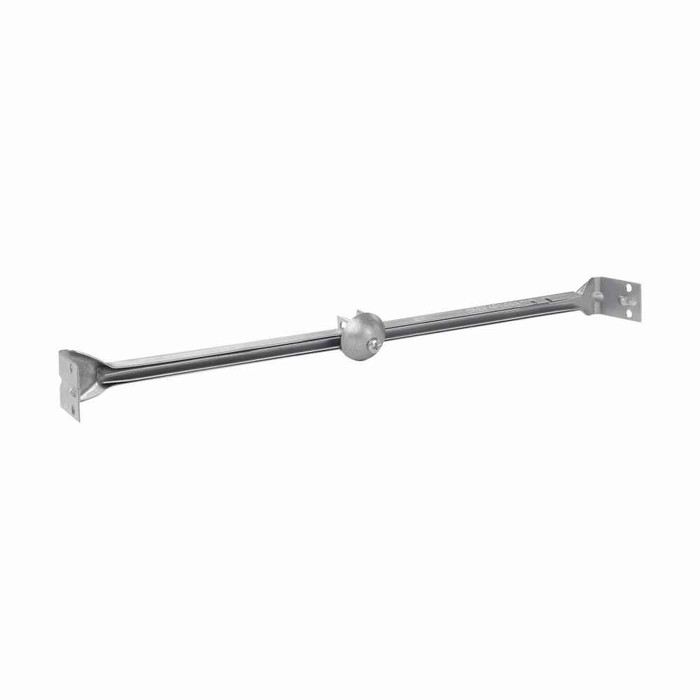

Eaton Crouse-Hinds 16" Adjustable Bar Hanger, Steel Construction
Professional-Grade Ceiling Support for Electrical Fixtures and Equipment
The Eaton Crouse-Hinds 16" Adjustable Bar Hanger is a professional-grade steel mounting solution engineered for secure ceiling installation of electrical fixtures and equipment. This robust steel bar hanger delivers reliable structural support and precise positioning capability for commercial and industrial electrical installations where dependable mounting is critical.
Key Features & Benefits
Superior Steel Construction
- Heavy-duty steel construction - Provides exceptional strength and durability for long-term reliability
- Corrosion-resistant finish - Protects against environmental factors in diverse installation conditions
- Professional-grade materials - Engineered to meet demanding commercial and industrial requirements
- Dimensional stability - Maintains precise positioning under load without deflection or movement
Adjustable Design Flexibility
- 16-inch adjustable length - Accommodates various ceiling joist spacing configurations
- Precise positioning capability - Allows exact fixture placement for optimal installation results
- Universal compatibility - Works with standard electrical boxes and mounting hardware
- Field-adjustable design - Reduces inventory requirements while maximizing installation flexibility
Installation Efficiency
- Streamlined mounting process - Reduces installation time and labor costs
- Secure attachment points - Ensures reliable connection to ceiling structure
- Professional appearance - Clean, finished look appropriate for visible installations
- Code-compliant design - Meets NEC/CEC requirements for electrical fixture support
Technical Specifications
This adjustable bar hanger features steel construction with a 16-inch maximum extension length and compact 1-inch height profile. The unit measures 22.5 inches in overall length with a 1-inch width, weighing 0.41 pounds for easy handling during installation. Designed for ordinary/non-hazardous locations, this hanger meets NEC/CEC standards and is specifically engineered for electrical fixture support applications (not fan rated). The steel construction provides superior strength-to-weight ratio while maintaining dimensional stability under load.
Installation Process
- Verify ceiling joist spacing and structural adequacy for intended load
- Position bar hanger between ceiling joists at desired fixture location
- Adjust hanger length to achieve proper fit and alignment
- Secure mounting brackets to ceiling joists using appropriate fasteners
- Verify hanger is level and properly supported before fixture installation
- Install electrical box or fixture according to manufacturer specifications
Applications
Perfect for:
- Commercial Lighting - Office buildings, retail spaces, and institutional facilities
- Industrial Fixtures - Manufacturing facilities, warehouses, and processing plants
- Electrical Equipment Support - Junction boxes, control panels, and distribution equipment
- Suspended Ceiling Applications - Drop ceiling installations requiring structural support
- Renovation Projects - Retrofit installations where existing structure must be utilized
- Municipal Buildings - Schools, government facilities, and public infrastructure
- Healthcare Facilities - Hospitals, clinics, and medical equipment installations
- Data Centers - Server rooms and telecommunications equipment areas
Adjustable Bar Hanger System Benefits
Adjustable bar hangers provide superior installation flexibility compared to fixed-length alternatives, allowing contractors to accommodate varying joist spacing without requiring multiple product sizes. The steel construction offers exceptional strength and durability, ensuring long-term reliability in demanding commercial and industrial environments. This design approach reduces inventory requirements while providing the precise positioning capability essential for professional electrical installations.
Why Choose Steel Construction?
Steel construction provides the optimal combination of strength, durability, and cost-effectiveness for electrical fixture support applications. Unlike lighter materials, steel maintains dimensional stability under load and provides superior resistance to environmental factors. The Eaton Crouse-Hinds steel bar hanger delivers the professional-grade performance that electrical contractors depend on, backed by over 100 years of electrical industry innovation and expertise.
Manufacturer Resources
Product Specs
- Area Classification:
- Ordinary/Non-Hazardous Locations
- Material:
- Steel
- Product Height:
- 1 in
- Product Length Depth:
- 22.5 in
- Product Weight:
- .41 lb
- Product Width:
- 1 in
- Standards Type:
- NEC/CEC
- Product Type:
- Bar Hanger
- Product Group:
- Electrical Fitting
- Department:
- Electrical
- Product Subgroup:
- Bar Hanger
