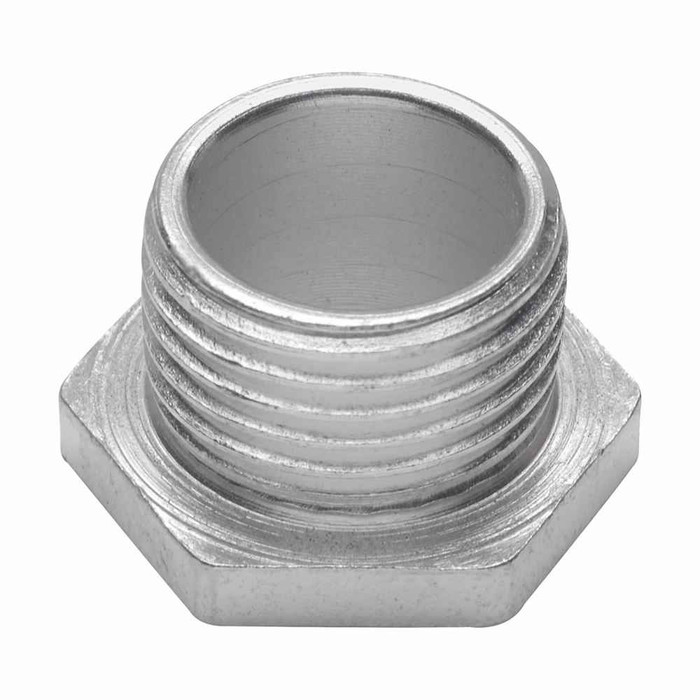

Eaton Crouse-Hinds 1/2" Rigid/IMC Conduit Bushed Nipple, Steel, Non-Insulated

Eaton Crouse-Hinds 1/2" Rigid/IMC Conduit Bushed Nipple, Steel, Non-Insulated

Professional-Grade Chase Nipple for Seamless Conduit Extensions

The Eaton Crouse-Hinds 1/2" Rigid/IMC Conduit Bushed Nipple is a heavy-duty conduit fitting engineered for professional electrical installations requiring reliable conduit extensions and connections. This steel chase nipple delivers superior threading precision and long-term durability for commercial and industrial electrical systems.

Key Features & Benefits

Superior Construction Quality

• Precision Steel Construction - Engineered from high-grade steel for maximum strength and dimensional stability in demanding applications
• Non-Insulated Design - Maintains electrical continuity and grounding path throughout the conduit system for enhanced safety
• Professional Threading - Machine-cut threads ensure smooth installation and secure connections with rigid and IMC conduit
• Bushed Interior - Smooth internal finish protects wire insulation during installation and prevents conductor damage

Installation Efficiency

• Standard 1/2" Trade Size - Compatible with all standard 1/2" rigid and IMC conduit systems for versatile applications
• Compact Profile - 1.13" length provides optimal extension while minimizing space requirements in tight installations
• Lightweight Design - At just 0.03 lbs, reduces overall system weight while maintaining structural integrity

Code Compliance & Safety

• NEC/CEC Compliant - Meets all National Electrical Code and Canadian Electrical Code requirements for conduit fittings
• Ordinary Location Rated - Approved for use in standard commercial and industrial environments
• Grounding Continuity - Non-insulated design ensures proper equipment grounding throughout the electrical system

Technical Specifications

This conduit bushed nipple features 1/2" trade size compatibility with rigid and IMC conduit systems. The steel construction provides excellent corrosion resistance and mechanical strength, while the non-insulated design maintains electrical continuity. Measuring 1.13" in length with a 0.56" height profile, this chase nipple offers optimal dimensional characteristics for professional installations. The precision-machined threads ensure reliable connections that meet NEC/CEC standards for ordinary location applications.

Installation Process

1. Verify conduit ends are properly reamed and deburred to prevent wire damage
2. Apply appropriate thread compound to male threads for weather-resistant seal
3. Thread nipple hand-tight into first conduit fitting or enclosure
4. Use appropriate wrenches to tighten connection, avoiding over-torquing
5. Connect second conduit section, ensuring proper alignment and full thread engagement
6. Verify grounding continuity through the complete connection assembly

Applications

Perfect for:

• Commercial Buildings - Office complexes, retail centers, and healthcare facilities requiring reliable conduit extensions
• Industrial Facilities - Manufacturing plants, processing centers, and warehouse electrical distribution systems
• Panel Connections - Extending conduit runs from electrical panels and distribution equipment
• Equipment Hookups - Motor control centers, switchgear, and machinery electrical connections
• Conduit System Extensions - Bridging gaps between conduit sections in retrofit and expansion projects
• Chase Installations - Running conduit through walls, floors, and structural elements
• Maintenance Applications - Replacing damaged conduit sections without complete system rewiring
• Code Compliance Upgrades - Modernizing older electrical systems to meet current NEC/CEC standards

Conduit Bushed Nipple System Benefits

Conduit bushed nipples provide essential flexibility in electrical conduit systems by enabling precise extensions and connections between conduit sections. Unlike standard nipples, the bushed interior design protects conductor insulation during wire pulling operations, reducing installation time and preventing costly wire damage. The threaded design creates secure mechanical connections that maintain system integrity under thermal expansion and vibration conditions common in commercial and industrial environments.

Why Choose Steel Construction?

Steel conduit fittings offer superior mechanical strength and durability compared to alternative materials, making them ideal for heavy-duty electrical installations. The steel construction provides excellent resistance to physical damage and maintains dimensional stability under temperature variations. Combined with Eaton Crouse-Hinds' precision manufacturing standards and over 100 years of electrical industry expertise, this bushed nipple delivers the reliability and performance that electrical professionals demand for critical infrastructure projects.
