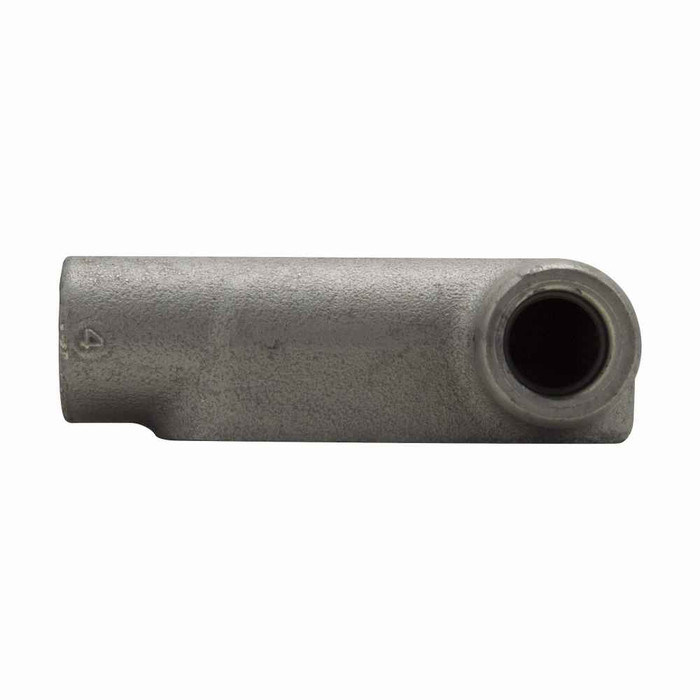

Eaton Crouse-Hinds 3/4" LR Condulet Form 7 Outlet Body, Feraloy Iron Alloy
Premium Feraloy Iron Construction for Superior Strength and Durability
The Eaton Crouse-Hinds 3/4" LR Condulet Form 7 Outlet Body is a professional-grade conduit fitting engineered for demanding commercial and industrial electrical installations. This Feraloy iron alloy outlet body delivers exceptional strength and corrosion resistance for long-term reliability in ordinary and non-hazardous locations.
Key Features & Benefits
Superior Material Construction
- Feraloy Iron Alloy Construction - Provides superior strength and durability compared to standard materials, ensuring decades of reliable service
- NEMA 12 Rating - Protects against dust, falling dirt, and dripping non-corrosive liquids in industrial environments
- Corrosion Resistant Finish - Engineered to withstand harsh environmental conditions while maintaining structural integrity
- Precision Manufacturing - Consistent dimensional accuracy ensures proper fit and reliable connections every time
Professional Installation Features
- LR Shape Configuration - Provides 90-degree conduit routing with convenient access for wire pulling and splicing
- 3/4" Trade Size - Compatible with standard 3/4" rigid, IMC, and EMT conduit systems
- Form 7 Design - Threaded hubs accommodate standard conduit connections for secure, code-compliant installations
- Compact Profile - 5.19" length x 2.44" height x 1.63" width fits in tight spaces while providing full functionality
Code Compliance & Safety
- NEC/CEC Compliant - Meets all National Electrical Code and Canadian Electrical Code requirements
- UL Listed Construction - Rigorously tested for safety and performance in electrical applications
- Grounding Continuity - Maintains proper electrical grounding throughout the conduit system
Technical Specifications
This Condulet outlet body features 3/4" trade size with LR shape configuration, constructed from premium Feraloy iron alloy for maximum durability. The unit measures 5.19" in length, 2.44" in height, and 1.63" in width, with a total weight of 1.25 pounds. NEMA 12 rating provides protection against dust and dripping liquids, while NEC/CEC compliance ensures code-approved installations in ordinary and non-hazardous locations.
Installation Process
- Verify conduit alignment and measure required routing path for proper LR configuration
- Apply appropriate thread compound to conduit ends to ensure weatherproof seal
- Thread conduit securely into Condulet hubs, ensuring full engagement for maximum strength
- Install cover gasket and secure cover with appropriate torque to maintain NEMA 12 rating
- Pull conductors through the outlet body, utilizing the spacious interior for easy wire management
- Complete connections and verify proper grounding continuity throughout the system
Applications
Perfect for:
- Industrial Facilities - Manufacturing plants, processing facilities, and heavy industrial environments
- Commercial Buildings - Office complexes, retail centers, hospitals, and educational facilities
- Equipment Connections - Motor control centers, switchgear, and electrical distribution panels
- Conduit Direction Changes - 90-degree routing in tight spaces where standard elbows won't fit
- Junction Points - Wire splicing and connection access in long conduit runs
- Maintenance Access - Locations requiring periodic conductor inspection or replacement
- Harsh Environments - Areas with dust, dirt, or dripping liquids requiring NEMA 12 protection
- Municipal Infrastructure - Schools, government buildings, and public facilities
Condulet System Benefits
Condulet outlet bodies provide superior access and flexibility compared to standard conduit fittings. The removable cover allows easy conductor installation, inspection, and maintenance without disturbing the entire conduit run. This LR configuration combines the benefits of a 90-degree elbow with the accessibility of a junction box, making it ideal for complex routing situations where standard fittings fall short.
Why Choose Feraloy Iron Alloy?
Feraloy iron alloy represents Eaton Crouse-Hinds' commitment to superior materials engineering. This advanced alloy provides exceptional strength-to-weight ratio, superior corrosion resistance, and dimensional stability under temperature variations. Trusted by electrical professionals for over 100 years, Crouse-Hinds Feraloy construction ensures your electrical installations will perform reliably for decades, reducing maintenance costs and system downtime.
Manufacturer Resources
Product Specs
- Area Classification:
- Ordinary/Non-Hazardous Locations
- Nema Rating:
- 12
- Product Height:
- 2.44 in
- Product Length Depth:
- 5.19 in
- Product Weight:
- 1.25 lb
- Product Width:
- 1.63 in
- Standards Type:
- NEC/CEC
- Trade Size:
- 3/4"
- Product Type:
- Conduit Outlet Body
- Product Group:
- Electrical Fitting
- Department:
- Electrical
- Product Subgroup:
- Conduit Outlet Body
- Product Shape:
- LR
- Product Material:
- Feraloy iron alloy
