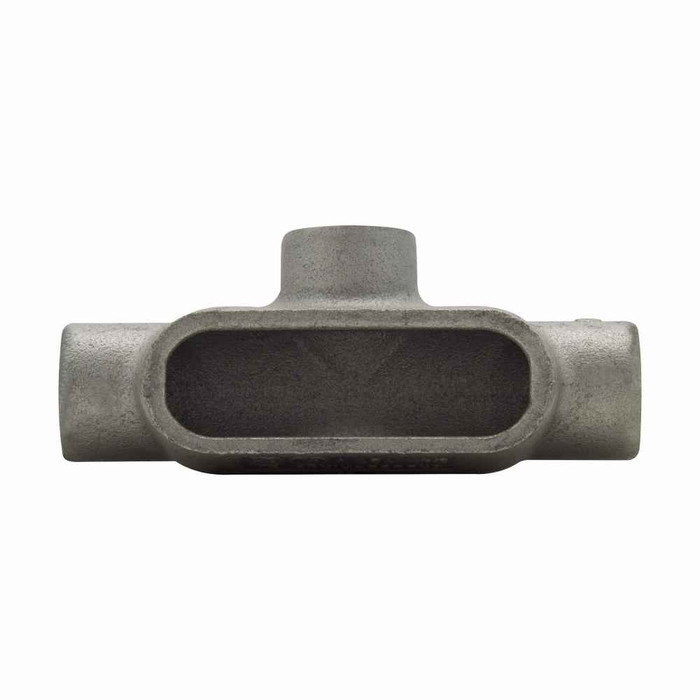

Eaton Crouse-Hinds 2" Condulet Form 7 T-Shape Outlet Body, Feraloy Iron Alloy
Professional-Grade Conduit Access Solution for Heavy-Duty Electrical Systems
The Eaton Crouse-Hinds 2" Condulet Form 7 T-Shape Outlet Body is a premium conduit access solution engineered for commercial and industrial electrical installations. This Feraloy iron alloy outlet body delivers superior strength and corrosion resistance for demanding electrical applications requiring reliable conduit connections and wire pulling access.
Key Features & Benefits
Superior Material Construction
- Feraloy Iron Alloy Construction - Provides exceptional strength and durability that exceeds standard steel performance
- Corrosion Resistant Finish - Engineered to withstand harsh environmental conditions and extend service life
- Precision Cast Design - Ensures consistent dimensional accuracy and smooth conduit connections
- NEMA 12 Rating - Protects against dust, dirt, and dripping non-corrosive liquids
Professional Installation Advantages
- T-Shape Configuration - Enables three-way conduit connections for complex routing applications
- Form 7 Design - Provides removable cover for easy wire pulling and maintenance access
- 2" Trade Size - Accommodates larger conductor bundles and high-capacity electrical feeds
- NEC/CEC Compliant - Meets all applicable electrical code requirements for safe installation
System Integration Benefits
- Universal Conduit Compatibility - Works with rigid, IMC, and EMT conduit systems
- Secure Wire Protection - Enclosed design protects conductors from environmental hazards
- Maintenance Accessibility - Removable cover allows for future wire additions or modifications
Technical Specifications
This 2" trade size Condulet features robust Feraloy iron alloy construction with NEMA 12 environmental protection rating. The T-shape configuration measures 9.19" in length, 4.13" in height, and 3.13" in width, with a total weight of 5.4 pounds ensuring substantial durability. The Form 7 design provides removable cover access while maintaining NEC/CEC compliance for ordinary/non-hazardous locations. Three conduit hubs accommodate 2" rigid, IMC, or EMT conduit connections with precision-threaded entries.
Installation Process
- Select appropriate mounting location ensuring adequate clearance for cover removal
- Thread conduit into the three hub openings, ensuring proper engagement
- Secure conduit connections with appropriate locknuts and bushings
- Install conductors through the conduit system before final connections
- Make all electrical connections within the outlet body following NEC requirements
- Install cover with gasket to maintain NEMA 12 environmental protection
Applications
Perfect for:
- Industrial Facilities - Manufacturing plants, processing facilities, and heavy equipment installations
- Commercial Buildings - Office complexes, retail centers, and institutional facilities
- Power Distribution Systems - Electrical panels, switchgear, and motor control centers
- Equipment Connections - Machinery feeds, control circuits, and instrumentation wiring
- Conduit Direction Changes - Three-way routing for complex electrical layouts
- Wire Pulling Points - Strategic access locations for long conduit runs
- Junction Applications - Combining multiple circuits in organized electrical systems
- Maintenance Access Points - Future wire additions or circuit modifications
Condulet System Benefits
Condulet outlet bodies provide superior protection and accessibility compared to standard junction boxes. The enclosed design protects conductors from environmental hazards while providing convenient access for wire pulling, splicing, and maintenance. The T-shape configuration enables efficient three-way conduit routing, reducing the need for multiple fittings and simplifying complex electrical layouts in commercial and industrial applications.
Why Choose Feraloy Iron Alloy?
Feraloy iron alloy represents Eaton Crouse-Hinds' commitment to superior material engineering, offering enhanced strength and corrosion resistance compared to standard materials. This advanced alloy construction ensures decades of reliable service in demanding electrical environments, making it the preferred choice of electrical contractors for critical infrastructure applications. The precision casting process delivers consistent quality and dimensional accuracy for professional installations.
Manufacturer Resources
Product Specs
- Area Classification:
- Ordinary/Non-Hazardous Locations
- Material:
- Feraloy iron alloy
- Nema Rating:
- 12
- Product Height:
- 4.13 in
- Product Length Depth:
- 9.19 in
- Product Weight:
- 5.4 lb
- Product Width:
- 3.13 in
- Shape:
- T
- Standards Type:
- NEC/CEC
- Trade Size:
- 2"
- Product Type:
- Conduit Outlet Body
- Product Group:
- Electrical Fitting
- Department:
- Electrical
- Product Subgroup:
- Conduit Outlet Body
