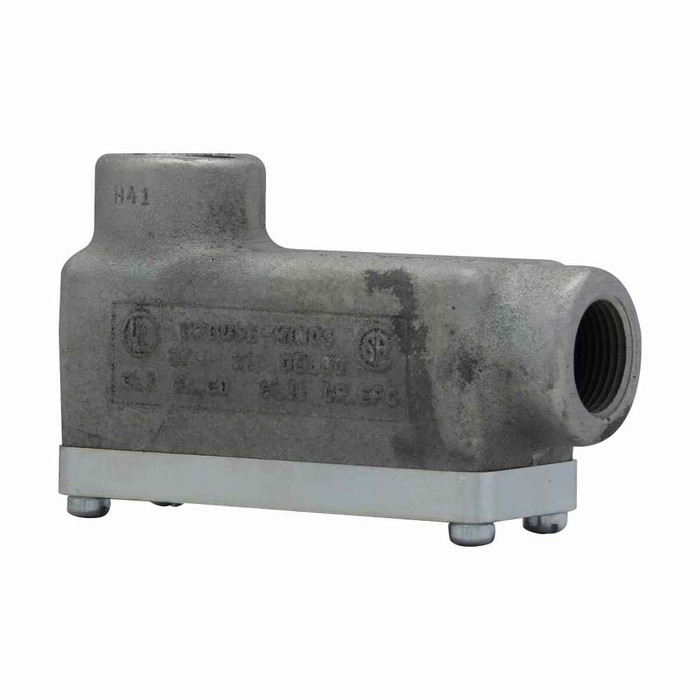

Eaton Crouse-Hinds 1/2" LB Condulet Outlet Body, Feraloy Iron Alloy, Hazardous Location

Eaton Crouse-Hinds 1/2" LB Condulet Outlet Body with Cover

Heavy-Duty Feraloy Iron Construction for Hazardous Location Applications

The Eaton Crouse-Hinds 1/2" LB Condulet Outlet Body is a premium hazardous location conduit fitting engineered for Class I, Division 1 environments. This Feraloy iron alloy outlet body delivers exceptional strength and explosion-proof protection for industrial and commercial electrical installations requiring the highest safety standards.

Key Features & Benefits

Hazardous Location Protection

• Class I, Division 1 Rating - Certified for use in areas with flammable gases and vapors under normal operating conditions
• NEMA 7 Enclosure Rating - Explosion-proof construction prevents ignition of surrounding hazardous atmospheres
• NEC/CEC Compliant - Meets all National Electrical Code and Canadian Electrical Code requirements for hazardous locations
• Precision Machined Threads - Ensures proper flame-proof joints critical for explosion-proof performance

Superior Material Construction

• Feraloy Iron Alloy - Premium material provides exceptional strength and durability beyond standard malleable iron
• Corrosion Resistant Finish - Engineered coating withstands harsh industrial environments and chemical exposure
• Heavy-Duty Wall Thickness - Robust construction handles mechanical stress and impact in demanding applications
• Precision Cast Design - Dimensional accuracy ensures proper conduit alignment and secure connections

Professional Installation Features

• LB Shape Configuration - 90-degree elbow design with removable cover for easy wire pulling and maintenance access
• Threaded Cover - Secure, removable cover allows conductor installation and future system modifications
• Standard 1/2" Trade Size - Compatible with all standard 1/2" rigid conduit and IMC systems
• Smooth Interior - Eliminates sharp edges that could damage conductor insulation during installation

Technical Specifications

This 1/2" trade size LB Condulet measures 4.81" in length, 2.44" in height, and 1.81" in width, with a total weight of 1.95 pounds reflecting its heavy-duty construction. The Feraloy iron alloy material provides superior strength compared to standard malleable iron, while the precision-machined threads ensure proper explosion-proof joints. The LB shape provides a 90-degree conduit direction change with convenient top access through the threaded cover. All dimensions and thread specifications comply with NEMA standards for hazardous location conduit fittings.

Installation Process

1. Verify conduit system is de-energized and properly locked out before beginning installation
2. Thread the Condulet body onto the incoming rigid conduit using appropriate pipe thread compound rated for hazardous locations
3. Connect the outgoing conduit run to the perpendicular hub, ensuring all threads are fully engaged
4. Remove the threaded cover and install conductors, maintaining proper fill ratios per NEC requirements
5. Apply approved thread sealant to cover threads and reinstall cover, tightening to manufacturer specifications
6. Verify all connections are properly tightened and flame-proof joints are correctly assembled before energizing

Applications

Perfect for:

• Petrochemical Facilities - Refineries, chemical processing plants, and fuel storage areas
• Manufacturing Plants - Paint booths, solvent handling areas, and chemical production facilities
• Oil and Gas Operations - Drilling platforms, pump stations, and pipeline facilities
• Pharmaceutical Manufacturing - Clean rooms and areas with flammable solvents
• Grain Handling Facilities - Elevators, mills, and storage areas with combustible dust
• Aircraft Hangars - Maintenance areas and fuel handling zones
• Marine Applications - Ship engine rooms and fuel systems
• Industrial Maintenance - Equipment connections requiring hazardous location protection

Condulet System Benefits

Condulet outlet bodies provide superior access for conductor installation and maintenance compared to standard conduit elbows. The removable cover allows easy wire pulling through direction changes, while the larger internal volume reduces conductor stress and simplifies splicing when permitted. In hazardous locations, Condulets eliminate the need for multiple conduit bends that can trap explosive gases, while providing inspection access that enhances system safety and code compliance.

Why Choose Feraloy Iron Construction?

Feraloy iron alloy represents the premium standard for hazardous location electrical fittings, offering superior strength and corrosion resistance compared to standard materials. This advanced alloy maintains dimensional stability under extreme temperature variations while providing the mechanical strength required for explosion-proof applications. Trusted by electrical professionals for over 100 years, Eaton Crouse-Hinds Feraloy construction ensures decades of reliable service in the most demanding industrial environments.
