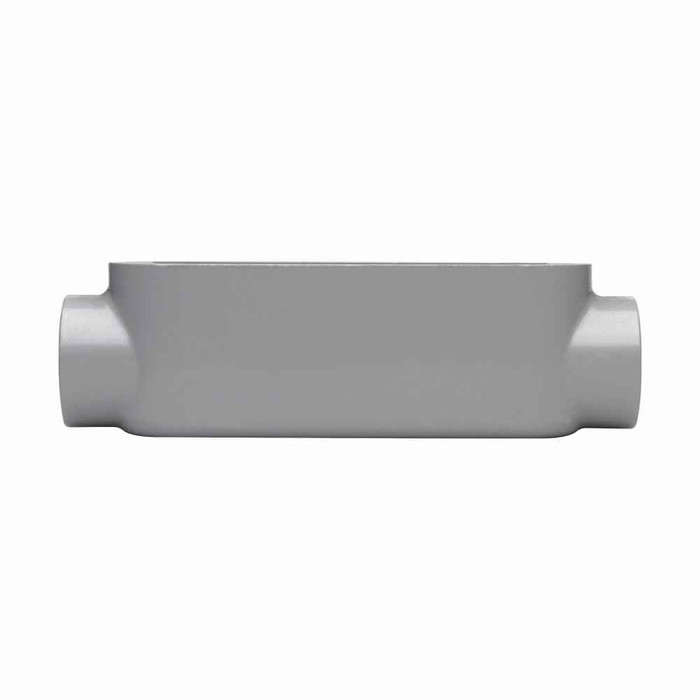

Eaton Crouse-Hinds 4" Series 5 Condulet C-Shape Outlet Body, Copper-Free Aluminum

Eaton Crouse-Hinds 4" Series 5 Condulet C-Shape Outlet Body

Premium Copper-Free Aluminum Construction for Superior Corrosion Resistance

The Eaton Crouse-Hinds 4" Series 5 Condulet C-Shape Outlet Body is a professional-grade conduit fitting engineered for demanding rigid and IMC conduit installations. This copper-free aluminum condulet delivers exceptional corrosion resistance and lightweight handling for commercial and industrial electrical systems requiring reliable conduit direction changes and wire pulling access.

Key Features & Benefits

Superior Material Construction

• Copper-Free Aluminum Body - Provides excellent corrosion resistance while maintaining lightweight handling for easier installation
• Series 5 Heavy-Duty Design - Engineered for maximum durability in demanding commercial and industrial applications
• Precision Cast Construction - Ensures consistent dimensional accuracy and smooth conduit connections
• Professional-Grade Finish - Delivers long-term appearance retention and enhanced corrosion protection

Installation Efficiency

• C-Shape Configuration - Enables 90-degree conduit direction changes with convenient wire pulling access
• 4" Trade Size - Accommodates large conductor bundles and high-capacity electrical feeds
• Rigid/IMC Compatibility - Works seamlessly with both rigid steel and intermediate metal conduit systems
• Removable Cover - Provides easy access for wire pulling, splicing, and system maintenance

Code Compliance & Safety

• NEC/CEC Compliant - Meets all National Electrical Code and Canadian Electrical Code requirements
• Ordinary Location Rated - Suitable for standard commercial and industrial environments
• Grounding Continuity - Maintains proper electrical grounding throughout the conduit system

Technical Specifications

This 4" trade size condulet features copper-free aluminum construction with C-shape configuration for 90-degree conduit routing. The unit measures 16.1" in length, 5.42" in width, and 5.36" in height, with a total weight of 10 pounds. Compatible with rigid steel and IMC conduit systems, this Series 5 condulet is rated for ordinary/non-hazardous locations and complies with NEC/CEC standards for professional electrical installations.

Installation Process

1. Verify conduit alignment and measure required offset distance for proper C-shape positioning
2. Thread rigid or IMC conduit into condulet hubs using appropriate threading compound
3. Ensure all connections are hand-tight plus 1-2 additional turns for secure mechanical connection
4. Install conduit support within 3 feet of condulet per NEC/CEC requirements
5. Remove cover for wire pulling operations, ensuring gasket remains properly seated
6. Replace cover securely after wire installation, checking that all cover screws are properly tightened

Applications

Perfect for:

• Commercial Buildings - Office complexes, retail centers, and healthcare facilities requiring large conduit systems
• Industrial Facilities - Manufacturing plants, processing facilities, and heavy industrial installations
• Power Distribution Systems - Main electrical feeds, panel connections, and high-capacity branch circuits
• Equipment Connections - Motor control centers, switchgear, and large electrical equipment feeds
• Conduit Direction Changes - 90-degree routing around structural obstacles and equipment
• Wire Pulling Access Points - Long conduit runs requiring intermediate pulling locations
• Maintenance Access - Systems requiring periodic wire inspection or modification
• Outdoor Installations - Corrosion-resistant aluminum construction ideal for weather exposure

Condulet System Benefits

Condulets provide superior access and flexibility compared to standard conduit elbows, enabling easier wire installation and future system modifications. The removable cover design allows for wire pulling in long runs, splice access when permitted by code, and simplified troubleshooting. This C-shape configuration is particularly valuable for routing conduit around obstacles while maintaining convenient access points for electrical contractors.

Why Choose Copper-Free Aluminum?

Copper-free aluminum construction delivers exceptional corrosion resistance while providing significant weight savings over steel alternatives. This material combination ensures decades of reliable service in both indoor and outdoor applications, while the lightweight design reduces installation fatigue and simplifies handling of large 4" condulets. The precision casting process ensures consistent threading and dimensional accuracy for professional-grade installations.
