Eaton Crouse-Hinds 4" LB Condu...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$214.33
$140.24

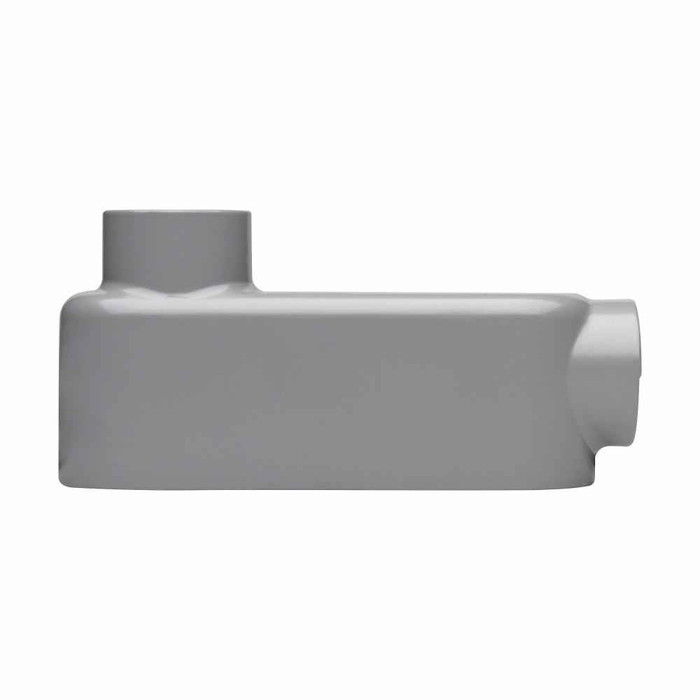

Eaton Crouse-Hinds 4" LB Condulet Series 5 Outlet Body, Copper-Free Aluminum

(No reviews yet) Write a Review

Model: LB105
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$214.33
$140.24
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks

Eaton Crouse-Hinds 4" LB Condulet Series 5 Outlet Body

Premium Copper-Free Aluminum Construction for Superior Corrosion Resistance

The Eaton Crouse-Hinds 4" LB Condulet Series 5 Outlet Body is a professional-grade conduit fitting engineered for demanding electrical installations. This copper-free aluminum outlet body delivers exceptional corrosion resistance and lightweight performance for commercial and industrial rigid/IMC conduit systems.

Key Features & Benefits

Superior Material Construction

  • Copper-Free Aluminum - Eliminates galvanic corrosion while providing excellent strength-to-weight ratio
  • Corrosion Resistant Finish - Engineered for decades of reliable service in harsh environments
  • Lightweight Design - Reduces installation fatigue and structural loading compared to iron alternatives
  • Precision Cast Construction - Ensures consistent dimensional accuracy and smooth wire pulling

Professional Installation Features

  • LB Shape Configuration - Provides 90-degree conduit routing with convenient access for wire pulling and splicing
  • 4" Trade Size - Accommodates large conductor bundles and high-capacity electrical feeds
  • Rigid/IMC Compatibility - Works seamlessly with both rigid steel and intermediate metal conduit systems
  • Removable Cover - Allows easy access for wire installation, maintenance, and system modifications

Code Compliance & Safety

  • NEC/CEC Compliant - Meets all National and Canadian Electrical Code requirements
  • Ordinary Location Rated - Suitable for standard commercial and industrial environments
  • Professional Grade Quality - Backed by Eaton Crouse-Hinds' 100+ year heritage of electrical innovation

Technical Specifications

This Series 5 Condulet features 4" trade size compatibility with rigid and IMC conduit systems. The copper-free aluminum construction provides excellent corrosion resistance while maintaining the strength required for heavy-duty electrical applications. Dimensions include 15.46" length, 7.2" height, and 5.42" width, with a total weight of 10 pounds. The LB shape configuration allows for 90-degree conduit routing with convenient top access for wire pulling and connections.

Installation Process

  1. Verify conduit alignment and ensure proper support spacing per NEC/CEC requirements
  2. Thread rigid or IMC conduit into outlet body hubs using appropriate thread compound
  3. Secure conduit connections hand-tight plus 1-2 additional turns with appropriate tools
  4. Remove cover plate and install conductors using proper wire pulling techniques
  5. Make electrical connections following manufacturer specifications and local codes
  6. Reinstall cover plate with gasket to maintain environmental protection

Applications

Perfect for:

  • Commercial Buildings - Office complexes, retail centers, hospitals, and educational facilities
  • Industrial Facilities - Manufacturing plants, processing facilities, and heavy equipment installations
  • Electrical Distribution Systems - Main service entrances, panel feeds, and large motor circuits
  • Outdoor Installations - Where corrosion resistance and weather durability are critical
  • Municipal Infrastructure - Government buildings, utilities, and public works projects
  • Equipment Connections - Motor control centers, switchgear, and large electrical equipment
  • Conduit Direction Changes - 90-degree routing in tight spaces with access requirements
  • High-Capacity Circuits - Large conductor bundles requiring 4" conduit systems

Condulet Outlet Body System Benefits

Condulet outlet bodies provide superior access compared to standard conduit elbows, making wire installation and maintenance significantly easier. The removable cover allows for future system modifications without disturbing existing conduit runs. This accessibility reduces long-term maintenance costs and improves system reliability by enabling proper wire pulling techniques and reducing conductor stress during installation.

Why Choose Copper-Free Aluminum?

Copper-free aluminum construction eliminates the galvanic corrosion that can occur when dissimilar metals are present in electrical systems. This advanced material provides excellent corrosion resistance while maintaining the strength and durability required for professional electrical installations. The lightweight properties reduce installation fatigue and structural loading, making it ideal for overhead installations and applications where weight is a concern.

Manufacturer Resources

Product Specs

Area Classification:
Ordinary/Non-Hazardous Locations
Conduit Type:
Rigid/IMC
Material:
Copper-free aluminum
Product Height:
7.2 in
Product Length Depth:
15.46 in
Product Weight:
10 lb
Product Width:
5.42 in
Shape:
LB
Standards Type:
NEC/CEC
Trade Size:
4"
Product Type:
Conduit Outlet Body
Product Group:
Electrical Fitting
Department:
Electrical
Product Subgroup:
Conduit Outlet Body
