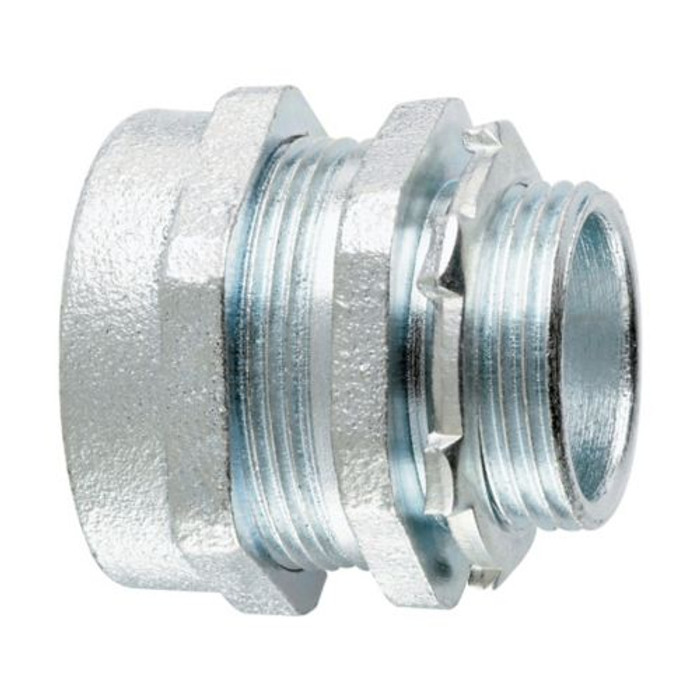

Eaton Crouse-Hinds 3/4" Rigid/IMC Compression Connector, Non-Insulated, Malleable Iron

Eaton Crouse-Hinds 3/4" Rigid/IMC Compression Connector, Non-Insulated, Malleable Iron

Professional-Grade Malleable Iron Construction for Superior Strength & Reliability

The Eaton Crouse-Hinds CPR Series 3/4" Compression Connector is a premium straight connector engineered for rigid and IMC conduit installations. This malleable iron compression fitting delivers exceptional strength and grounding continuity for commercial and industrial electrical systems, providing contractors with a reliable connection solution that exceeds steel alternatives in durability and performance.

Key Features & Benefits

Superior Material Construction

• Malleable Iron Body - Stronger than steel construction provides exceptional impact resistance and long-term durability
• Compression Design - Creates secure, vibration-resistant connections without threading requirements
• Non-Insulated Throat - Ensures excellent grounding continuity throughout the conduit system
• Precision Manufacturing - Consistent dimensional accuracy for reliable fit with rigid and IMC conduit

Installation Efficiency

• Straight Configuration - Simplifies conduit runs and reduces installation time
• Compression Connection - No threading required, reducing labor costs and installation complexity
• Universal Compatibility - Works with both rigid steel and IMC conduit systems
• Professional Grade - Trusted by electrical contractors for over 100 years

Code Compliance & Safety

• NEC/CEC Compliant - Meets all applicable electrical code requirements
• Ordinary Location Rated - Suitable for standard commercial and industrial environments
• Grounding Continuity - Non-insulated design maintains electrical continuity for safety
• Quality Assurance - Manufactured to Eaton's rigorous quality standards

Technical Specifications

This 3/4" trade size compression connector features malleable iron construction with non-insulated throat design for optimal grounding performance. The straight configuration measures 1.63" in width and height with 1.5" depth, weighing 0.23 pounds for easy handling during installation. Compatible with both rigid steel conduit and intermediate metal conduit (IMC) systems, this connector provides reliable connections in ordinary/non-hazardous locations while meeting NEC/CEC compliance standards for professional electrical installations.

Installation Process

1. Ensure conduit end is cut square and deburred to prevent damage to connector threads
2. Insert conduit fully into the connector body until it reaches the internal stop
3. Hand-tighten the compression nut to ensure proper seating against the conduit
4. Use appropriate wrenches to tighten the compression mechanism to manufacturer specifications
5. Verify secure connection by checking that conduit cannot be withdrawn from connector
6. Test grounding continuity across the connection to ensure proper electrical performance

Applications

Perfect for:

• Commercial Buildings - Office complexes, retail centers, hospitals, and educational facilities
• Industrial Facilities - Manufacturing plants, processing facilities, and heavy-duty electrical installations
• Equipment Connections - Motor control centers, switchgear, and electrical panel connections
• Conduit Extensions - Extending rigid and IMC conduit runs in straight configurations
• Municipal Infrastructure - Government buildings, schools, and public facility electrical systems
• Heavy-Duty Applications - High-vibration environments requiring secure conduit connections
• Grounding Systems - Applications requiring continuous electrical grounding throughout conduit runs
• Code-Critical Installations - Projects requiring strict NEC/CEC compliance and professional-grade components

Compression Connector System Benefits

Compression connectors offer significant advantages over traditional threaded connections, including faster installation times, consistent connection quality, and reduced risk of cross-threading. The compression mechanism creates a mechanical bond that maintains integrity under vibration and thermal cycling, making these connectors ideal for industrial environments and equipment connections where reliability is critical.

Why Choose Malleable Iron Construction?

Malleable iron provides superior strength compared to standard steel fittings, offering enhanced impact resistance and dimensional stability under stress. This material choice ensures long-term performance in demanding electrical installations while maintaining the grounding continuity essential for safe electrical systems. Combined with Eaton Crouse-Hinds' century of electrical innovation, this connector delivers the reliability and performance that electrical professionals demand for critical installations.
