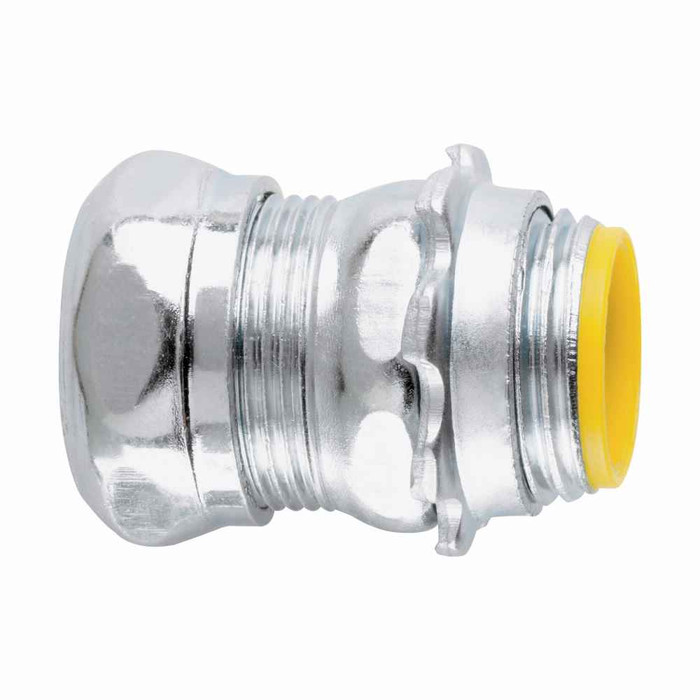

Eaton Crouse-Hinds 3/4" EMT Compression Connector, Steel, Insulated, Concrete Tight

Eaton Crouse-Hinds 3/4" EMT Compression Connector, Steel, Insulated, Concrete Tight

Professional-Grade Threadless Connection for Secure EMT Installations

The Eaton Crouse-Hinds 3/4" EMT Compression Connector is a premium threadless fitting engineered for reliable electrical metallic tubing connections in commercial and industrial installations. This steel compression connector delivers superior grounding continuity and concrete tight sealing with insulated throat protection for professional electrical contractors.

Key Features & Benefits

Superior Connection Technology

• Compression Design - Creates secure, vibration-resistant connections without threading requirements
• Insulated Throat - Protects conductors from sharp edges while maintaining electrical isolation
• Concrete Tight Seal - Prevents moisture and concrete infiltration in embedded applications
• Threadless Installation - Eliminates field threading, reducing installation time and labor costs

Professional Construction

• Steel Construction - Provides exceptional durability and mechanical strength for demanding applications
• Precision Manufacturing - Ensures consistent fit and reliable performance across installations
• Corrosion Resistance - Steel finish protects against environmental degradation
• NEC/CEC Compliance - Meets all applicable electrical code requirements for safe installations

Installation Efficiency

• Quick Connection - Compression mechanism allows rapid, secure attachment to EMT conduit
• Reliable Grounding - Ensures continuous equipment grounding path through the raceway system
• Versatile Mounting - Compatible with standard electrical boxes and enclosures

Technical Specifications

This 3/4" trade size EMT compression connector features steel construction with insulated throat design for conductor protection. The connector measures 1.38" in height and width with 1.19" depth, weighing 0.16 pounds for easy handling. The concrete tight design prevents moisture infiltration in embedded applications, while the threadless compression mechanism eliminates the need for field threading. Compliant with NEC/CEC standards for ordinary/non-hazardous locations, this straight connector provides reliable performance in commercial and industrial electrical systems.

Installation Process

1. Cut EMT conduit to required length using appropriate cutting tools
2. Remove burrs and sharp edges from conduit end using reaming tools
3. Insert conduit fully into the compression connector body
4. Tighten compression mechanism to manufacturer specifications
5. Verify secure connection by checking for proper conduit retention
6. Install connector into electrical box or enclosure knockout

Applications

Perfect for:

• Commercial Buildings - Office complexes, retail centers, and healthcare facilities
• Industrial Facilities - Manufacturing plants, processing centers, and distribution warehouses
• Concrete Embedded Systems - Underground conduit runs and slab-on-grade installations
• Equipment Connections - Motor control centers, switchgear, and distribution panels
• Wet Location Applications - Areas requiring moisture protection and environmental sealing
• Municipal Infrastructure - Schools, government buildings, and public facilities
• Data Center Installations - Critical power distribution and backup systems
• Hospital Electrical Systems - Medical equipment power and emergency circuits

EMT Compression System Benefits

EMT compression connectors provide superior performance compared to set screw alternatives by creating uniform pressure around the entire conduit circumference. This compression design eliminates potential loose connections that can develop over time with set screw fittings, while providing better grounding continuity and vibration resistance. The threadless design reduces installation time and eliminates the need for threading equipment in the field.

Why Choose Insulated Throat Design?

The insulated throat construction protects conductor insulation from damage during wire pulling operations while maintaining electrical isolation between the raceway system and conductors. This design feature reduces the risk of ground faults and ensures long-term system reliability. Combined with Eaton Crouse-Hinds' century of electrical innovation, this connector delivers the professional-grade performance that electrical contractors trust for critical installations.
