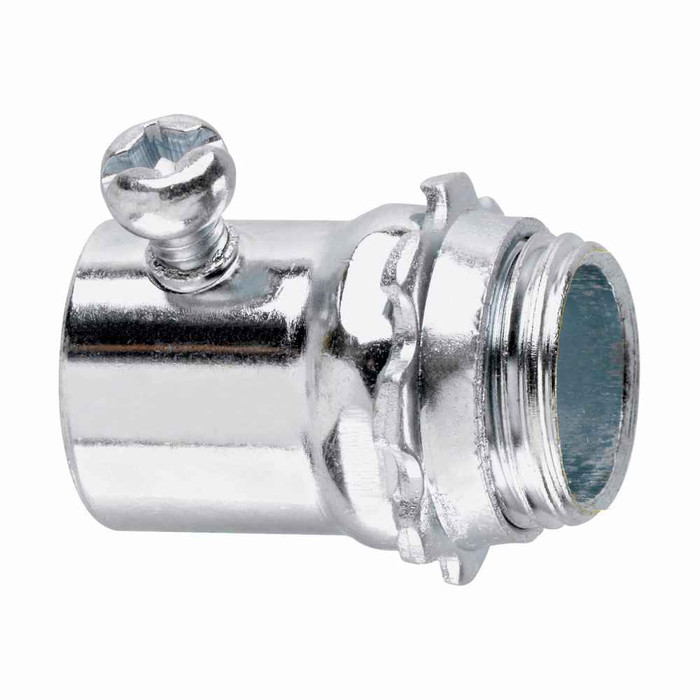

Eaton Crouse-Hinds 1/2" EMT Set Screw Connector, Non-Insulated Steel

Eaton Crouse-Hinds 1/2" EMT Set Screw Connector, Non-Insulated Steel

Professional-Grade EMT Connection with Superior Grounding Continuity

The Eaton Crouse-Hinds 1/2" EMT Set Screw Connector is a professional-grade straight connector engineered for secure EMT conduit terminations in electrical enclosures. This steel connector delivers reliable mechanical connection and superior grounding continuity for commercial and industrial electrical installations.

Key Features & Benefits

Superior Connection Reliability

• Set Screw Design - Provides secure mechanical connection that won't loosen over time
• Non-Insulated Throat - Ensures excellent grounding continuity through direct metal-to-metal contact
• Steel Construction - Delivers exceptional strength and durability for long-term performance
• Precision Threading - Smooth installation into electrical enclosures and boxes

Installation Efficiency

• Straight Configuration - Simplifies conduit routing and reduces installation time
• Standard Trade Size - 1/2" sizing fits most common EMT applications
• Compact Profile - Minimizes space requirements in crowded electrical enclosures
• Easy Tightening - Set screws provide quick, secure connection without special tools

Code Compliance & Safety

• NEC/CEC Compliant - Meets all applicable electrical code requirements
• Ordinary Location Rated - Suitable for standard commercial and industrial environments
• Professional Grade - Engineered to contractor specifications for reliable performance

Technical Specifications

This connector accommodates 1/2" trade size EMT conduit with steel construction for maximum durability. The non-insulated throat design provides direct grounding continuity, while the straight configuration allows for efficient conduit routing. Compact dimensions of 0.88" width, 0.88" height, and 1.5" length minimize enclosure space requirements. At just 0.09 pounds, this lightweight connector reduces installation fatigue while maintaining professional-grade strength.

Installation Process

1. Select appropriate knockout size in electrical enclosure or box
2. Thread connector into knockout opening hand-tight
3. Insert EMT conduit fully into connector throat
4. Tighten set screws evenly to secure conduit connection
5. Verify grounding continuity through non-insulated throat contact
6. Complete final tightening of connector to enclosure

Applications

Perfect for:

• Commercial Buildings - Office complexes, retail spaces, and healthcare facilities
• Industrial Facilities - Manufacturing plants, warehouses, and processing centers
• Panel Connections - Main electrical panels, sub-panels, and distribution boards
• Equipment Terminations - Motor control centers, switchgear, and control cabinets
• Junction Box Connections - Pull boxes, outlet boxes, and device boxes
• Conduit Extensions - EMT runs requiring secure enclosure connections
• Grounding Applications - Systems requiring reliable equipment grounding continuity
• Ordinary Locations - Standard electrical environments without special hazard classifications

EMT System Benefits

EMT (Electrical Metallic Tubing) systems offer superior protection for electrical conductors while providing excellent grounding continuity. This set screw connector ensures reliable mechanical and electrical connection between EMT conduit and electrical enclosures, maintaining system integrity throughout the installation. The steel construction provides long-term durability that withstands thermal cycling and mechanical stress common in commercial and industrial environments.

Why Choose Non-Insulated Design?

The non-insulated throat design provides direct metal-to-metal contact between the EMT conduit and connector, ensuring superior grounding continuity required by electrical codes. This design eliminates potential grounding issues while providing the mechanical strength needed for professional electrical installations. Trusted by electrical contractors for over 100 years, Eaton Crouse-Hinds connectors deliver the reliability and performance that electrical professionals demand.
