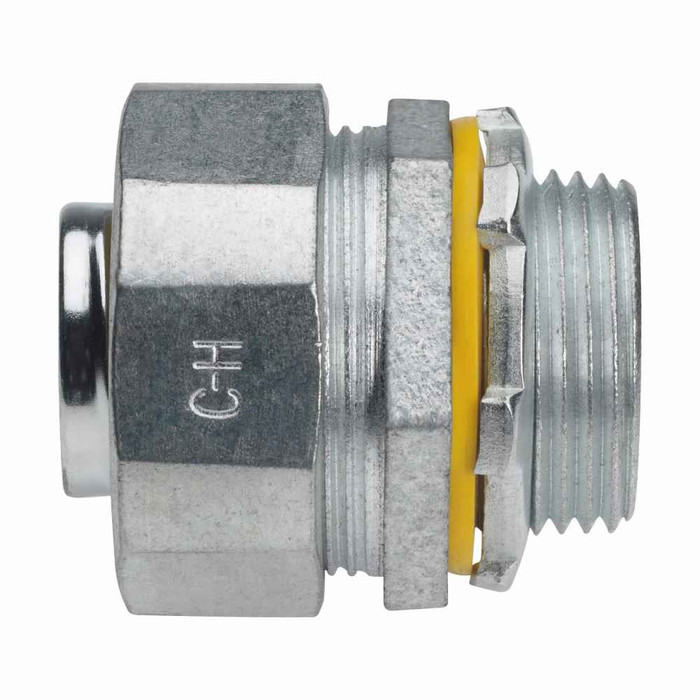

Eaton Crouse-Hinds 1" Liquidtight Connector, FMC, Straight, Malleable Iron

Eaton Crouse-Hinds 1" Liquidtight Connector, FMC, Straight, Malleable Iron

Professional-Grade Liquidtight Protection for Hazardous Location Applications

The Eaton Crouse-Hinds 1" Liquidtight Connector is a premium straight connector engineered for flexible metal conduit (FMC) installations in hazardous and classified locations. This malleable iron connector delivers superior strength and reliable liquidtight sealing for commercial and industrial electrical systems where moisture protection is critical.

Key Features & Benefits

Superior Material Construction

• Malleable Iron Body - Stronger than steel construction provides exceptional durability and impact resistance
• Non-Insulated Design - Maintains grounding continuity throughout the conduit system for enhanced safety
• Precision Engineering - Manufactured to exact tolerances for consistent, reliable connections
• Corrosion Resistance - Built to withstand harsh industrial environments and outdoor installations

Hazardous Location Performance

• Class I, Division 2 Rating - Approved for use in hazardous locations with flammable gases and vapors
• Liquidtight Sealing - Prevents moisture, dust, and contaminant ingress into electrical systems
• NEC/CEC Compliant - Meets all applicable electrical code requirements for professional installations
• Straight Configuration - Provides direct conduit connections without angular offset

Installation Efficiency

• 1" Trade Size - Standard sizing for common commercial and industrial applications
• FMC Compatibility - Specifically designed for flexible metal conduit systems
• Secure Connection - Engineered threading ensures tight, vibration-resistant assembly
• Professional Threading - Smooth engagement reduces installation time and effort

Technical Specifications

This 1" trade size liquidtight connector features malleable iron construction with non-insulated throat design for optimal grounding continuity. The straight connector configuration provides direct FMC connections with Class I, Division 2 hazardous location rating. Product dimensions measure 2.06" length x 0.81" width x 0.81" height with 0.4 lb weight. NEC/CEC compliant construction ensures code compliance for professional electrical installations.

Installation Process

1. Verify proper FMC size and cut conduit to required length with appropriate cutting tools
2. Remove any sharp edges or burrs from conduit end to prevent damage to sealing components
3. Insert flexible metal conduit fully into connector body until properly seated
4. Thread connector into enclosure or junction box opening, ensuring proper engagement
5. Tighten connection to manufacturer specifications using appropriate wrenches
6. Verify liquidtight seal integrity and proper grounding continuity throughout system

Applications

Perfect for:

• Chemical Processing Facilities - Refineries, petrochemical plants, and chemical manufacturing
• Industrial Manufacturing - Food processing, pharmaceutical, and heavy manufacturing environments
• Outdoor Installations - Weather-exposed electrical connections requiring moisture protection
• Motor Control Centers - Flexible connections to motors and rotating equipment
• Pump Stations - Water treatment, sewage, and industrial pumping applications
• Marine Environments - Docks, shipyards, and coastal industrial facilities
• Agricultural Systems - Grain handling, livestock facilities, and irrigation control systems
• Equipment Connections - Vibrating machinery and equipment requiring flexible conduit runs

Liquidtight Connector System Benefits

Liquidtight connectors provide essential moisture and contaminant protection that standard conduit fittings cannot match. The flexible metal conduit compatibility allows for equipment movement and vibration absorption while maintaining electrical continuity. This combination makes liquidtight systems ideal for industrial environments where both flexibility and environmental protection are required.

Why Choose Malleable Iron Construction?

Malleable iron offers superior strength compared to standard steel fittings, providing exceptional impact resistance and long-term durability in demanding industrial applications. The material's inherent toughness prevents cracking under stress while maintaining dimensional stability over decades of service. Combined with Eaton Crouse-Hinds' century of electrical innovation, this connector delivers the reliability that electrical professionals demand for critical hazardous location installations.
