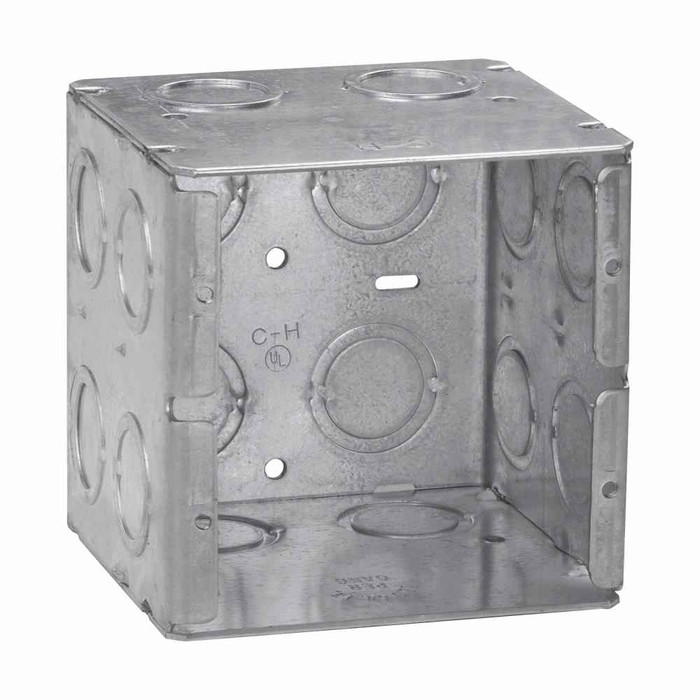

Eaton Crouse-Hinds Two-Gang Steel Masonry Box, 44 Cubic Inch Capacity

Eaton Crouse-Hinds Two-Gang Steel Masonry Box

Professional-Grade Masonry Installation Solution with 44 Cubic Inch Capacity

The Eaton Crouse-Hinds Two-Gang Steel Masonry Box is a professional-grade electrical enclosure engineered for permanent masonry installations. This heavy-duty steel construction box delivers reliable device mounting and wire management for commercial and residential masonry applications, providing 44 cubic inches of capacity for complex wiring configurations.

Key Features & Benefits

Superior Construction & Durability

• Heavy-Duty Steel Construction - Provides exceptional strength and long-term durability in masonry installations
• Two-Gang Configuration - Accommodates dual device installations with proper spacing and support
• 44 Cubic Inch Capacity - Generous wire capacity meets NEC fill requirements for complex wiring scenarios
• Professional-Grade Manufacturing - Precision-formed construction ensures consistent dimensions and reliable performance

Versatile Conduit Connectivity

• Multiple 1/2" Knockouts - Four strategically positioned 1/2" trade size openings for flexible conduit routing
• Multiple 3/4" Knockouts - Four 3/4" trade size openings accommodate larger conduit runs and cable entries
• Optimized Knockout Placement - Strategic positioning allows for efficient conduit routing in masonry walls
• Clean Knockout Removal - Precision-formed knockouts remove cleanly without sharp edges or debris

Code Compliance & Safety

• NEC/CEC Compliant Design - Meets all applicable electrical code requirements for masonry installations
• Proper Wire Fill Capacity - 44 cubic inch volume ensures adequate space for conductor terminations
• Secure Device Mounting - Rigid construction provides stable platform for switches, receptacles, and GFCI devices
• Grounding Continuity - Steel construction maintains proper electrical grounding throughout the installation

Technical Specifications

This two-gang masonry box features steel construction with 3.75-inch dimensions (height, width, and depth) and weighs 1.2 pounds for substantial installation stability. The box includes four 1/2" trade size knockouts and four 3/4" trade size knockouts positioned for optimal conduit routing flexibility. With 44 cubic inches of internal capacity, this enclosure accommodates complex wiring configurations while maintaining NEC/CEC compliance for ordinary/non-hazardous locations. The steel construction provides superior strength compared to plastic alternatives and ensures long-term durability in permanent masonry installations.

Installation Process

1. Position box in masonry opening ensuring proper alignment with finished wall surface
2. Secure box to masonry structure using appropriate fasteners for wall material type
3. Remove required knockouts using proper knockout tools to prevent damage to adjacent openings
4. Install conduit connectors or cable clamps in selected knockout openings
5. Route conduits or cables to box location and secure connections
6. Pull conductors through conduits and into box, maintaining proper bend radius
7. Install devices using standard mounting screws, ensuring proper grounding connections
8. Verify all connections are secure and box is properly grounded before energizing

Applications

Perfect for:

• Commercial Masonry Buildings - Office complexes, retail stores, and institutional facilities
• Residential Masonry Construction - Brick homes, stone veneer installations, and basement applications
• Industrial Masonry Structures - Manufacturing facilities, warehouses, and processing plants
• Educational Facilities - Schools, universities, and training centers with masonry construction
• Healthcare Facilities - Hospitals, clinics, and medical buildings requiring permanent installations
• Municipal Buildings - Government facilities, fire stations, and public works buildings
• Religious Facilities - Churches, temples, and community centers with masonry walls
• Renovation Projects - Upgrading electrical systems in existing masonry structures

Masonry Box System Benefits

Masonry boxes provide superior installation stability compared to standard outlet boxes by integrating directly with structural masonry elements. The heavy-duty construction withstands the mechanical stresses of masonry installation while providing a permanent, vibration-resistant mounting platform for electrical devices. This eliminates common issues with loose devices and provides professional-grade reliability for high-traffic commercial and industrial applications.

Why Choose Steel Construction?

Steel masonry boxes offer superior strength and durability compared to plastic alternatives, making them ideal for permanent installations where long-term reliability is critical. The steel construction provides excellent grounding continuity, resists impact damage during installation, and maintains dimensional stability under temperature variations. For electrical contractors working on commercial and industrial projects, steel masonry boxes represent the professional-grade solution that ensures installations meet the highest standards for safety and longevity.
