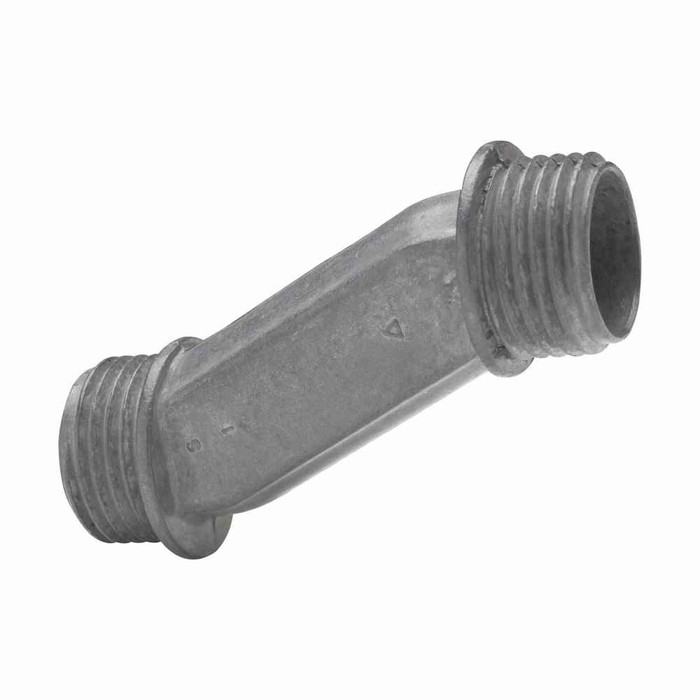

Eaton Crouse-Hinds 1/2" Offset Conduit Nipple, Zinc Die Cast, Rigid/IMC

Eaton Crouse-Hinds 1/2" Offset Conduit Nipple, Zinc Die Cast, Rigid/IMC

Precision-Cast Solution for Professional Conduit Offset Applications

The Eaton Crouse-Hinds 1/2" Offset Conduit Nipple is a precision-engineered zinc die cast fitting designed for professional rigid and IMC conduit installations requiring directional changes. This heavy-duty offset nipple delivers superior dimensional stability and corrosion resistance for commercial and industrial electrical systems where standard straight connections won't work.

Key Features & Benefits

Precision Zinc Die Cast Construction

• Dimensional Accuracy - Die cast manufacturing ensures consistent threading and precise fit with rigid/IMC conduit
• Superior Corrosion Resistance - Zinc die cast material provides excellent protection against moisture and environmental elements
• Smooth Interior Finish - Precision casting creates smooth wire pulling surfaces that protect conductor insulation
• Durable Construction - Heavy-duty design withstands installation stresses and long-term service demands

Professional Installation Advantages

• Offset Design - Enables conduit routing around obstacles and structural elements
• Standard Threading - Compatible with all standard rigid and IMC conduit systems
• Compact Profile - Space-efficient design minimizes installation footprint
• Easy Wire Pulling - Smooth internal transitions reduce wire pulling effort and conductor damage

Code Compliance & Safety

• NEC/CEC Compliant - Meets National Electrical Code and Canadian Electrical Code requirements
• Professional Grade - Engineered to electrical contractor specifications for reliable performance
• Grounding Continuity - Maintains electrical continuity throughout the conduit system

Technical Specifications

This 1/2" trade size offset conduit nipple features zinc die cast construction with standard rigid/IMC threading on both ends. The fitting measures 3.24 inches in length with a 1.67-inch width and 0.95-inch height, weighing 0.24 pounds. Designed for ordinary/non-hazardous locations, it provides reliable service in commercial and industrial electrical installations while maintaining NEC/CEC compliance standards.

Installation Process

1. Verify conduit ends are properly reamed and deburred to prevent conductor damage
2. Apply appropriate thread compound to male threads for weather-tight seal
3. Thread nipple hand-tight into first conduit section, then tighten with appropriate wrench
4. Align offset direction as required for installation pathway
5. Connect second conduit section, ensuring proper thread engagement
6. Verify grounding continuity throughout the connection if required by installation

Applications

Perfect for:

• Commercial Buildings - Office complexes, retail spaces, and healthcare facilities
• Industrial Facilities - Manufacturing plants, processing facilities, and warehouses
• Equipment Connections - Motor control centers, switchgear, and distribution panels
• Structural Obstacles - Routing around beams, columns, and building elements
• Panel Connections - Electrical panel and enclosure entry applications
• Conduit Extensions - Extending rigid/IMC runs with directional changes
• Municipal Projects - Schools, government buildings, and public infrastructure
• Heavy-Duty Applications - High-vibration environments requiring robust connections

Offset Nipple System Benefits

Offset conduit nipples provide essential flexibility in rigid conduit systems where straight connections cannot accommodate structural requirements or space constraints. Unlike field-bent conduit or multiple fittings, offset nipples deliver precise directional changes while maintaining smooth wire pulling characteristics and system integrity. This single-piece solution reduces installation time and potential leak points compared to multiple-fitting alternatives.

Why Choose Zinc Die Cast Construction?

Eaton Crouse-Hinds zinc die cast offset nipples offer superior dimensional accuracy and consistency compared to other manufacturing methods. The precision casting process ensures perfect thread engagement and smooth internal surfaces, while the zinc material provides excellent corrosion resistance for long-term reliability. This combination of precision manufacturing and durable materials makes these fittings the preferred choice of electrical contractors for professional installations requiring both performance and longevity.
