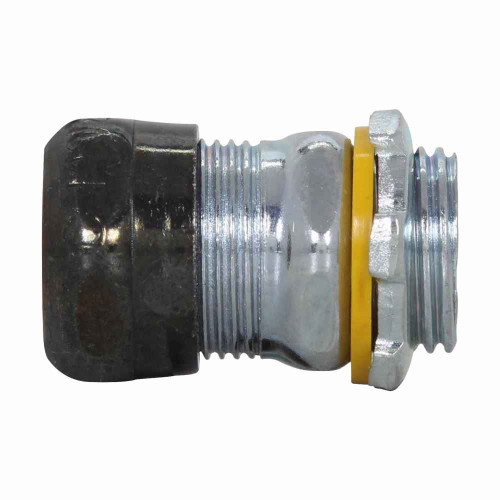

Eaton Crouse-Hinds 1-1/2" EMT Raintight Compression Connector, Steel, Non-Insulated

Eaton Crouse-Hinds 1-1/2" EMT Raintight Compression Connector

Weather-Sealed Steel Construction for Demanding Electrical Installations

The Eaton Crouse-Hinds 1-1/2" EMT Raintight Compression Connector is a professional-grade straight connector engineered for secure, weather-resistant conduit connections. This steel compression fitting delivers superior sealing performance and reliable electrical continuity for commercial and industrial EMT installations in wet locations.

Key Features & Benefits

Raintight Weather Protection

• Compression Sealing Technology - Creates weatherproof seal that prevents moisture infiltration in outdoor installations
• Wet Location Rated - Engineered for direct exposure to rain, snow, and harsh environmental conditions
• Corrosion-Resistant Steel - Zinc-plated finish provides long-term protection against rust and deterioration
• NEMA Compliant Design - Meets stringent standards for outdoor electrical enclosure protection

Professional Installation Advantages

• Compression Connection - Eliminates threading requirements while providing superior grip strength on EMT conduit
• Non-Insulated Throat - Maintains electrical continuity and grounding path through the connector body
• Straight Configuration - Provides direct conduit-to-enclosure connection without directional changes
• Tool-Optimized Design - Compatible with standard compression tools for efficient field installation

Heavy-Duty Construction

• Steel Body Construction - Delivers exceptional mechanical strength and impact resistance
• Precision Threading - Ensures smooth engagement with electrical enclosures and junction boxes
• 1-1/2" Trade Size - Accommodates larger wire bundles and higher ampacity circuits
• NEC/CEC Compliant - Meets all applicable electrical code requirements for conduit fittings

Technical Specifications

This 1-1/2" trade size compression connector features steel construction with zinc-plated finish for corrosion resistance. The straight, non-insulated design maintains grounding continuity while providing raintight sealing for wet location applications. Compatible with standard EMT conduit and designed for ordinary/non-hazardous locations per NEC/CEC standards. Product dimensions: 4.05" length x 2.57" width x 1.28" height, weighing 0.5 pounds for robust field performance.

Installation Process

1. Cut EMT conduit to required length using appropriate cutting tools, ensuring square, burr-free ends
2. Slide compression nut and sealing ring onto conduit end before insertion into connector body
3. Insert conduit fully into connector throat until it reaches the internal stop
4. Position sealing ring properly against connector body to ensure weatherproof seal
5. Thread compression nut onto connector body and tighten to manufacturer specifications
6. Verify secure mechanical connection and proper sealing ring compression before energizing

Applications

Perfect for:

• Outdoor Electrical Installations - Parking lot lighting, exterior building circuits, and landscape electrical systems
• Industrial Facilities - Manufacturing plants, processing equipment, and heavy machinery electrical connections
• Commercial Buildings - Rooftop HVAC units, exterior signage, and weather-exposed electrical panels
• Municipal Infrastructure - Street lighting systems, traffic control equipment, and public facility electrical systems
• Agricultural Applications - Barn electrical systems, irrigation controls, and outdoor equipment connections
• Marine Environments - Dock electrical systems, boat lift controls, and waterfront facility installations
• Wet Location Requirements - Car wash facilities, food processing plants, and chemical processing areas
• Equipment Connections - Motor control centers, switchgear, and electrical distribution panels in exposed locations

EMT Compression System Benefits

Compression connectors provide superior performance compared to set screw alternatives in demanding applications. The compression mechanism creates uniform pressure around the entire conduit circumference, eliminating hot spots and ensuring consistent electrical continuity. This design also provides enhanced pull-out resistance and vibration immunity, making it ideal for industrial environments where mechanical stress is a concern. The raintight sealing capability extends system reliability in wet locations where moisture infiltration could compromise electrical safety.

Why Choose Steel Construction?

Steel construction delivers exceptional durability and mechanical strength for demanding electrical installations. The zinc-plated finish provides superior corrosion resistance compared to uncoated alternatives, ensuring decades of reliable service in outdoor environments. Steel's high tensile strength makes it ideal for applications subject to mechanical stress, vibration, or potential impact damage. Combined with Eaton Crouse-Hinds' precision manufacturing and quality control, this connector represents the professional choice for contractors who demand long-term reliability and code compliance in their electrical installations.
