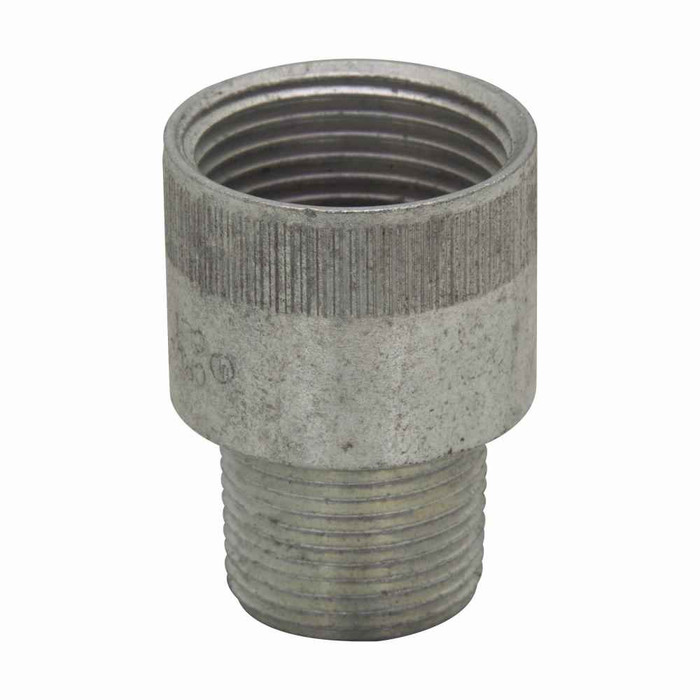

Eaton Crouse-Hinds 1/2" to 3/4" NPT Rigid/IMC Adapter, Steel

Eaton Crouse-Hinds REA Series 1/2" to 3/4" NPT Rigid/IMC Adapter

Professional-Grade Steel Adapter for Hazardous Location Conduit Transitions

The Eaton Crouse-Hinds REA Series 1/2" to 3/4" NPT Adapter is a professional-grade steel fitting engineered for hazardous location electrical installations. This Class I, Division 1 rated adapter delivers reliable conduit size transitions for rigid and IMC conduit systems in demanding industrial environments.

Key Features & Benefits

Hazardous Location Performance

• Class I, Division 1 Rating - Certified for use in hazardous locations with flammable gases and vapors
• NEC/CEC Compliant Design - Meets all applicable electrical code requirements for classified areas
• Explosion-Proof Construction - Engineered to contain internal explosions and prevent ignition of surrounding atmosphere
• Professional Installation Ready - Designed for reliable performance in critical industrial applications

Superior Steel Construction

• Durable Steel Material - Provides exceptional strength and impact resistance for industrial environments
• Precision Threading - Male 1/2" NPT to female 3/4" NPT connections ensure secure, leak-tight joints
• Corrosion Resistant Finish - Engineered coating protects against environmental degradation
• Compact Design - 1.19" length and 1.8" height minimize space requirements in crowded installations

Installation Efficiency

• Standard NPT Threading - Compatible with all standard rigid and IMC conduit fittings
• Lightweight Construction - At only 0.16 lbs, reduces installation fatigue and handling time
• Versatile Orientation - Can be installed in any position to accommodate complex routing requirements

Technical Specifications

This REA series adapter features male 1/2" NPT input connection transitioning to female 3/4" NPT output connection, constructed from durable steel with Class I, Division 1 hazardous location rating. The compact fitting measures 1.19" in length and width with 1.8" height, weighing just 0.16 pounds. Designed for rigid and IMC conduit systems, this adapter meets NEC/CEC standards and provides reliable performance in classified electrical installations.

Installation Process

1. Verify conduit system is de-energized and properly locked out/tagged out
2. Apply appropriate thread sealant to male 1/2" NPT connection
3. Thread adapter hand-tight into female 1/2" NPT fitting or hub
4. Tighten with appropriate wrench to manufacturer's torque specifications
5. Apply thread sealant to 3/4" conduit or fitting to be connected
6. Thread 3/4" component into female end of adapter and tighten securely
7. Verify all connections are properly sealed and mechanically secure

Applications

Perfect for:

• Chemical Processing Plants - Conduit transitions in areas with flammable vapor exposure
• Oil and Gas Facilities - Electrical installations in classified hazardous zones
• Petrochemical Refineries - Critical electrical infrastructure in explosive atmospheres
• Paint Spray Booths - Conduit size changes in solvent vapor environments
• Grain Handling Facilities - Electrical systems in combustible dust locations
• Pharmaceutical Manufacturing - Clean room electrical installations with solvent exposure
• Industrial Equipment Connections - Motor and control panel conduit transitions
• Hazardous Area Lighting - Conduit routing for explosion-proof luminaires

Rigid/IMC Conduit System Benefits

Rigid and IMC conduit systems provide superior mechanical protection and grounding continuity compared to flexible conduit alternatives. The threaded connections create secure, permanent installations that maintain system integrity under extreme conditions. This adapter enables seamless integration between different conduit sizes while maintaining the explosion-proof characteristics essential for hazardous location installations.

Why Choose Class I, Division 1 Rating?

Class I, Division 1 rated fittings are engineered for the most demanding hazardous locations where flammable gases or vapors may be present under normal operating conditions. This Eaton Crouse-Hinds adapter provides the highest level of safety assurance, with explosion-proof construction that contains internal arcs and prevents ignition of surrounding atmosphere. The precision engineering and rigorous testing ensure reliable performance in critical industrial applications where safety cannot be compromised.
