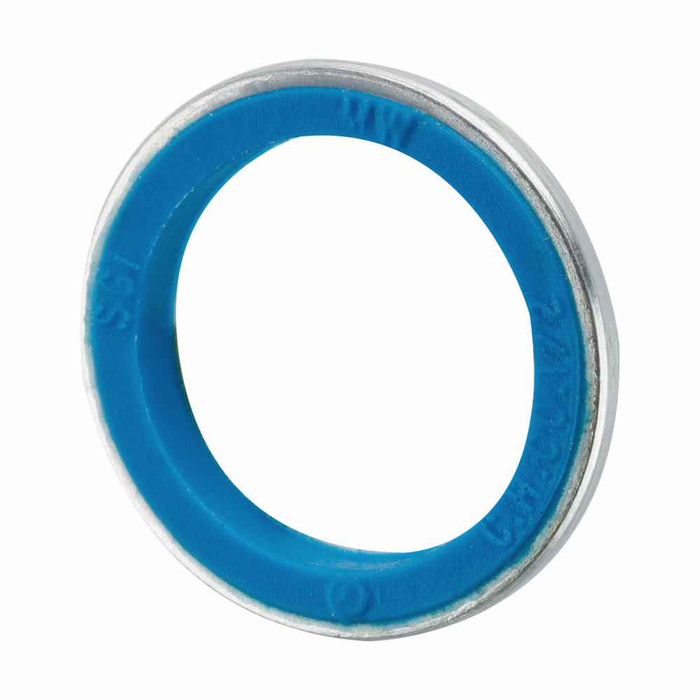

Eaton Crouse-Hinds 3/8"-1/2" Rigid/IMC Self-Retaining Gasket, PVC with Steel Ring

Eaton Crouse-Hinds 3/8"-1/2" Rigid/IMC Self-Retaining Gasket, PVC with Steel Ring

Professional-Grade Sealing Solution for Weather-Resistant Conduit Connections

The Eaton Crouse-Hinds 3/8"-1/2" Rigid/IMC Self-Retaining Gasket is a premium sealing component engineered for reliable weather protection in rigid and IMC conduit systems. This PVC gasket with steel reinforcement ring delivers superior moisture protection and long-term durability for commercial and industrial electrical installations requiring dependable environmental sealing.

Key Features & Benefits

Advanced Sealing Technology

• Self-Retaining Design - Stays securely in position during installation, eliminating gasket displacement and ensuring consistent seal integrity
• PVC Construction - Provides excellent chemical resistance and maintains flexibility across wide temperature ranges
• Steel Reinforcement Ring - Adds structural integrity and prevents gasket deformation under compression loads
• Precision Molded Profile - Ensures optimal sealing contact with conduit threads and fitting surfaces

Installation Efficiency

• Universal Compatibility - Fits both 3/8" and 1/2" trade size rigid and IMC conduit systems
• Quick Installation - Self-retaining feature eliminates need for adhesives or special positioning tools
• Consistent Performance - Maintains seal integrity through multiple assembly/disassembly cycles
• Visual Confirmation - Easy to verify proper gasket placement during installation

Long-Term Reliability

• Weather Resistance - Withstands UV exposure, temperature cycling, and moisture infiltration
• Chemical Compatibility - PVC material resists common industrial chemicals and cleaning agents
• Dimensional Stability - Steel ring prevents gasket shrinkage and maintains seal effectiveness over time

Technical Specifications

This self-retaining gasket accommodates 3/8" and 1/2" trade size rigid and IMC conduit applications with PVC construction and integrated steel reinforcement ring. The gasket measures 1.13 inches in diameter with a compact 0.19-inch profile height, weighing just 0.01 pounds for minimal impact on fitting assembly. Designed for ordinary/non-hazardous locations with NEC/CEC compliance, this gasket provides reliable environmental sealing in commercial and industrial electrical systems.

Installation Process

1. Verify conduit and fitting threads are clean and free of debris or cutting oils
2. Position gasket over conduit threads with steel ring facing the fitting connection
3. Confirm gasket seats properly in the fitting's gasket groove or sealing surface
4. Thread fitting onto conduit, ensuring gasket remains properly positioned
5. Tighten connection to manufacturer's specifications without over-compression
6. Verify gasket compression is uniform around the entire circumference

Applications

Perfect for:

• Outdoor Electrical Systems - Weather-exposed conduit connections requiring moisture protection
• Industrial Facilities - Manufacturing plants, processing facilities, and heavy industrial installations
• Commercial Buildings - Office complexes, retail centers, and institutional facilities
• Municipal Infrastructure - Schools, government buildings, and public utility installations
• Agricultural Systems - Barn electrical systems, irrigation controls, and farm equipment connections
• Parking Structures - Covered parking areas and underground garage electrical systems
• Equipment Connections - Motor control centers, switchgear, and electrical panel connections
• Conduit Extensions - Junction points where environmental sealing is critical

Rigid/IMC Conduit System Benefits

Rigid and IMC conduit systems provide superior mechanical protection and grounding continuity compared to flexible conduit alternatives. When properly sealed with quality gaskets, these systems offer excellent protection against moisture infiltration, making them ideal for outdoor installations and wet locations. The threaded connections provide secure mechanical joints that maintain integrity under vibration and thermal cycling.

Why Choose Self-Retaining Gasket Technology?

Self-retaining gaskets eliminate the most common cause of seal failure - gasket displacement during installation. Traditional gaskets can shift, fold, or fall out during fitting assembly, creating gaps that allow moisture infiltration. The self-retaining design ensures the gasket stays exactly where it needs to be, providing consistent seal performance and reducing callbacks for moisture-related electrical problems. Combined with Eaton Crouse-Hinds' century of electrical innovation, this gasket delivers the reliability electrical professionals demand.
