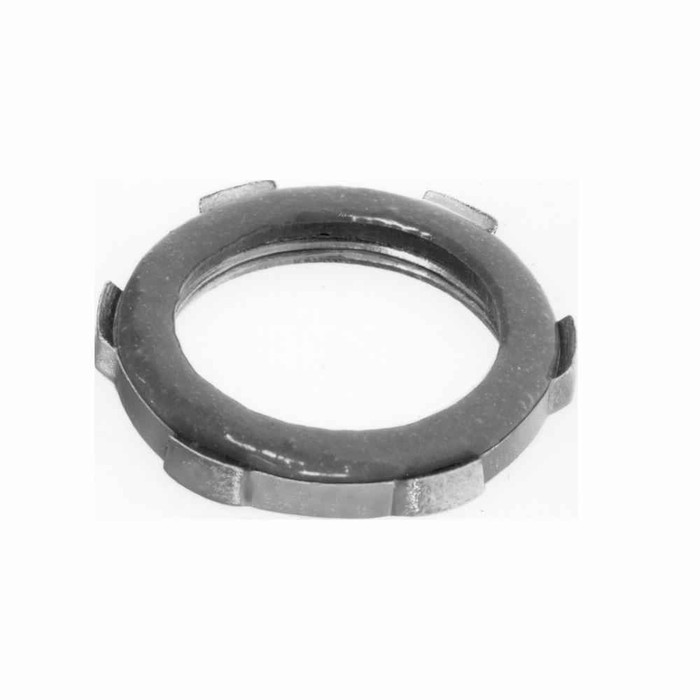

Eaton Crouse-Hinds 1/2" Rigid/IMC Sealing Locknut, Steel Construction
Professional-Grade Sealing Solution for Secure Conduit Connections
The Eaton Crouse-Hinds Series SL 1/2" Sealing Locknut is a professional-grade sealing component engineered for secure rigid and IMC conduit connections. This steel construction locknut delivers reliable sealing performance and mechanical strength for commercial and industrial electrical installations where moisture protection is critical.
Key Features & Benefits
Superior Sealing Performance
- Integrated Sealing Design - Creates weatherproof seal between conduit fitting and enclosure wall
- Moisture Barrier Protection - Prevents water infiltration in outdoor and wet location applications
- Gasket Integration - Works with sealing washers to achieve NEMA 3 protection levels
- Compression Seal - Tightening action creates positive seal against enclosure threads
Durable Steel Construction
- High-Strength Steel Material - Provides superior mechanical strength and thread durability
- Corrosion Resistant Finish - Protective coating ensures long-term performance in harsh environments
- Precision Threading - Machined threads ensure proper fit with standard 1/2" rigid/IMC conduit fittings
- Professional Grade Quality - Engineered to withstand repeated installation and maintenance cycles
Installation Efficiency
- Standard Hex Design - Compatible with standard electrical wrenches and tools
- Easy Identification - Clear size marking prevents installation errors
- Compact Profile - Low-profile design minimizes space requirements in crowded enclosures
Technical Specifications
This sealing locknut features 1/2 inch trade size threading compatible with rigid and IMC conduit systems. The steel construction provides exceptional durability with dimensions of 1.12 inches length, 0.86 inches width, and 0.72 inches height. The unit weighs 0.01 pounds and meets NEC/CEC compliance standards for ordinary/non-hazardous locations. NEMA 3 rating capability when properly installed with appropriate sealing components.
Installation Process
- Thread conduit fitting through enclosure wall opening
- Position sealing washer or gasket against enclosure interior surface
- Thread sealing locknut onto conduit fitting from inside enclosure
- Tighten locknut using appropriate wrench to compress sealing element
- Verify proper sealing compression without over-tightening
- Check that conduit fitting remains properly aligned after tightening
Applications
Perfect for:
- Outdoor Electrical Enclosures - Motor control centers, disconnect switches, and junction boxes
- Wet Location Installations - Car washes, food processing facilities, and exterior mounting applications
- Industrial Control Panels - Manufacturing equipment, process control systems, and automation enclosures
- Commercial Building Systems - HVAC controls, lighting panels, and distribution equipment
- Municipal Infrastructure - Traffic control systems, street lighting, and public facility electrical systems
- Agricultural Applications - Irrigation controls, barn electrical systems, and outdoor equipment connections
- Marine and Coastal Installations - Docks, piers, and waterfront electrical systems requiring moisture protection
- Chemical Processing Facilities - Areas requiring enhanced sealing against moisture and environmental contaminants
Sealing Locknut System Benefits
Sealing locknuts provide superior protection compared to standard locknuts by creating a weatherproof barrier at the conduit entry point. This prevents moisture infiltration that can cause equipment failure, corrosion, and safety hazards. The integrated sealing design eliminates the need for additional sealing compounds while providing reliable, long-term protection that meets NEMA environmental ratings.
Why Choose Steel Construction?
Steel sealing locknuts offer exceptional mechanical strength and durability for demanding applications. The material provides superior thread engagement and resistance to loosening under vibration or thermal cycling. Steel construction ensures reliable performance in high-stress installations while maintaining the precision threading required for proper sealing compression. This makes steel sealing locknuts the preferred choice for industrial and commercial applications where long-term reliability is essential.
Manufacturer Resources
Product Specs
- Area Classification:
- Ordinary/Non-Hazardous Locations
- Conduit Type:
- Rigid/IMC
- Material:
- Steel
- Nema Rating:
- 3
- Product Height:
- .72 in
- Product Length Depth:
- 1.12 in
- Product Weight:
- .01 lb
- Product Width:
- .86 in
- Standards Type:
- NEC/CEC
- Trade Size:
- 1/2 in
- Product Type:
- Sealing Locknut
- Product Group:
- Electrical Fitting
- Department:
- Electrical
- Product Subgroup:
- Sealing Locknut
