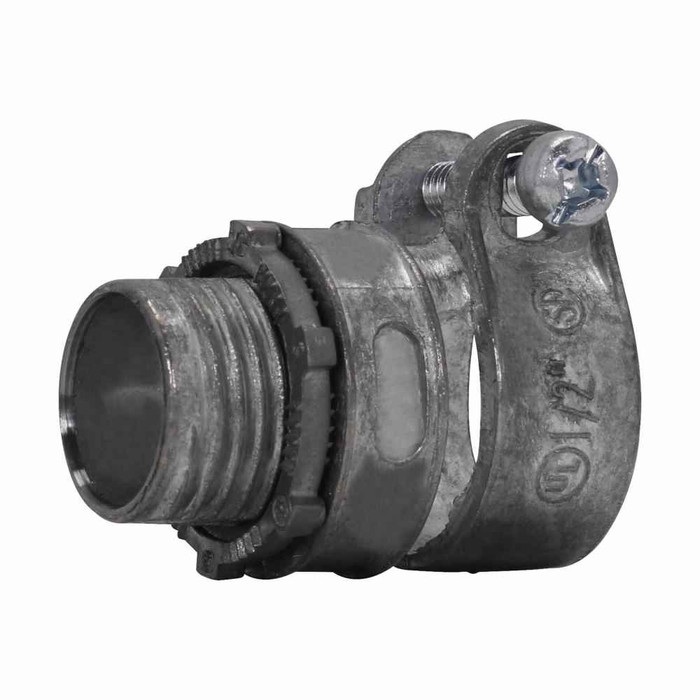

Eaton Crouse-Hinds 1/2" FMC Squeeze Type Connector, Straight, Zinc Die Cast

Eaton Crouse-Hinds 1/2" FMC Squeeze Type Connector, Straight, Non-Insulated

Professional-Grade Flexible Metal Conduit Connection with Superior Zinc Die Cast Construction

The Eaton Crouse-Hinds 1/2" FMC Squeeze Type Connector is a premium straight connector engineered for secure flexible metal conduit terminations in commercial and industrial electrical installations. This zinc die cast connector delivers exceptional dimensional stability and corrosion resistance for demanding electrical applications where reliable conduit connections are critical.

Key Features & Benefits

Superior Construction & Durability

• Zinc Die Cast Body - Precision casting ensures consistent dimensions and superior corrosion resistance compared to standard steel fittings
• Squeeze Type Design - Provides secure mechanical connection to flexible metal conduit without requiring threading or complex installation procedures
• Non-Insulated Throat - Maintains electrical continuity and grounding path through the conduit system for enhanced safety
• Straight Configuration - Enables direct conduit runs without angular changes, minimizing installation complexity

Installation Efficiency

• Tool-Free Conduit Attachment - Squeeze mechanism eliminates need for specialized threading tools or complex preparation
• Quick Connection Process - Reduces installation time compared to threaded alternatives while maintaining secure attachment
• Compact Profile - 4.95" length and 3.43" width design fits in tight spaces and crowded electrical enclosures
• Lightweight Construction - 0.08 lb weight reduces strain on conduit systems and mounting hardware

Code Compliance & Safety

• NEC/CEC Compliant - Meets National Electrical Code and Canadian Electrical Code requirements for flexible conduit connections
• Ordinary Location Rated - Approved for standard commercial and industrial environments
• Professional Grade Quality - Engineered to Eaton Crouse-Hinds standards for long-term reliability in demanding applications

Technical Specifications

This 1/2" trade size squeeze type connector features zinc die cast construction with overall dimensions of 4.95" length, 3.43" width, and 1.94" height. The straight, non-insulated design is specifically engineered for flexible metal conduit (FMC) applications in ordinary/non-hazardous locations. The connector weighs just 0.08 pounds and complies with NEC/CEC standards for professional electrical installations. The squeeze type attachment mechanism provides secure conduit connection without requiring threading or specialized tools.

Installation Process

1. Verify conduit end is cut square and free of burrs or sharp edges that could damage wiring
2. Insert flexible metal conduit into the connector body until it reaches the internal stop
3. Apply firm, even pressure to the squeeze mechanism to secure the conduit in place
4. Verify the conduit is properly seated and cannot be withdrawn with moderate pulling force
5. Thread the connector into the electrical enclosure or junction box to the appropriate depth
6. Confirm electrical continuity through the non-insulated connection for proper grounding

Applications

Perfect for:

• Commercial Buildings - Office complexes, retail spaces, and healthcare facilities requiring flexible conduit connections
• Industrial Facilities - Manufacturing plants, processing facilities, and warehouses with vibration-prone equipment
• Motor Control Centers - Flexible connections to motors, drives, and control equipment requiring movement accommodation
• Panel Connections - Electrical panels and distribution equipment where rigid conduit connections are impractical
• Equipment Terminations - HVAC units, pumps, and machinery requiring flexible conduit for vibration isolation
• Retrofit Projects - Existing installations where flexible connections simplify conduit routing challenges
• Maintenance Access - Applications requiring occasional equipment removal or repositioning
• Tight Space Installations - Confined areas where rigid conduit bending is difficult or impossible

Flexible Metal Conduit System Benefits

Flexible metal conduit systems with squeeze type connectors provide superior vibration resistance compared to rigid conduit installations. The flexible construction absorbs mechanical stress and movement while maintaining electrical continuity and protection. This makes FMC ideal for equipment connections, motor terminations, and applications where thermal expansion or mechanical vibration could stress rigid conduit systems.

Why Choose Zinc Die Cast Construction?

Zinc die cast construction offers exceptional dimensional accuracy and corrosion resistance superior to standard steel fittings. The precision casting process ensures consistent thread engagement and reliable mechanical connections. Combined with Eaton Crouse-Hinds' century of electrical innovation, this connector delivers the professional-grade performance electrical contractors demand for long-term system reliability and code compliance.
