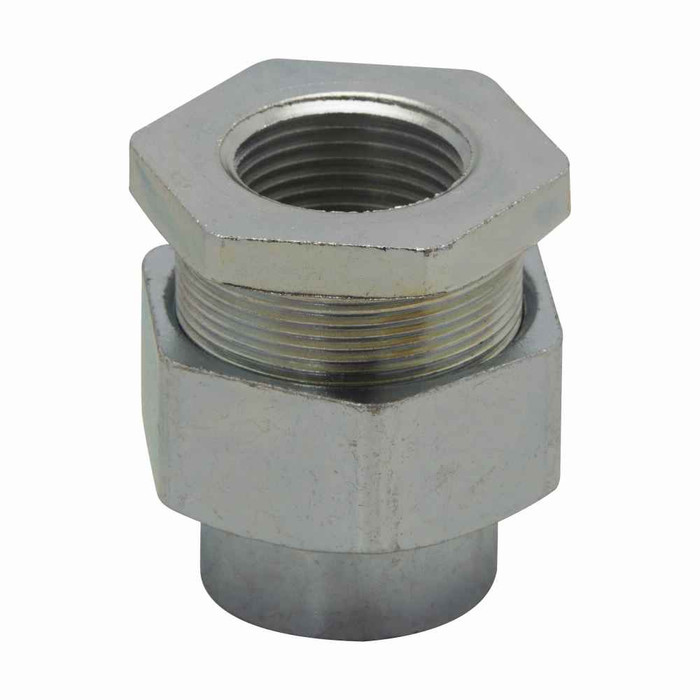

Eaton Crouse-Hinds 1/2" UNF Female Union, Rigid/IMC, Steel, Group B Rated, Class I Division 1

Eaton Crouse-Hinds 1/2" Rigid/IMC Union, Steel, Class I Division 1 Rated

Hazardous Location Union for Critical Industrial Electrical Systems

The Eaton Crouse-Hinds 1/2" Rigid/IMC Union is a professional-grade hazardous location fitting engineered for Class I, Division 1 environments. This steel union delivers reliable conduit connections for industrial electrical installations where explosive atmospheres may be present, providing the safety and durability demanded by electrical contractors in critical applications.

Key Features & Benefits

Hazardous Location Safety

• Class I, Division 1 Rating - Certified for use in locations where ignitable concentrations of flammable gases or vapors may exist under normal operating conditions
• Group B Rated - Approved for hydrogen and other highly volatile gas environments requiring maximum safety standards
• NEC/CEC Compliant - Meets all National Electrical Code and Canadian Electrical Code requirements for hazardous location installations
• Explosion-Proof Design - Engineered to contain internal explosions and prevent ignition of surrounding hazardous atmospheres

Professional Construction

• Steel Construction - Provides superior strength and durability for demanding industrial environments
• Female Threading - Precision-machined threads ensure secure, long-lasting connections with rigid and IMC conduit
• Compact Design - 1.84" length with 1.56" width provides space-efficient installation in tight electrical enclosures
• Lightweight Profile - At just 0.42 pounds, reduces installation fatigue while maintaining structural integrity

Installation Efficiency

• Union Design - Allows for easy disconnection and reconnection of conduit runs without rewiring
• 1/2" Trade Size - Compatible with standard 1/2" rigid and IMC conduit systems
• Precision Threading - Smooth installation with proper thread engagement for reliable sealing
• Maintenance Access - Enables system modifications and repairs without extensive conduit replacement

Technical Specifications

This 1/2" trade size union features steel construction with female threading on both ends, designed specifically for rigid and IMC conduit connections. The unit measures 1.84" in length with a 1.56" width and height profile, weighing 0.42 pounds for easy handling during installation. Class I, Division 1 and Group B ratings ensure compliance with the most stringent hazardous location requirements, while NEC/CEC compliance guarantees code-compliant installations across North America.

Installation Process

1. Verify conduit ends are properly cut, deburred, and threaded to manufacturer specifications
2. Apply appropriate thread sealant rated for hazardous locations to male conduit threads
3. Thread one conduit end into the first half of the union, ensuring full thread engagement
4. Thread the second conduit end into the opposite half of the union
5. Tighten the union coupling to create a secure, explosion-proof seal
6. Verify proper alignment and secure mounting of the complete conduit run

Applications

Perfect for:

• Petrochemical Facilities - Refineries, chemical processing plants, and fuel storage areas
• Industrial Manufacturing - Paint spray booths, solvent handling areas, and chemical production lines
• Oil and Gas Operations - Drilling platforms, pumping stations, and pipeline facilities
• Pharmaceutical Manufacturing - Clean rooms and areas with volatile chemical processes
• Grain Handling Facilities - Elevators, mills, and storage areas with combustible dust
• Aircraft Hangars - Fuel handling areas and maintenance facilities
• Marine Applications - Ship engine rooms and fuel storage compartments
• Laboratory Environments - Research facilities handling flammable gases and vapors

Hazardous Location Union Benefits

Unions are essential components in hazardous location electrical systems, providing the flexibility needed for maintenance and system modifications while maintaining explosion-proof integrity. Unlike permanent conduit connections, unions allow electrical contractors to disconnect conduit runs for equipment service, system upgrades, or emergency repairs without compromising the safety ratings required in classified environments.

Why Choose Class I, Division 1 Rating?

Class I, Division 1 represents the highest level of hazardous location protection, designed for environments where ignitable concentrations of flammable gases or vapors exist under normal operating conditions. This Eaton Crouse-Hinds union's Group B rating extends this protection to the most challenging applications involving hydrogen and other highly volatile substances, making it the preferred choice for electrical professionals working in the most demanding industrial environments where safety cannot be compromised.
