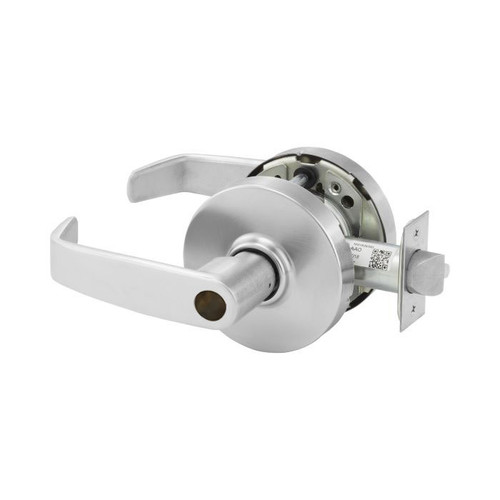

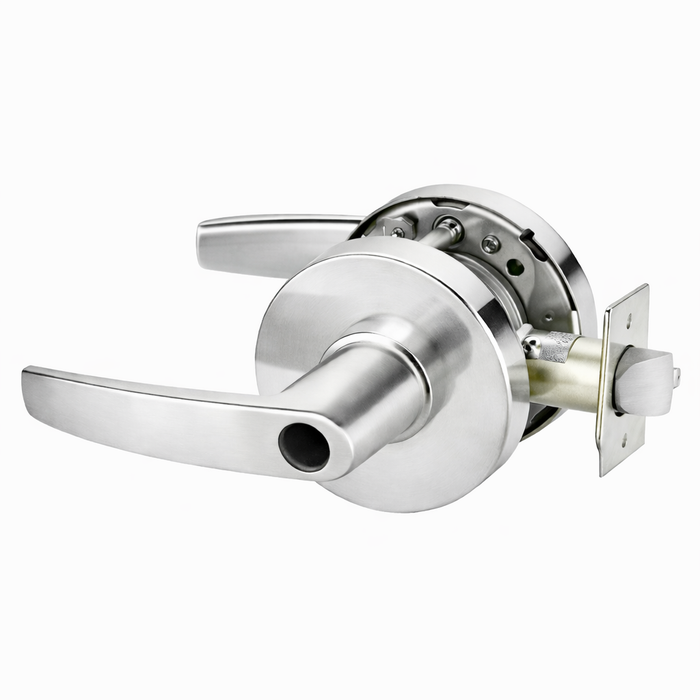

Sargent 10XG04-LC Grade 1 Storeroom/Closet Cylindrical Lock with Heavy Duty Construction

Sargent 10XG04-LC Grade 1 Storeroom/Closet Cylindrical Lock with Heavy Duty Construction

(No reviews yet) Write a Review

Model: 10XG04-LB-26D-LC
From the 10X Line Series Collection
$1,022.09
$514.16
Selected Finish is
Selected Roses is
Selected Lever is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,022.09
$514.16
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent 10X Line Grade 1 Storeroom/Closet Cylindrical Lock with Heavy Duty Construction

Ultra-Heavy Duty Grade 1 Cylindrical Lock for High-Traffic Commercial Applications

The Sargent 10X Line Grade 1 Storeroom/Closet Cylindrical Lock delivers exceptional security and durability that exceeds ANSI/BHMA Grade 1 standards by up to 20 times. This heavy-duty cylindrical lock withstands more than 3,100 in-lb locked lever torque and 1,600 lbs offset lever pull while maintaining reliable operation through 20 million cycles. Designed for 1 3/8" to 2" door thickness with standard 2 3/4" backset, this lock features innovative push/turn button design and supports all cylinder formats including interchangeable core systems.

Professional Features & Benefits

  • Door Thickness Compatibility: Accommodates door thickness from 1 3/8" to 2" with backset options from 2 3/8" to 5" for versatile installation requirements.
  • Extreme Durability Testing: Completed 20 million cycle UL testing (Verification ID: V584148) for long-term reliability in demanding commercial environments.
  • Heavy-Duty Construction: Heavy-duty lockbody design provides exceptional durability for commercial applications with superior torque resistance.
  • Superior Load Capacity: Withstands 1,600 lbs offset lever pull (8 times ANSI/BHMA requirements) and more than 3,100 in-lb locked lever torque for enhanced security.
  • Universal Cylinder Compatibility: Lockbody design supports all cylinder formats from fixed to interchangeable core and integrates with all SARGENT Key Systems.
  • ANSI/BHMA Grade 1 Certification: Exceeds Grade 1 standards by up to 20 times for superior performance in high-traffic commercial applications.
  • Vandal-Resistant Design: Prohibits entry after more than 100 vertical impacts (20 times ANSI/BHMA requirements) and features innovative push/turn button design that prevents damage from door stops.
  • Manufacturer Warranty: 10-year limited warranty with 2-year coverage for electrical components provides long-term protection and confidence.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness (1 3/8" to 2"), backset depth (2 3/8" to 5"), and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent 10X Line cylindrical locks deliver professional-grade reliability with heavy-duty construction rated for 20 million cycles and tested to exceed Grade 1 standards by up to 20 times. Comprehensive 10-year limited warranty with 2-year electrical component coverage ensures long-term performance protection. Engineered for demanding commercial applications where dependable security and vandal resistance are essential.

Product Specs

Series:
10X Line Series
Grade:
Grade 1
Keyed Function:
Single Cylinder
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Subcategory:
Bored Locksets
Keyed:
Yes
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Lock Function:
Storeroom/Closet
Product Type:
Leversets
Duty Level:
Heavy Duty
Handle Type:
Lever
Product Attribute:
Cylindrical Locks
Product Function:
Storeroom
Door Hand Direction:
Non-Handed
Product Category:
Mechanical Locks
Collection:
10X Line Series
Department:
Door Hardware

Sargent 10XG04-LB-26D-LC – Frequently Asked Questions

1) Does the Sargent 10XG04 storeroom lock come with a cylinder?
No. The 10XG04-LC is supplied less cylinder, so you order the cylinder separately. The lockbody accepts all cylinder formats, from fixed conventional to interchangeable core, and works with any SARGENT key system, which is why it ships this way: the shop keys it to whatever system the building already runs on.
2) How does the storeroom function on the Sargent 10XG04 actually work day to day?
Outside lever is always locked. Key retracts the latch for entry, and the lever unlocks only while the key is turned, so the door re-secures itself every time it closes. Inside lever always retracts the latch for free egress. That is the right function for janitor closets, mechanical rooms, IT and storage, where you never want the door left unlocked by accident. If you need staff to be able to leave the door unlocked between visits, an entry/office function is the better pick.
3) Is the Sargent 10X Line tough enough for a high-abuse door like a school corridor or a loading dock?
That is what it is built for. The 10X Line is tested to 20 million cycles under UL (Verification ID V584148), holds more than 3,100 in-lb of locked lever torque and 1,600 lbs of offset lever pull, and blocks entry after more than 100 vertical impacts. The push/turn button is designed so a door stop striking the lock does not damage it. For comparison in ANSI terms, Grade 1 is the top commercial rating, and this exceeds those minimums by up to 20 times on the published figures.
4) What is a Grade 2 storeroom lever alternative to the Sargent 10XG04-LC?
The Hager 2580 is a Grade 2 storeroom cylindrical lock with the Withnell lever and a 1-3/8 inch to 2 inch door thickness range, and the Cal-Royal AG05 is a Grade 2 storeroom lever lockset with a deadlocking latchbolt for 1-3/8 inch to 1-3/4 inch doors. Both keep the storeroom function - key retracts the latch, outside lever always locked - while the Sargent 10XG04-LC is an ANSI/BHMA Grade 1 heavy duty cylindrical lock. Note the Cal-Royal tops out at 1-3/4 inch doors, so on a 2 inch door the Hager or the Sargent is the fit.
5) Which Grade 1 cylindrical lever should I use if the door does not need to be keyed?
For an unkeyed opening, the Falcon K101 is a Grade 1 passage cylindrical lock with non-handed levers, fire rated, covering 1-3/8 inch to 2-1/4 inch doors, and the Corbin Russwin CL3110 is a Grade 1 vandal resistant passage/closet lever, fire rated, for 1-3/4 inch to 2 inch doors. The Sargent 10XG04-LC is keyed with a storeroom/closet function, so it is the wrong pick where the latch should always retract from both sides.
6) I need classroom function instead of storeroom on a Grade 1 lever - what should I order?
The Dexter C1000 is offered in Grade 1 classroom with a clutching keyed lever for 1-3/8 inch to 1-3/4 inch doors, and in Grade 1 classroom security for the same door range when both sides need to be locked by key. The Sargent 10XG04-LC is built as a storeroom/closet lock, where the outside lever stays locked and the key only retracts the latch, so it will not give a teacher the ability to lock and unlock the outside lever from the corridor.
7) Do I need to specify handing for the Sargent 10X Line leverset?
No handing to call out. The 10X Line cylindrical lock is non-handed, so one part covers left and right hand openings and you do not have to survey doors before ordering. That matters on a fleet order: a property manager standardizing a building buys one SKU per finish and lever, not two.
8) What lever and finish combinations can I get on the Sargent 10XG04?
Three lever styles, B, L and P, each on the L rose, and three finishes: 10BE dark oxidized satin bronze, 26D satin chrome over nickel, and BSP black suede powder coat. Every lever is offered in every one of those three finishes, so nine combinations total. 26D is the standard institutional finish if you are matching existing commercial hardware; BSP is the one to pick for a black-hardware spec.
9) What is a good Grade 1 storeroom alternative to the Sargent 10X Line, and what is a step down?
If you want to stay Grade 1 heavy duty but on another brand, the Dexter C1000 Series covers 1-3/8 to 2 inch doors in Grade 1 and runs the same family of functions, and Falcon's K Series is Grade 1 heavy duty with a 1-3/8 to 2-1/4 inch thickness range. For a lighter-budget storeroom lock, the Cal-Royal AG05 and the Hager 2580 are both Grade 2 storeroom levers, fine for lower-traffic back-of-house doors but not rated for the abuse the 10X Line is tested to. Don't substitute a passage or dummy lever such as the BEST 9K 1DT; those have no keyed security at all.
10) Can the Sargent 10X Line storeroom lock be electrified for access control?
The 10X Line bored lock platform does include an electrified version, and Sargent publishes separate installation instructions for the electrified bored lock alongside the standard cylindrical lockset instructions. The 10XG04-LC as configured here is the mechanical storeroom lock, keyed, single cylinder. If you need an electrified opening tied to a card reader, specify the electrified variant of the line rather than this one. A comparable electrified cylindrical option from another brand is the Corbin Russwin CL33903 fail safe lever at 12VAC/DC for 1-3/4 to 2 inch doors.
11) Is a Grade 2 entrance lever like the Hager 2525 or Falcon B511 a substitute for the Sargent 10XG04-LC?
No - those are a different function. The Hager 2525 is a Grade 2 entrance lock for 1-3/8 inch to 2 inch doors and the Falcon B511CP6D is a medium duty Grade 2 entry/office lever, both of which let an occupant push or turn a button to leave the outside lever unlocked. The Sargent 10XG04-LC is a Grade 1 storeroom/closet lock, where the outside lever is permanently locked and entry is by key only, which is what a supply room or electrical closet is normally specified for.
12) What matching dummy lever pairs with a Grade 1 cylindrical lockset on an inactive leaf?
For an inactive leaf on a Grade 1 opening, the BEST 9K Series 1DT is a Grade 1 heavy duty non-keyed single dummy trim cylindrical lever, and the Accentra 455LN Augusta is a Grade 1 heavy duty single dummy cylindrical lever from the 5400 Series. The Sargent 10XG04-LC is the keyed storeroom lock for the active leaf, so pairing it with a dummy of matching duty level keeps the pair consistent in feel.
13) Which alternative should I use on a patient room or utility door that needs asylum function?
The Dexter C1000 asylum version (F87) is a Grade 1 cylindrical lock for 1-3/8 inch to 2 inch doors, keyed both sides, and the Arrow MK33-BD-CS is a heavy duty Grade 2 asylum lock with a ball knob and a conventional cylinder in the Schlage C keyway. The Sargent 10XG04-LC is single cylinder storeroom, keyed from the outside only, so it will not secure the room from the inside the way an asylum function does.
14) Can I use a residential-grade lever like the Kwikset Breton on a commercial storeroom door?
Not for the same duty. The Kwikset 200BRNL Breton is a Grade 3 passage lever for 1-3/8 inch to 1-3/4 inch doors and the Callan Artino is a Grade 3 entrance leverset - both are lighter-duty products aimed at residential openings. The Sargent 10XG04-LC is a Grade 1 heavy duty commercial cylindrical lock, which is what a high-traffic storeroom in an office, school, or healthcare facility is normally specified to.
15) Is there a Grade 1 lever from another maker for a door that is not keyed but needs to match heavy commercial duty?
The Falcon T101 is a Grade 1 heavy duty cylindrical passage lever with pressure release technology in the T Series, and the Design Hardware X75 is a Grade 1 passage lever lockset with a flat lever sized for 1-3/4 inch doors. Both are unkeyed passage devices; the Sargent 10XG04-LC is a keyed storeroom/closet lock with a lever handle, non-handed.
