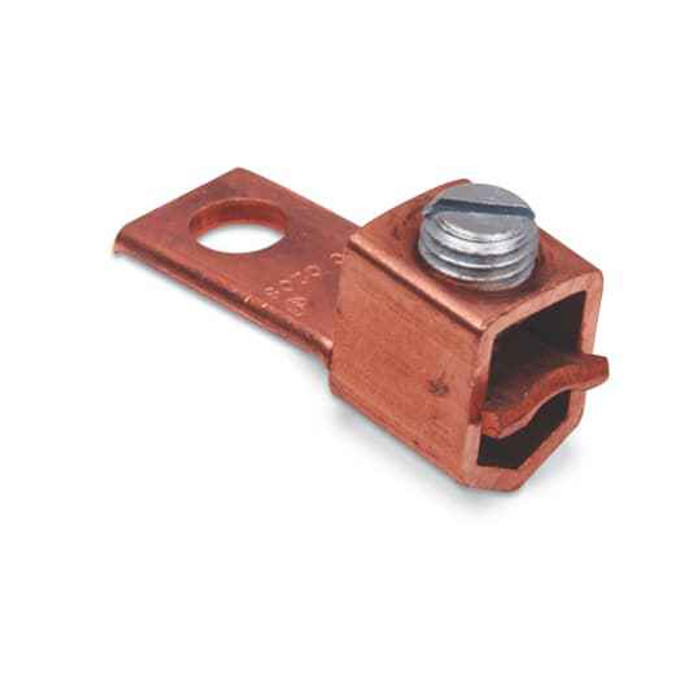

CU 1CNDTR 1HL MNT TANG 4STR-3/0STR
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Group:
- Wire & Cable Management
- Product Type:
- Copper Connectors
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Type2:
- Mechanical connectors
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Material:
- Copper
Blackburn STC3104 – Frequently Asked Questions
1) What wire size range does the Blackburn STC3104 terminal accept?
The STC3104 is rated for stranded copper conductors from 4 STR through 3/0 STR. One conductor per connector, so if you need to land two cables you need two lugs or a two-conductor body.
2) Is the STC3104 a one-hole or two-hole lug?
One-hole mount. It lands on a single bolt or stud, which is the usual prep for panel and equipment ground bars. If your busbar is drilled for two-hole NEMA spacing, this is not the right part.
3) Is the Blackburn STC3104 a compression lug or a mechanical set-screw connector?
Mechanical. It terminates with a set screw, so you do not need a hydraulic crimper or dies to install it, just the correct hex key or driver and a torque check. That makes it practical for field service and retrofit work where a crimp tool is not on the truck.
4) Can I use the STC3104 on aluminum conductors?
It is a copper connector, listed for copper. For aluminum or dual-rated AL/CU service, choose a connector marked AL9CU instead.
5) Is the Blackburn STC3104 UL listed for an inspected installation?
Yes, it carries UL file E9809. That is the reference an inspector or a spec engineer will want when the lug is used on a service ground or equipment bonding connection.
6) What does the tang on the STC3104 mean for how it mounts?
The tang is the flat mounting foot with the bolt hole, coming off the barrel that the conductor enters. You bolt the tang flat to the bar, pad, or equipment lug pad and run the cable in from the barrel end, so allow room for the cable bend radius behind the mounting point.
7) Is the Blackburn STC3104 sold individually or in a bag of multiples?
Sold each, so order one per conductor termination. On a three-phase feeder plus neutral you would need four.
8) Where is the Blackburn STC3104 made? I need country of origin for a government job.
Country of origin is Mexico. That is the figure to cite on Buy American or trade-compliance paperwork for public bid work.
