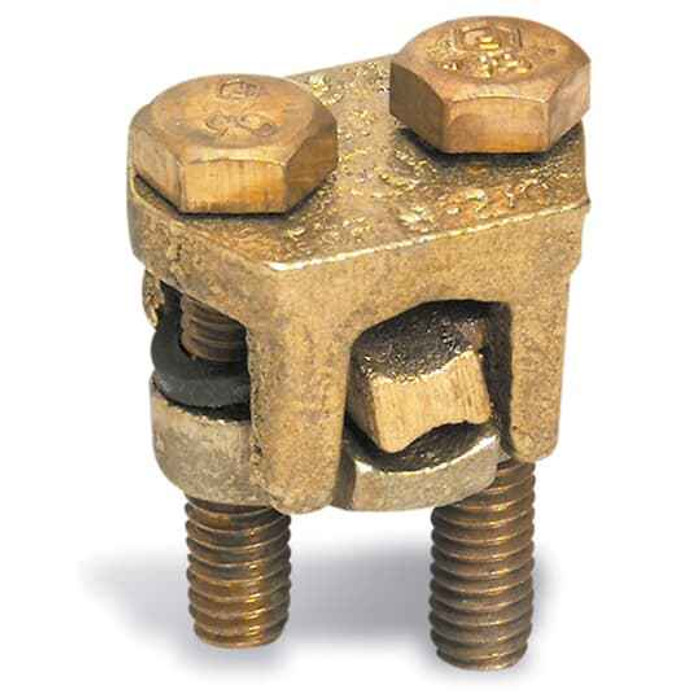

CU 2BLT CONN W/SPCR 2-2/0 1/2B
Manufacturer Resources
Product Specs
- Country Of Origin:
- India (IN)
- Outside Diameter:
- 1/2 in
- Product Group:
- Wire & Cable Management
- Product Type:
- Two-Bolt Connector
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Type2:
- Mechanical connectors
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Material:
- Copper
Blackburn 2B20W – Frequently Asked Questions
1) Is the Blackburn 2B20W copper or aluminum, and can I use it on aluminum conductors?
It is a copper-bodied connector. Use it on copper conductors. If your run is aluminum or you are mixing aluminum to copper, you want a dual-rated AL/CU mechanical connector instead, not this one.
2) Is the Blackburn 2B20W UL listed?
Yes. The 2B20W carries UL file E9809. That is the reference an inspector or a spec writer will want cited on a grounding or bonding submittal.
3) What does the 1/2 inch spec on the Blackburn 2B20W two-bolt connector refer to?
1/2 inch is the outside diameter called out for the 2B20W, matching the "1/2B" in the part number, which is the bolt/stud size the connector lands on. Check the diameter of the ground rod, bus stud, or bolt you are tapping to before ordering, because a mismatch there is the usual reason one of these gets sent back.
4) What is the spacer on the Blackburn 2B20W connector for?
The 2B20W is supplied with a spacer (the "W/SPCR" in the part description). The spacer sits in the conductor channel so the clamp bears correctly on smaller conductors within the 2 to 2/0 range instead of bottoming out. Leave it in for the smaller sizes, remove it for the larger ones.
5) Should I use a two-bolt mechanical connector like the 2B20W or an exothermic/compression connection?
A two-bolt mechanical connector like the 2B20W is the right call when the connection needs to be reusable, inspectable, or made without special tooling. It installs with a wrench. Compression lugs and exothermic welds give a permanent, non-reversible joint and need a die tool or a mold, so they suit direct-buried and irreversible grounding work better. For an accessible bond you can open and re-terminate later, the mechanical connector is the practical choice.
6) Do I order the Blackburn 2B20W individually or by the box?
It sells each, so one connector per unit ordered. Count your taps and order that quantity; there is no carton multiple to work around.
