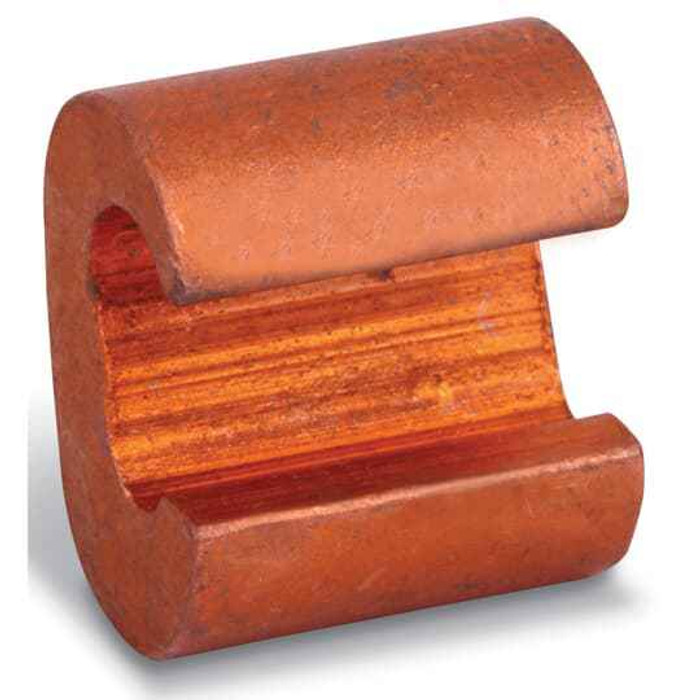

CU COMPCONN C-CRIMP 1/0-2/0 No8-No2
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Group:
- Wire & Cable Management
- Product Type:
- C-Tap
- Replacement Product Id New :
- 7TAA269830R0000
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Sub Brand Label:
- Blackburn
- Type2:
- Electrical taps
- Department:
- Electrical
- Product Subgroup:
- Tap Connectors
- Product Material:
- Copper
Blackburn BC202 – Frequently Asked Questions
1) What wire sizes does the Blackburn BC202 C-tap accept on the run and the tap?
The BC202 is sized for a 1/0 to 2/0 main run conductor with a No. 8 through No. 2 tap. Both sides are copper, so it's for copper-to-copper connections only, not aluminum.
2) Is the Blackburn BC202 a crimp connector or a bolted tap?
It's a compression (crimp) C-tap. The C-shaped copper body is crimped over the run and tap conductors with a hydraulic or battery crimping tool and the matching die, so there is no bolt to torque and no retightening later.
3) Can I use the BC202 C-tap on aluminum conductors?
No. The BC202 is a copper-bodied connector rated for copper conductors. For aluminum or mixed aluminum-to-copper taps you need a connector specifically listed AL9CU or for aluminum, not this one.
4) My run conductor is a #4 copper. Will the BC202 work?
No. The BC202's run range starts at 1/0. On a #4 main you need a smaller C-tap sized for that conductor; going oversize leaves the crimp loose and out of listing.
5) My drawing calls for part 7TAA269830R0000. Is that the same as the BC202?
Yes. 7TAA269830R0000 is the current replacement product number for the Blackburn BC202 copper C-tap, so specs written against either number land on the same connector.
6) Does the BC202 come in a box or is it sold one at a time?
Sold each, so you can order the exact count for the taps on the job rather than a full carton.
7) Is the Blackburn BC202 made in the USA for a Buy American job?
Country of origin on the BC202 copper C-tap is the United States, which is what procurement on federal and institutional work usually needs documented.
